Section 09 PROPULSION
Subsection 01 (JET PUMP)
F00J0DA
1

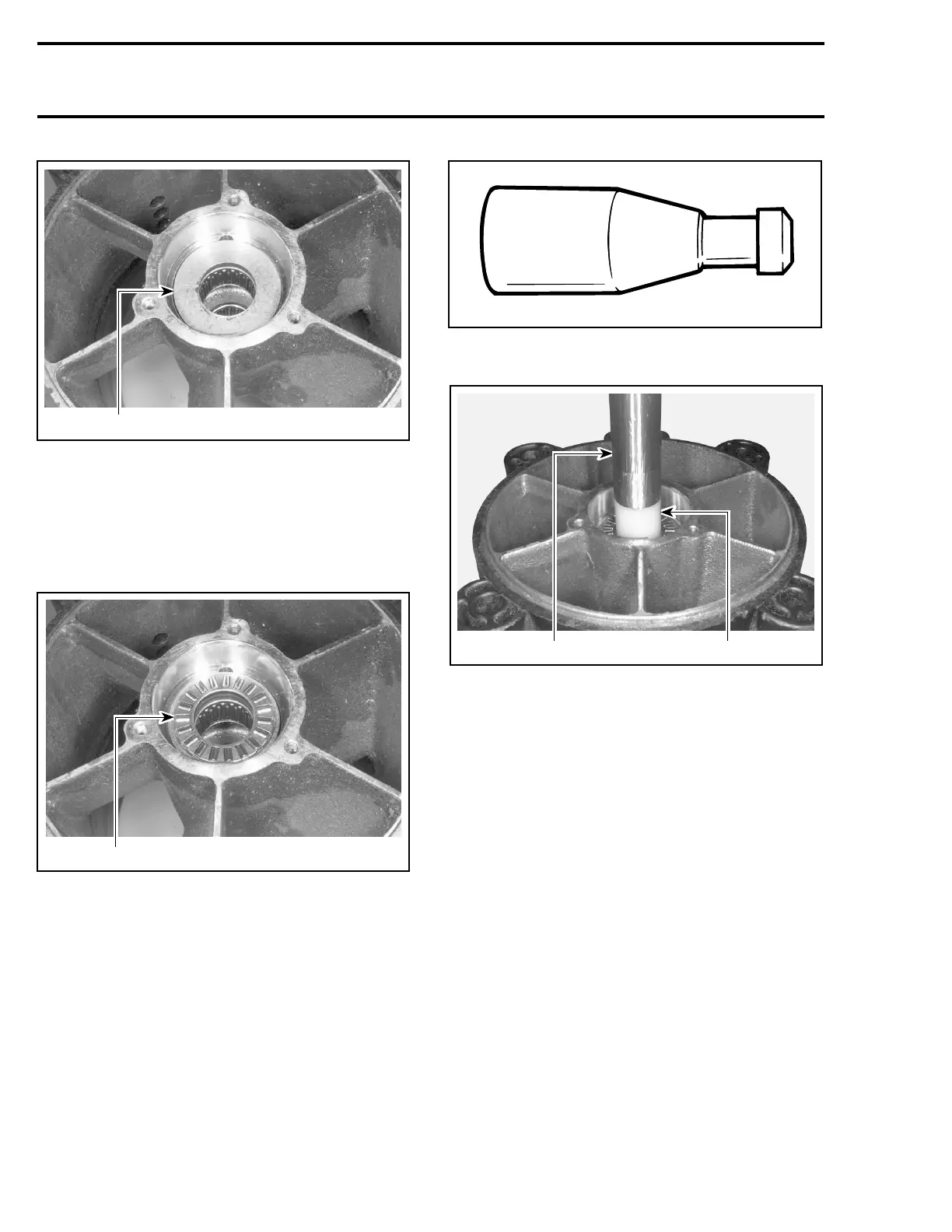

1. Thrust washer properly installed in stator seat
Thrust Bearing
Apply jet pump synthetic oil (P/N 293 600 011) on
both sides of thrust bearing.
Position thrust bearing no. 15 on thrust washer
no. 14.
F00J0EA
1
1. Thrust bearing on top of thrust washer
Impeller Shaft
To prevent seal lip damage when inserting im-
peller shaft no. 13, use the impeller shaft guide
(P/N 295 000 002).
F01J1OA
Insert tool onto shaft end then carefully install
shaft in jet pump housing.
F00J0FA
1 2
1. Impeller shaft
2. Impeller shaft guide
NOTE: If jet pump housing rest against a table,
raise it slightly to allow complete shaft insertion
with the shaft guide.
Remove shaft guide.
Impeller
Apply Loctite 767 (antiseize lubricant) (P/N 293
800 070) on threads of impeller shaft no. 13.
246 smr2005-062
