Section 01 MAINTENANCE
Subsection 03 (STORAGE PROCEDURES)
F15E01A
1

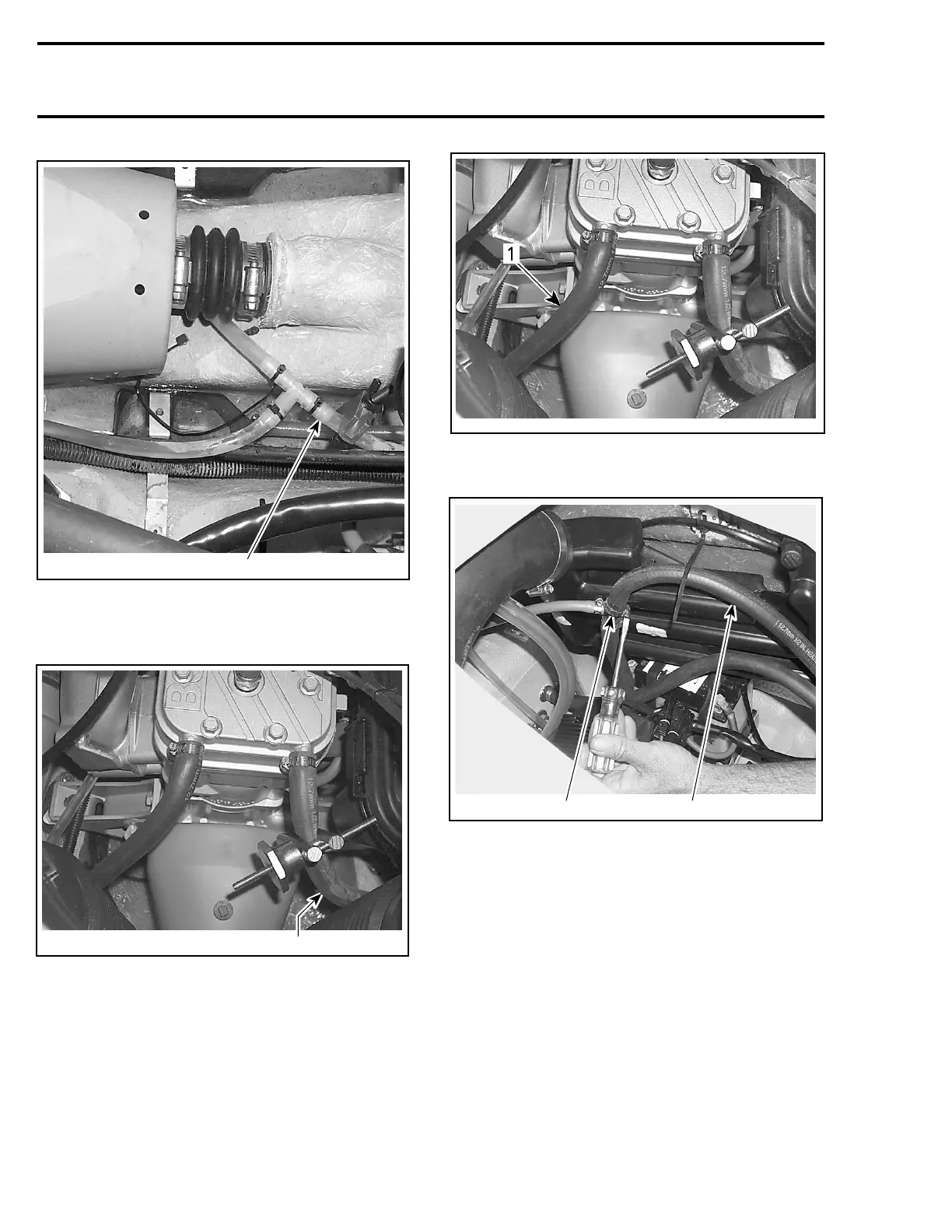

1. Engine drain hose
Block the engine water outlet hose with a large
hose pincher (P/N 529 032 500).
F17E01A
1
1. Engine water outlet hose
Disconnect the engine water inlet hose.
smr05-044-001_a
1. Engine water inlet hose
Disconnect hose just above T-fitting as shown.
F15E02A
21
TYPICAL
1. Hose connecting to cylinder head inlet fitting
2. Disconnect hose above T-fitting
Install a large hose pincher (P/N 529 032 500) just
below T-fitting.
Pour approximately 300 mL (10 oz) of antifreeze in
the water regulator valve supply hose to allow an-
tifreeze flowing through the valve and into muffler
to protect them.
14 smr2005-044
To Next Page
