DMG 3200/3100/3000 – User Manual
Page 13 (306)
2 Installation and Safety
2.1 Installation and Safety
The unit is designed to offer operators reliability and flexibility. It consists of a chassis in which a
number of modules can be installed. To cater to specific system requirements, the chassis can be
configured to host functional modules best suited for a given scenario.
Sencore products can be delivered in different chassis variations - 1RU chassis and a 4RU
chassis. The product models DMG 3000 and DMG 3200 represents the 4RU chassis, while the
product models DMG 3100 and DMG 3200 represents 1RU chassis.
2.1.1 The 4RU Chassis
The 4RU chassis consists of a total of 18 slots all of which can host functional modules. Slot
number 0 is dedicated to host the switch module and slot number 17 can only host multi-slot input
modules. Alternatively a second switch module can be placed in slot 17 for some redundancy
configurations. The remaining 16 slots are identical and can be occupied by any of the functional
modules available. A 4RU chassis including a mandatory switch module, power supply
connectors, and module slots is shown in Figure 2.1 and 2.2. Power modules and fan modules
are inserted from the back (figure 2.3 showing the DMG 3200 4RU).

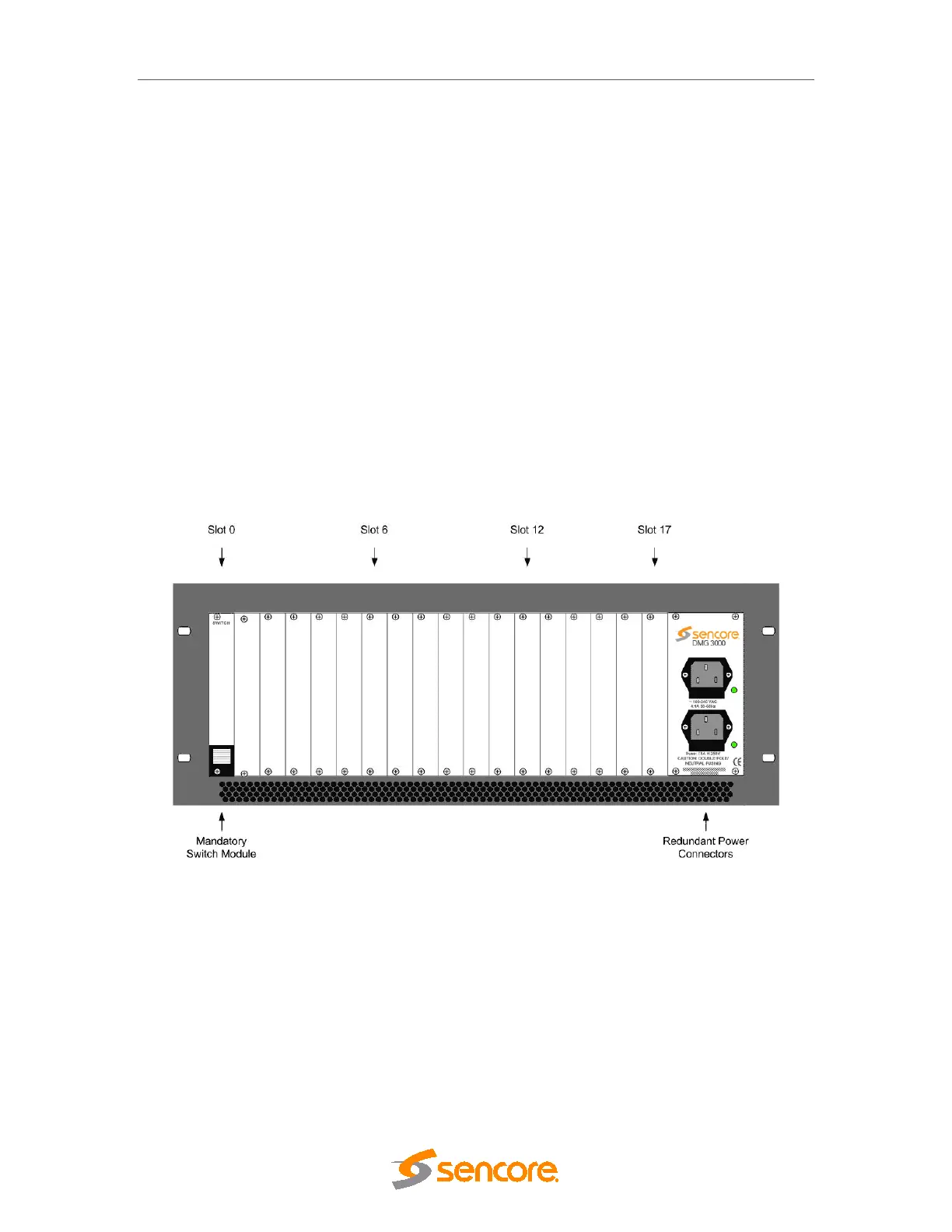

Figure 2.1 – 4RU chassis (DMG 3000) with power connectors, switch module and available
slots.
