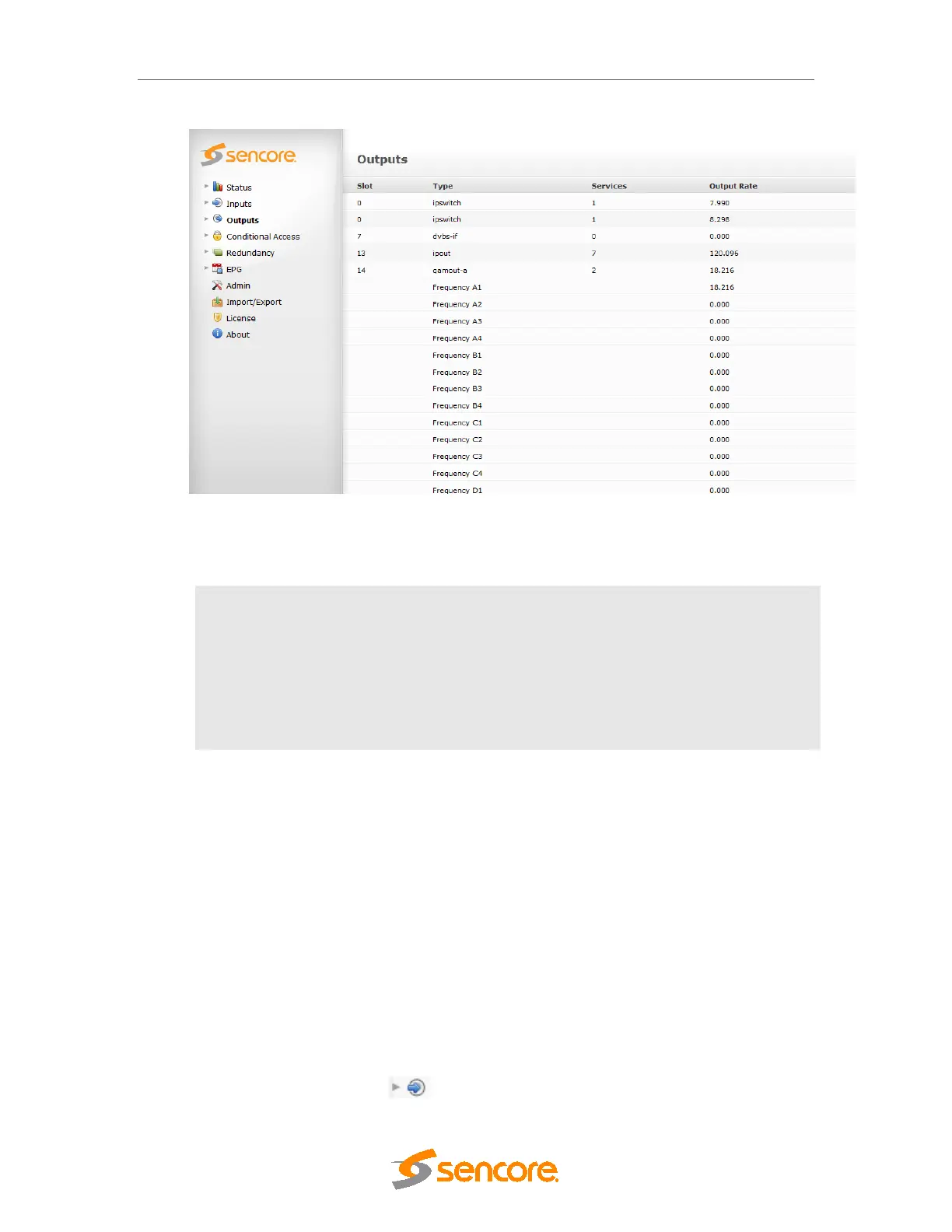

Figure 7.1 - Outputs View
The following information is available from the Outputs view:
Slot
Slot position in the chassis
Type
Type of output module / output port
Services
Number of services assigned to the output module
Output Rate [Mbps]
Total data rate of all configured services - the rate shown includes all
overhead data such as IP headers.
Creating an output transport stream is done via the Outputs view present for each output
module. Before an output can be created, the input module(s) must be configured correctly
such that the list of input services is present.
The unit supports two types of output streams: Multiple Program Transport Stream (MPTS) and
Single Program Transport Stream (SPTS). MPTS is available for all MPEG output modules
while SPTS is only available for IP output modules in addition to MPTS.
MPTSs are always Constant Bit Rate (CBR) streams. By default SPTSs are Variable Bit Rate
(VBR), i.e. the same as the input source, but can be configured to be CBR.
7.1 Input Stream Selection
When you select an output module, you will be presented with a list of Inputs. This will consist of
ports (for MPTS inputs) or services (IP SPTS inputs). In order to expand the services in an
MPTS input, you can click the symbol. In order to output a service from the available
