DMG 3200/3100/3000 – User Manual
Page 187 (306)

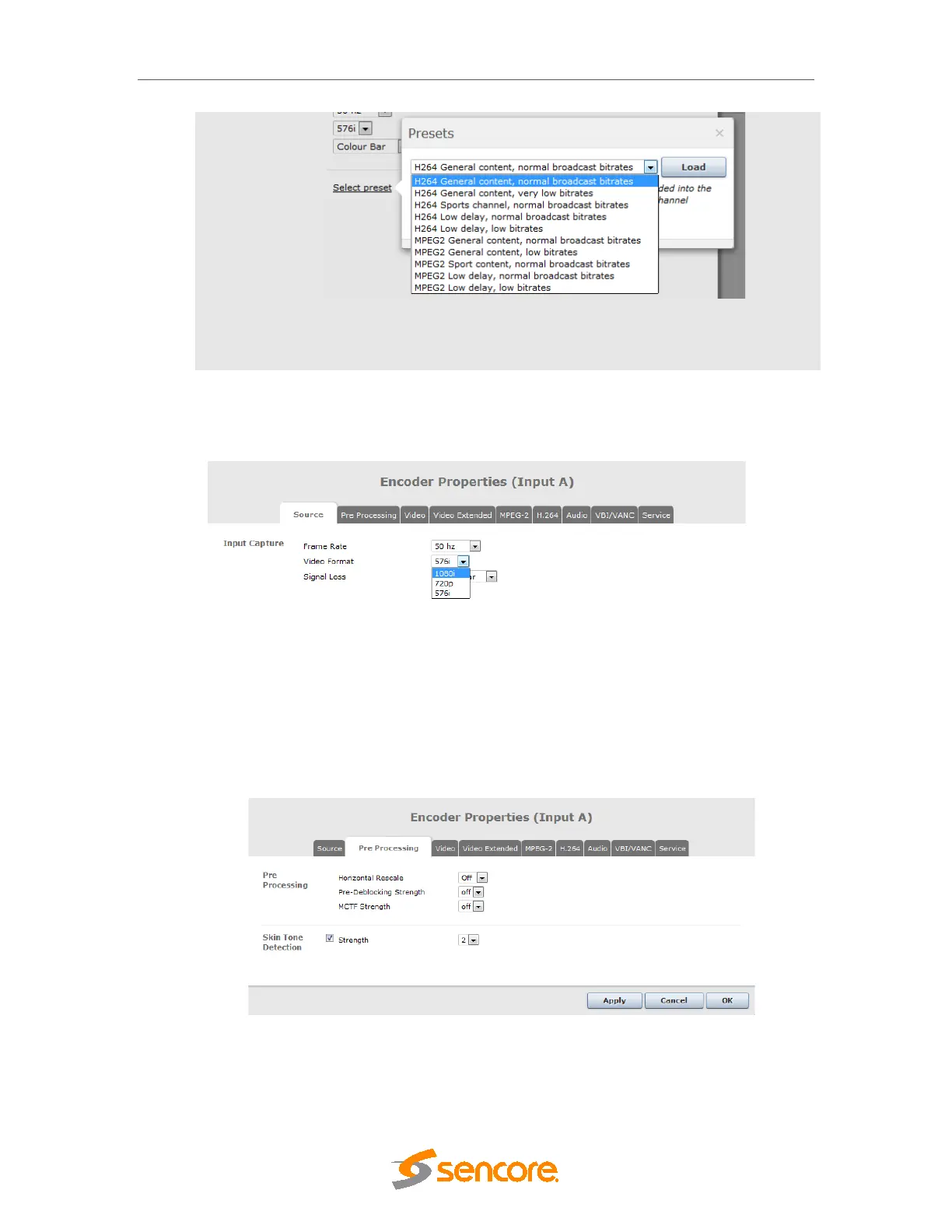

These Presets are applied as a template in the sense that even after a
preset has been chosen; the user can access and alter all the
parameters as normal.
The SDI input format must be explicitly configured, it is not auto detected. The encoder does
not support any video format conversion. The input format must match the encoding format.
Figure 8.4 -Encoder Frame Rates
8.2.2 Pre Processing Parameters
Pre-processing is a collective term covering all processing of the video signal done prior to the
encoding process. The purpose of pre-processing is twofold.
• Make the video signal easier to encode.
• Analyze the video and give advance information to the encoding process
Figure 8.5 – Encoder Pre Processing parameters
