5.2.3 Input PID Analysis
The PID view lists all PIDs detected for a given port. This list is accessible via the PIDs column
in the top pane.

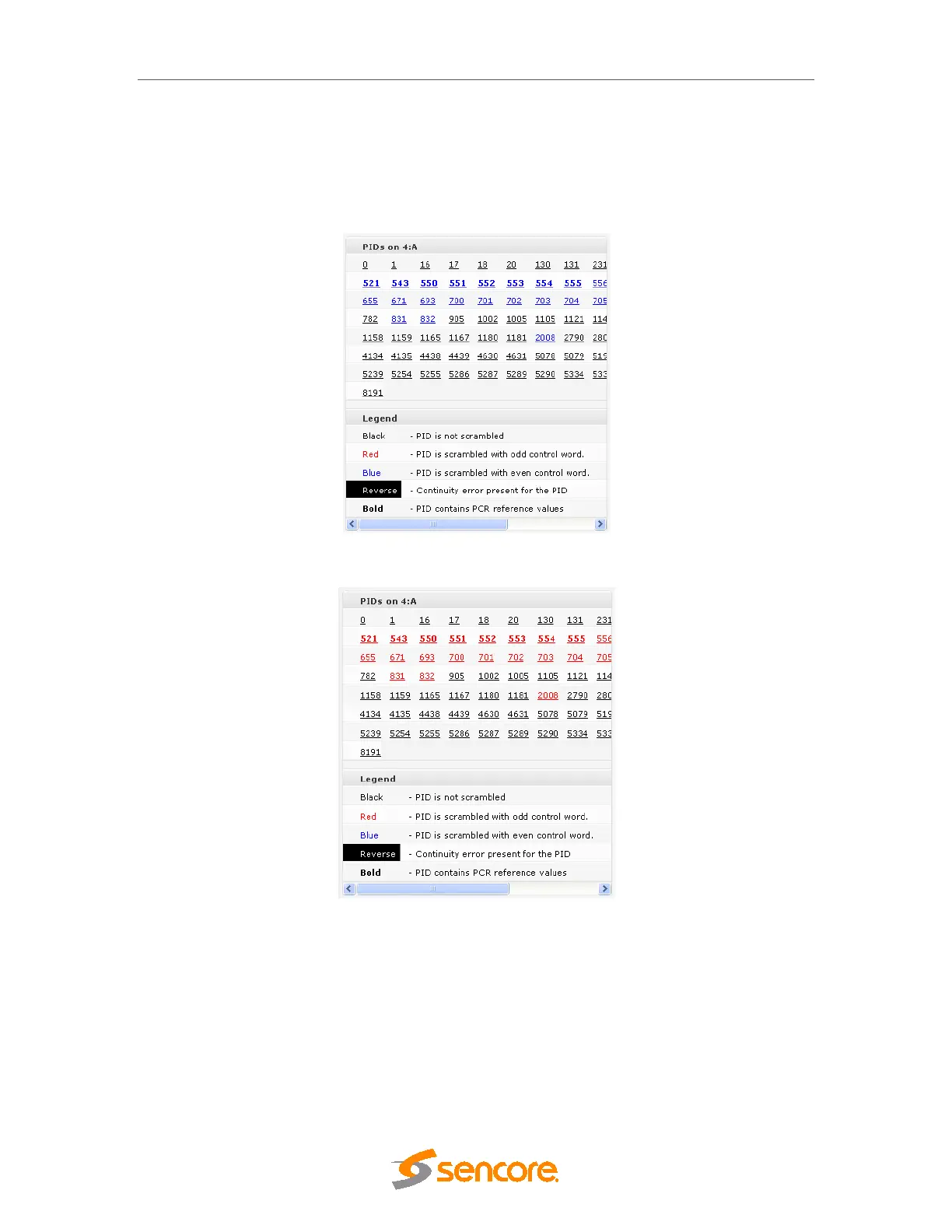

Figure 5.5 - PID Scrambled with Even Control Word
Figure 5.6 - PID Scrambled with Odd Control Word
For an input containing scrambled services the color of the scrambled PIDs will toggle between
Blue and Red as the ODD/EVEN bit toggles.
In Figure 5.5 and Figure 5.6 we can for example see that PID 521:
• is scrambled as it is colored,
• contains PCR as it is bold, and
