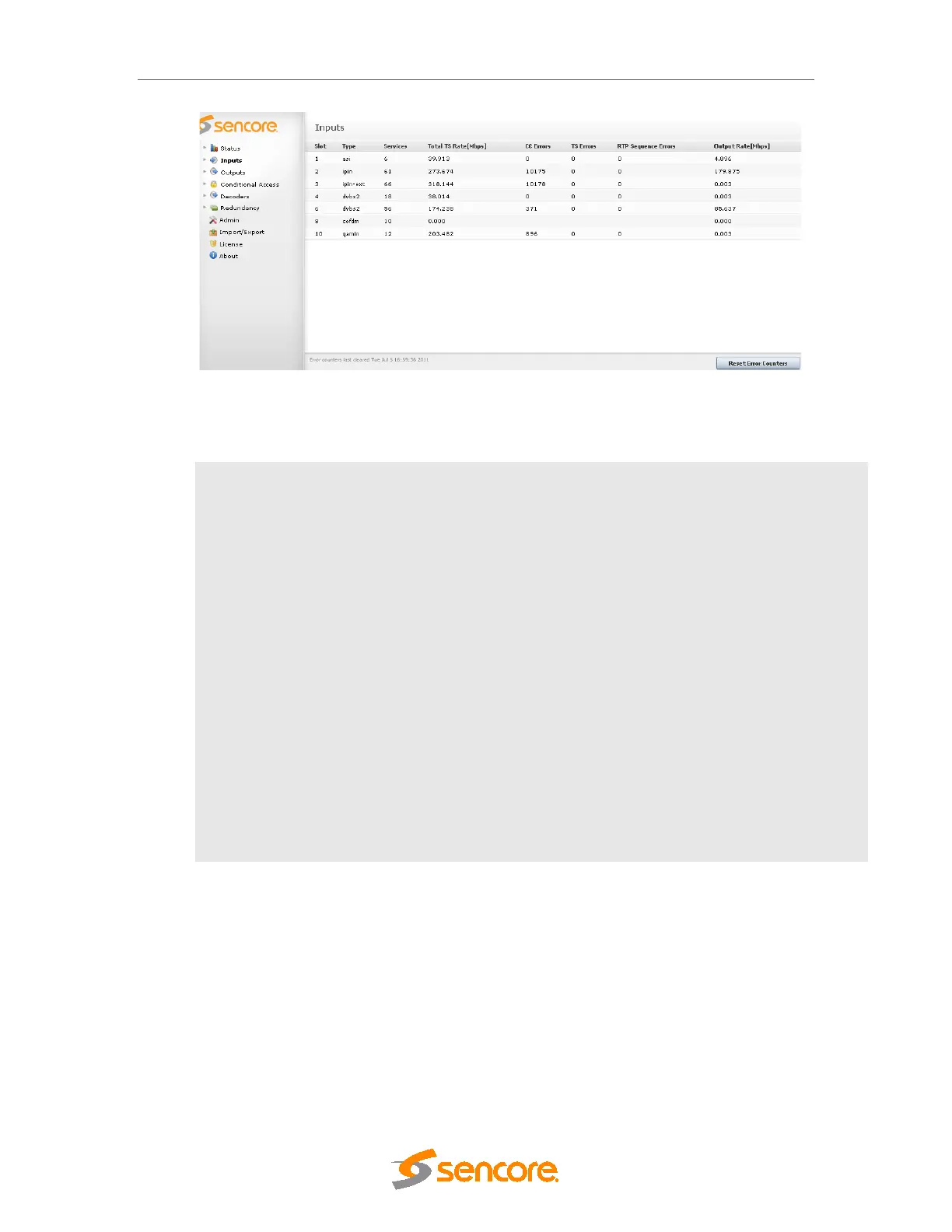

Figure 5.1 - Inputs Node
The following information is available in the Inputs node:
Each input module available in the unit has some common analysis features; they all support
manual definition of input PSI. The coming sections will describe these common features
followed by details on how each input module can be configured.
5.2 Input Analysis
For each input module the unit provides detailed MPEG/DVB/ATSC transport stream analysis
for all available input streams. The following information is provided by the input analysis
engine:
• Port specific status
• PSI/SI analysis of all input services
Slot
Slot position in the chassis
Type
Type of input module
Services
Number of services present in the transport stream
Total TS
Rate [Mbps]
Total bandwidth of the incoming transport stream
CC Errors
Number of Continuity Counter (CC) errors detected on all input ports since last
reset; CC errors indicate that one or more packets are lost.
TS Errors
Number of Transport Stream (TS) errors detected on all input ports. TS errors
indicate problems with the incoming TS structure of the streams
RTP
Sequence
Errors
Real-time Transport Protocol sequence errors since last reset (applies to IP only)
Output Rate
[Mbps]
Rate of active services transmitted to the backplane
