8.3 Transcoder Configuration
In the DMG platform, the transcoder module is used to receive services from any of the input
cards and change the codec, bit-rate or resolution of the service which can then be routed to any
of the output modules. When configured, the input video is decoded, rescaled and then re-
encoded.
The transcoder can operate as a 2 channel HD transcoder module or a 4 channel SD
transcoder module depending on options and licenses. The HD and SD transcoders can both
decode HD and SD video. The HD transcoder can encode HD and SD, while the SD
Transcoder can encode SD only. All incoming PIDs that are not transcoded will be kept in sync
with video after transcoding.
The transcoder status and configuration page is accessed by clicking on an encoder module in
Navigation Pane.
The page contains the following information:

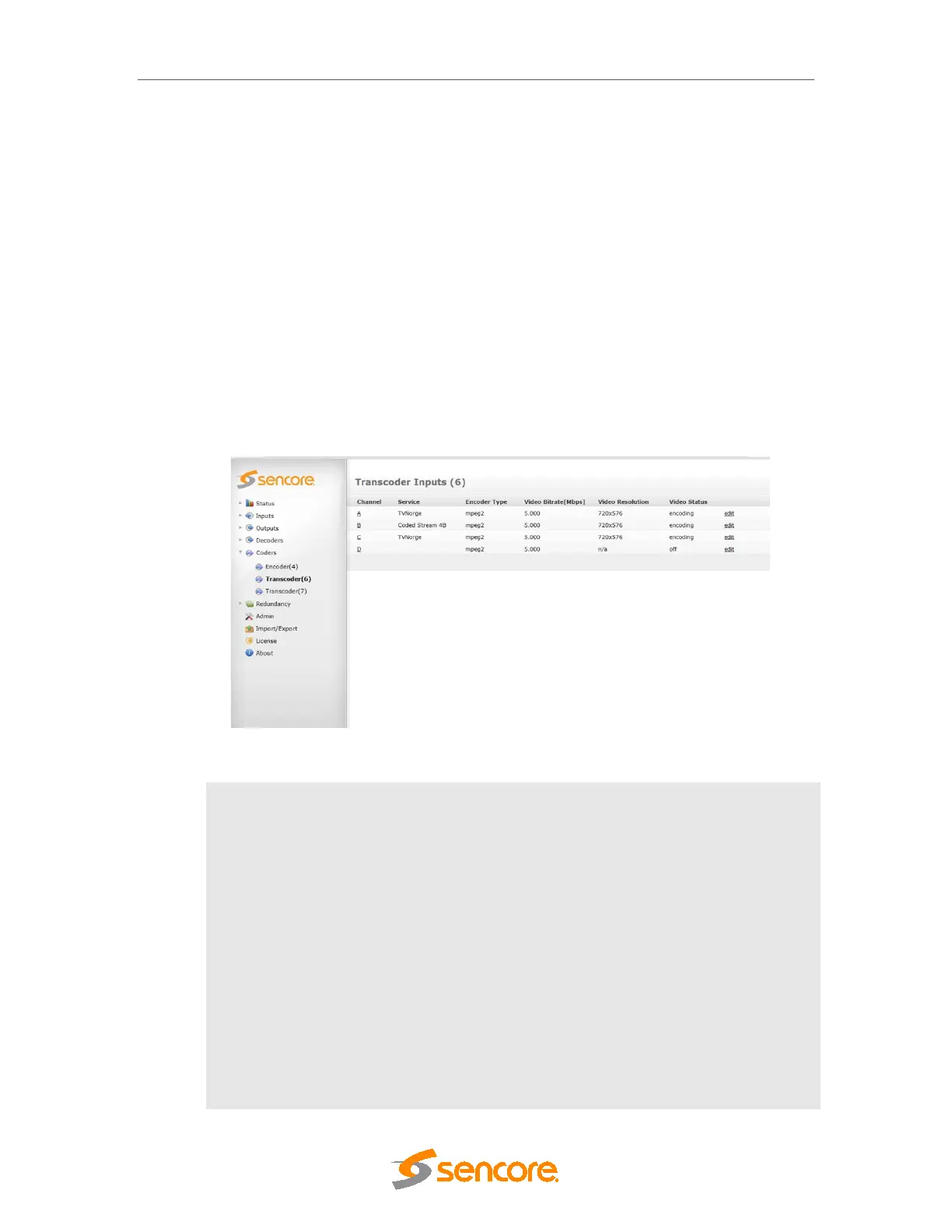

Figure 8.15- Transcoder Status and Configuration
Channel
Channel number. Detailed status can be displayed by clicking on
the Port.
Service
The service name of the service routed to the Transcoder. The field
is empty if no service is routed.
Encoder Type
Configured encoder standard; available standards are MPEG-2 or
H264 (MPEG-4 part 10).
Video Bitrate
[Mbps]
Configured video bit-rate of the transcoded video.
Video Resolution
Encoded video resolution; Depends on the configured video format
and horizontal rescaling. Horizontal Resolution x Vertical
Resolution.
Video Status
Video encoder status:
