5.4.8 8VSB Input
The 8VSB input module can receive up to four individual 8VSB input streams. To configure the
module:
• Switch to the Inputs node in the Navigation Pane
• Select the 8VSB module you want to configure to display the module configuration (see
Figure 5.42). Services available on all four 8VSB input ports will be listed in this view.

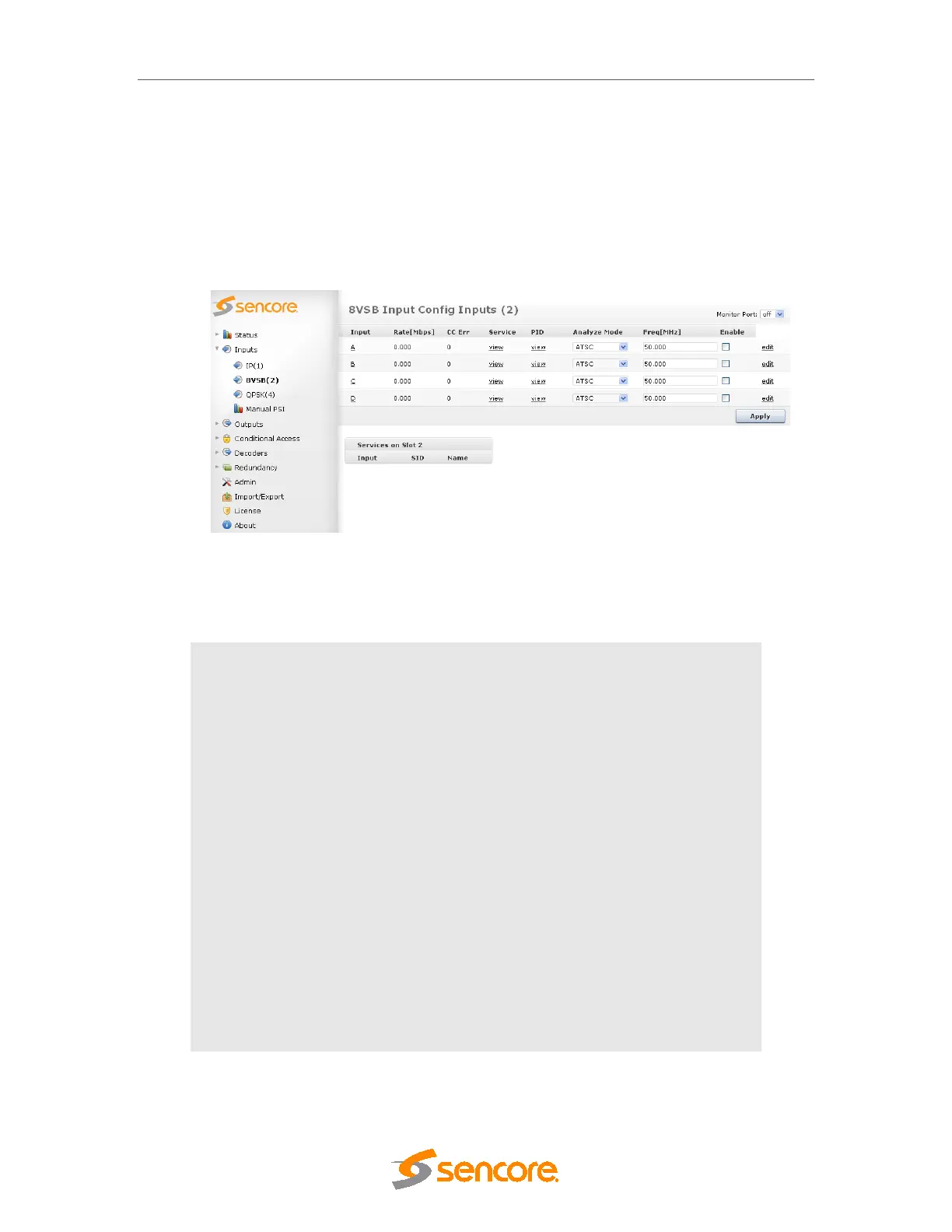

Figure 5.42- 8VSB Input
The 8VSB input window shows all configurable settings as well as the current bitrate and
service information. The following parameters are available:
Input
Port on the 8VSB input module
Rate [Mbps]
Incoming data rate
CC Err
Continuity Counter Error – indicates that one or more packets are
lost
Mode
Select one of the following modes:
o DVB
o ATSC
o MPEG
o No PSI analysis
The default mode is ATSC. If the incoming transport stream is not
ATSC compliant, use MPEG mode instead.
Freq[MHz]
Specify the currently tuned frequency in MHz, valid range is 47 –
861MHz.
Enable
Enable the corresponding input port
