7.3 Transport Stream Generation
To begin generating MPTS outputs, we set the Transport related parameters via the Edit
Multiplex
2
dialog, accessible by double clicking on the MPTS.
The procedure for adding services/multiplexes varies according to the type of module.
For non-IP modules, services are added to the output stream by dragging and dropping, as
illustrated in Figure 8.2. This method is possible because entries in the Output panel already
exist for these modules, corresponding to their physical ports. The Default Stream Properties
panel for these modules is used for adding new services.
For IP modules, output multiplexes can be added by entering appropriate values in the Default
Stream Properties panel and clicking Add MPTS (if MPTS license installed).

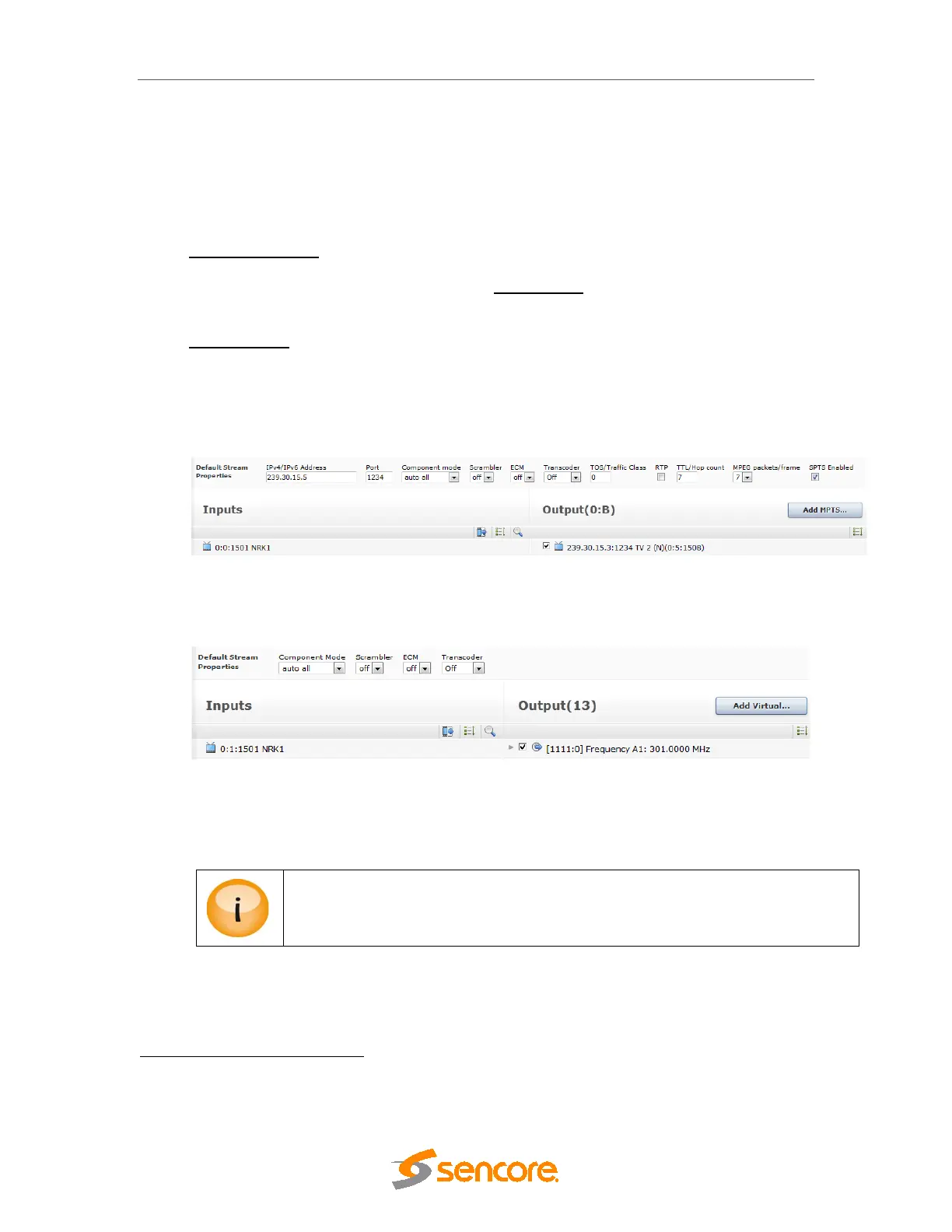

Figure 8.7 and Figure 8.8 below show the different Default Stream Properties panels for these
modules.
Figure 8.6 - Default Stream Properties for IP Modules
Figure 7.7 - Default Stream Properties for all other Modules
When creating an SPTS, the Default Stream Properties will be used and the IP address will
be incremented.
To add a unicast service, enter the destination port together with the destination IP
address.
The following fields are available for Default Stream Properties; these fields vary depending
on the module type:
2 For ASI, COFDM, and QAM modules, “Multiplex” is replaced with the module type.
