7.4.7 DVB-S/S2 Output Module
The DVB-S/S2 output module is available in two with two different output bands, IF and L-Band.
Depending on the module there are different parameters available for configuration. For the IF
DVB-S/S2 output module, the Port Settings tab is shown below:

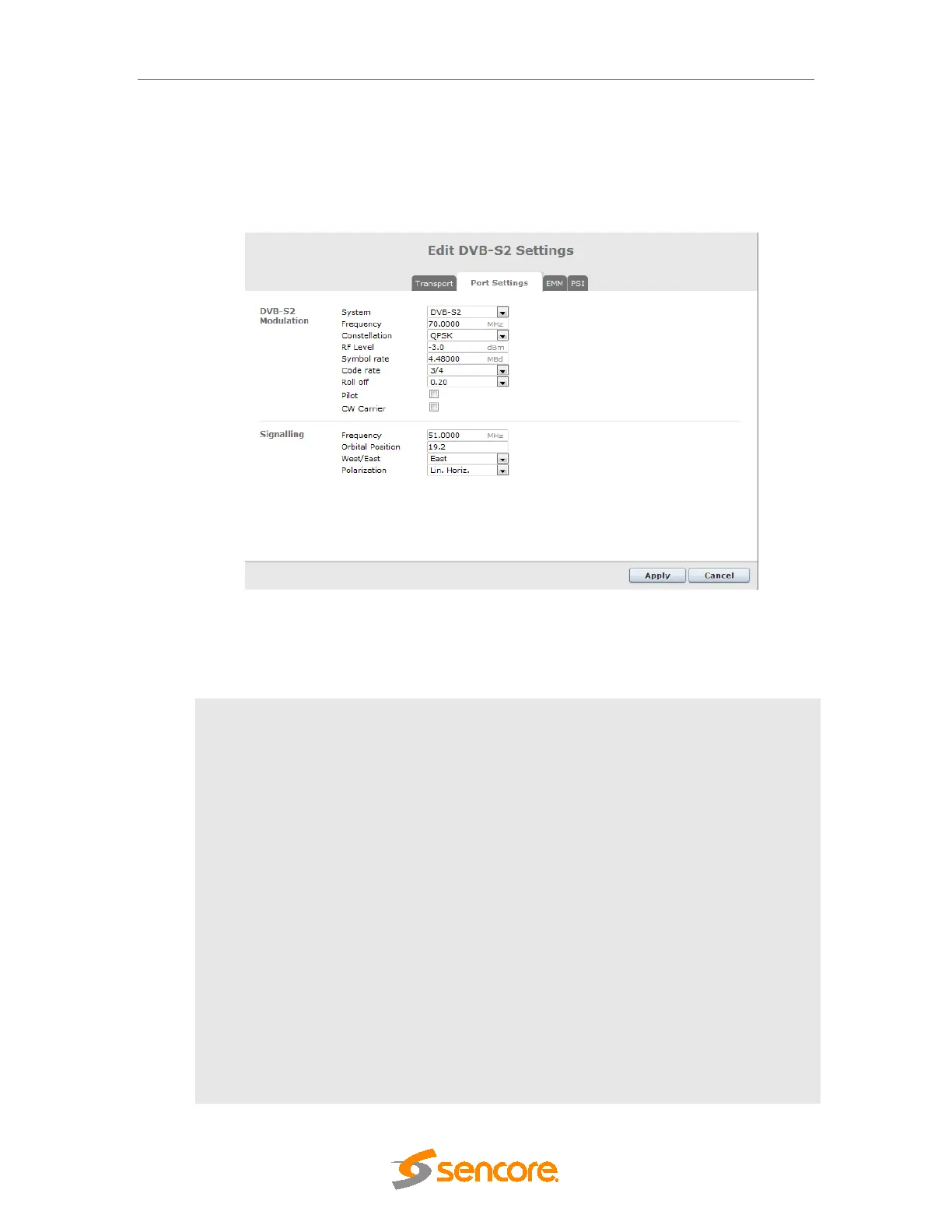

Figure 7.46- DVB-S2 Output –Port Setting Configuration
The following parameters are available.
Modulation:
System
The following option can be selected from system
• DVB-S
•
DVB-S2
Frequency
Specify the DVB-S2 frequency in MHz.
For the IF output, valid range is 42 – 200Mhz. Default value is 70 MHz.
For the L-Band output, the valid range is 950 – 2150 MHz.
Constellation
Specify the Constellation as below
• DVB-S: QPSK only
• DVB-S2: QPSK, 8PSK,16 APSK, 32 APSK
RF Level
Specify the RF Level in dBm, valid range is -15 – 0 dBm.
Symbol Rate
Specify the symbol rate in MBd, valid range is 1-45 MBd.
Code rate
Specify the Code rate as below
• DVB-S: ½, 2/3, ¾, 5/6, 7/8
• DVB-S2: ¼, 1/3, 2/5, ½ 3/5, 2/3, ¾, 4/5, 5/6, 8/9, 9/10
