DMG 3200/3100/3000 – User Manual
Page 186 (306)
for encoder module and transcoder module are described in section 8.3.34. The following
sections describe only information specific to the encoder.
8.2.1 Source Parameters
This page is used to configure the input source parameters for the encoder port.

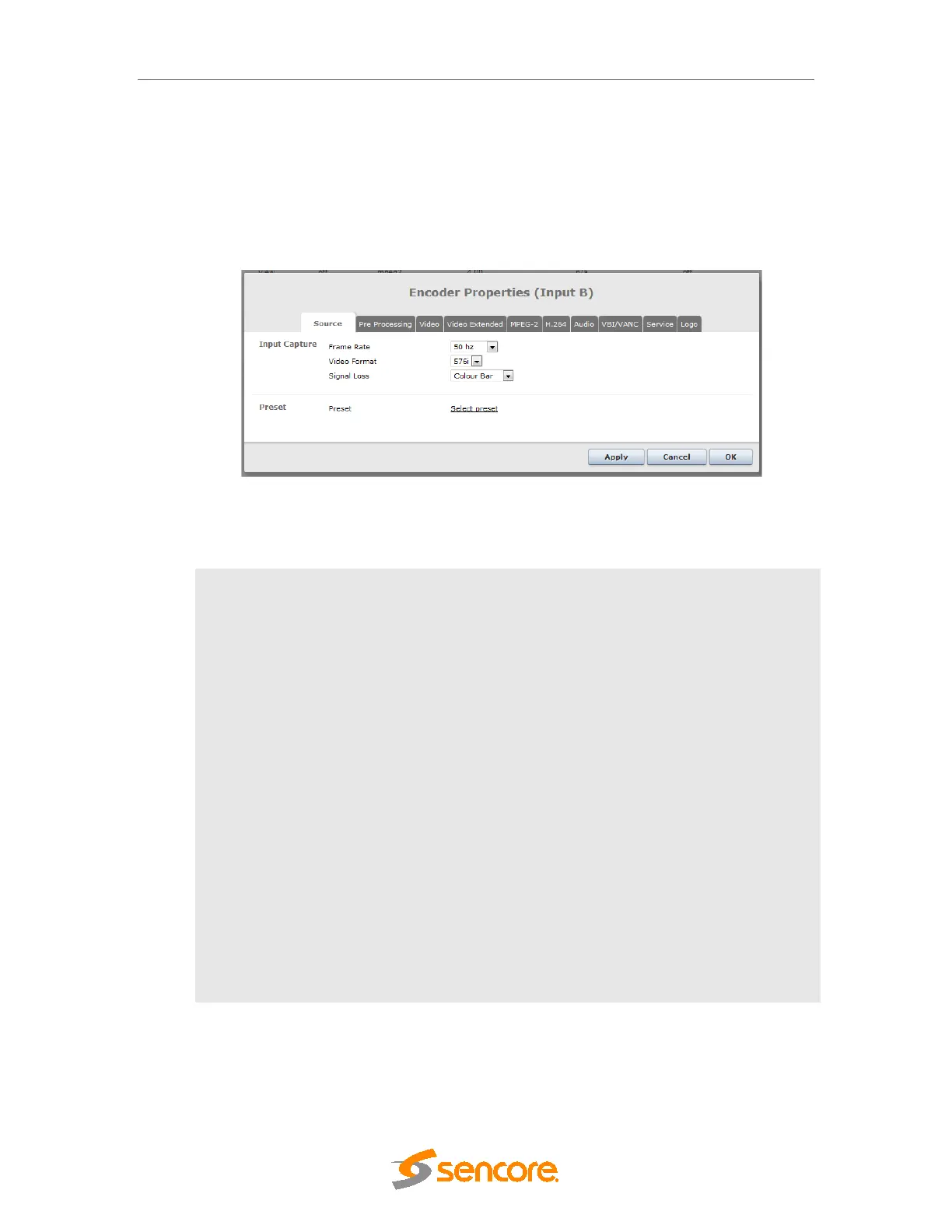

Figure 8.3 – Encoder Source Configuration
The following parameters are available for source configuration:
Frame rate
Specify incoming frame rate from drop down list.
50Hz
59.94Hz
Video Format
Available HD formats are:
1080i
720p
Available SD formats are:
576i
480i
A HD Encoder supports both SD and HD formats. A SD encoder supports
SD formats only.
Signal Loss
Available options are:
Colour Bar: Encoder Produces Colour Bar when input signal is lost.
Black Picture: Encoder Produces Black Picture when input signal is lost.
Preset
Configuration Presets can be used to help configuring the
encoder/transcoder optimally for a specific scenario with respect to
content and/or bitrate:
