5.4 Input Modules
5.4.1 DVB-S/S2 Input
The DVB-S/S2 module supports both DVB-S and DVB-S2 inputs. The DVB-S2 functionality is
licensed and will only be visible in the GUI if a correct license is installed for the module.
The hardware revision 2.0 DVB-S/S2 input module includes a new advanced DVB-S2
demodulator. This input module is compatible with the DVB-S/S2 input card. The hardware
revision of the module is available on the About page in the web GUI.
In addition to the standard DVB-S2 the advanced module supports
• 16_APSK and 32_APSK mode.
• Multistream input
• Auto modulation detection mode.
Each DVB-S/S2 module can receive up to four individual L-Band satellite input streams. To
configure the module:
Switch to the Inputs node in the Navigation Pane
Select DVB S/S2 to display the module configuration (see Figure 5.17). Services available on
all four input ports will be listed in this view.

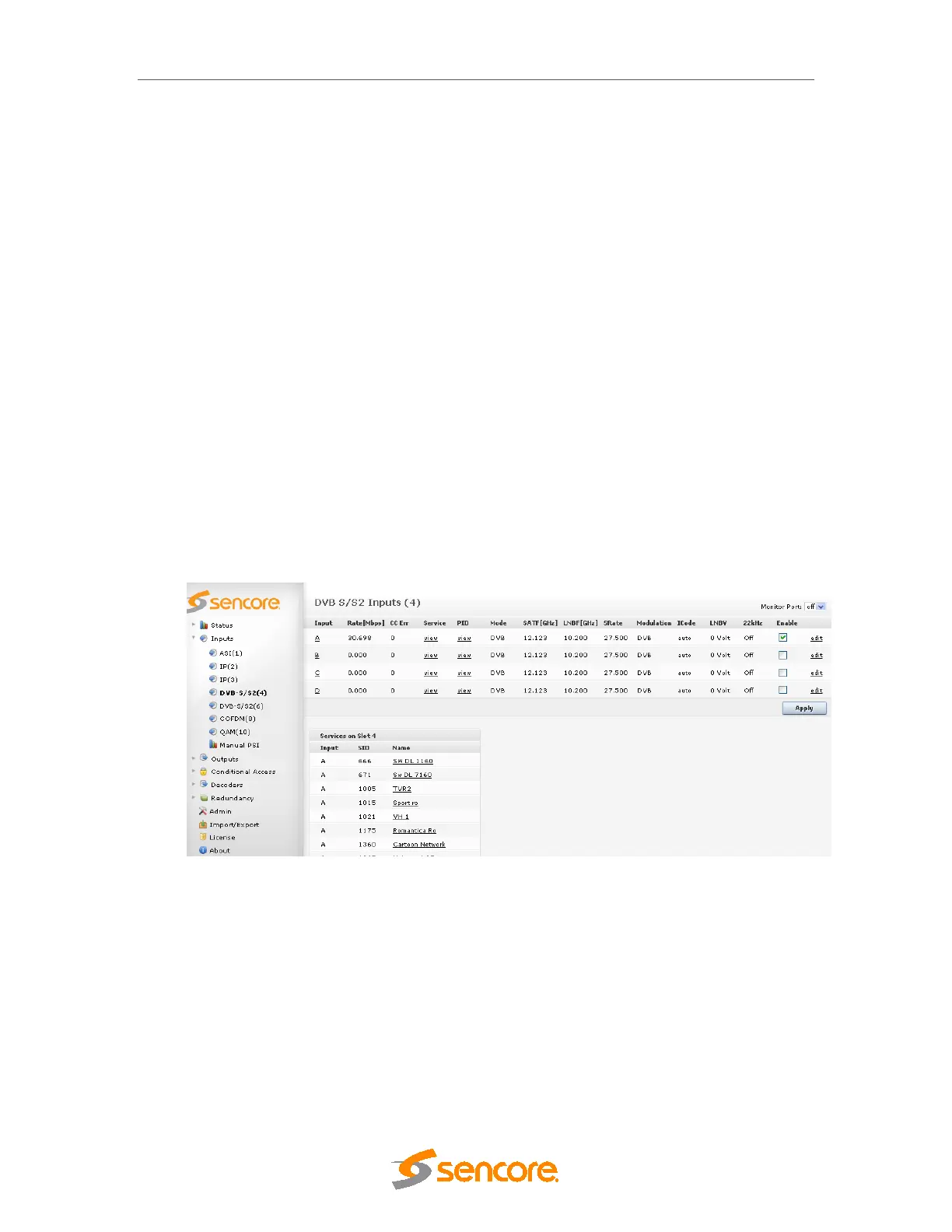

Figure 5.16- DVB-S2 Input
The DVB-S/S2 node shows all major configuration settings as well as the current bitrate and
service information. The following parameters are available:
