Set
When the alarm was set
Application
Which module and port the alarm is referring to
Error Code
Type of alarm. Refer to Appendix A for further details.
On the module itself, the Status LED changes
color according to the active alarm:
BLUE – Booting or No contact to backplane
GREEN – No critical alarm(s)
RED – Critical alarm(s)

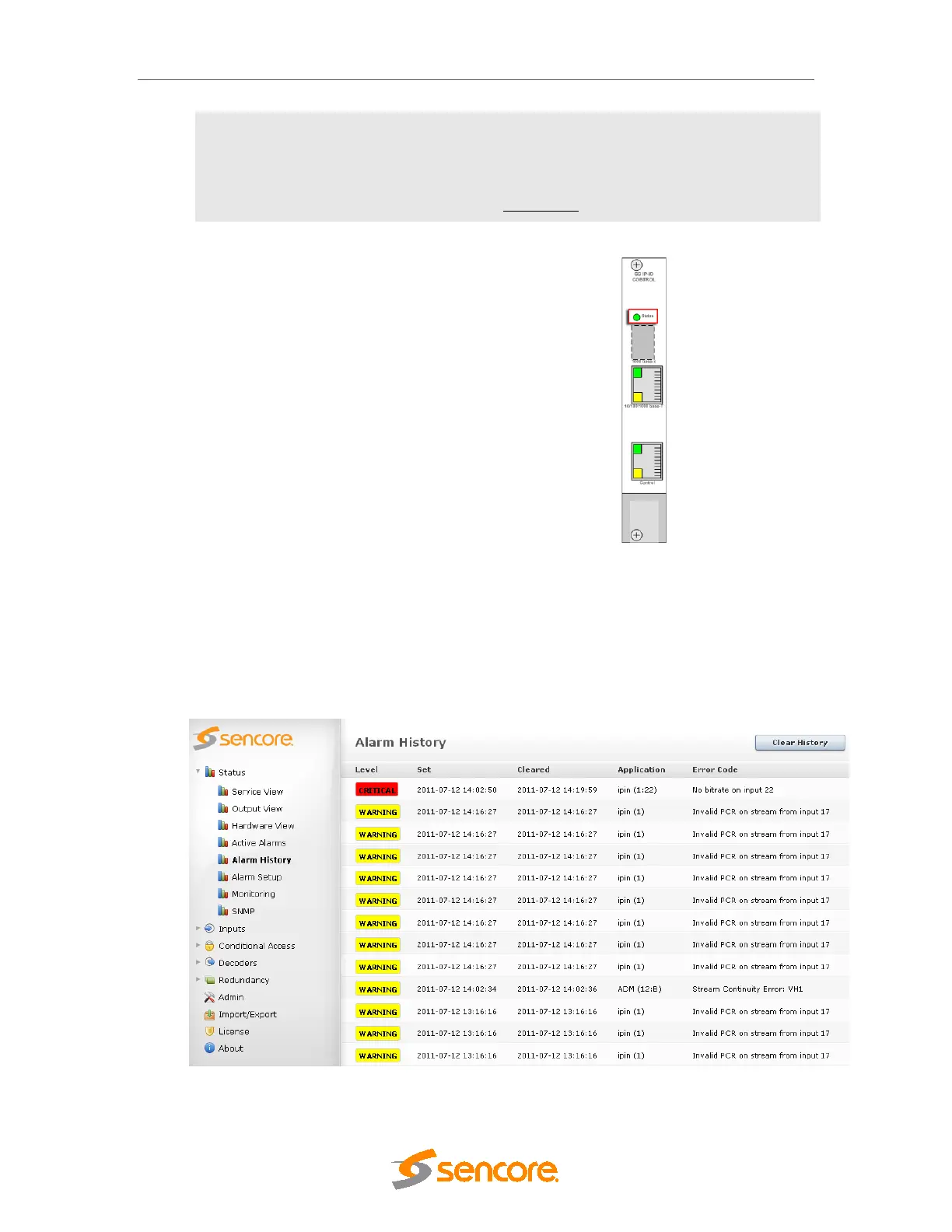

Figure 11.7 - Example of IP
Input Module with Status
LED
11.1.5 Alarm History
Expand the Status view in the Navigation Pane and select. The alarm history will be displayed
as shown below. Alarm History
Figure 11.8- Alarm History
