The status found by clicking on the Port on the status and configuration page provides useful
information when configuring the VBI/VANC. Teletext, subtitling pages, WSS and VPS status is
given for VBI, SMPTE-2031 and OP-47.
8.2.5 Service Parameters
The following default parameters are available for service configuration. The Components tab of
the output card can also be used configure different PID values and components on each
output port.

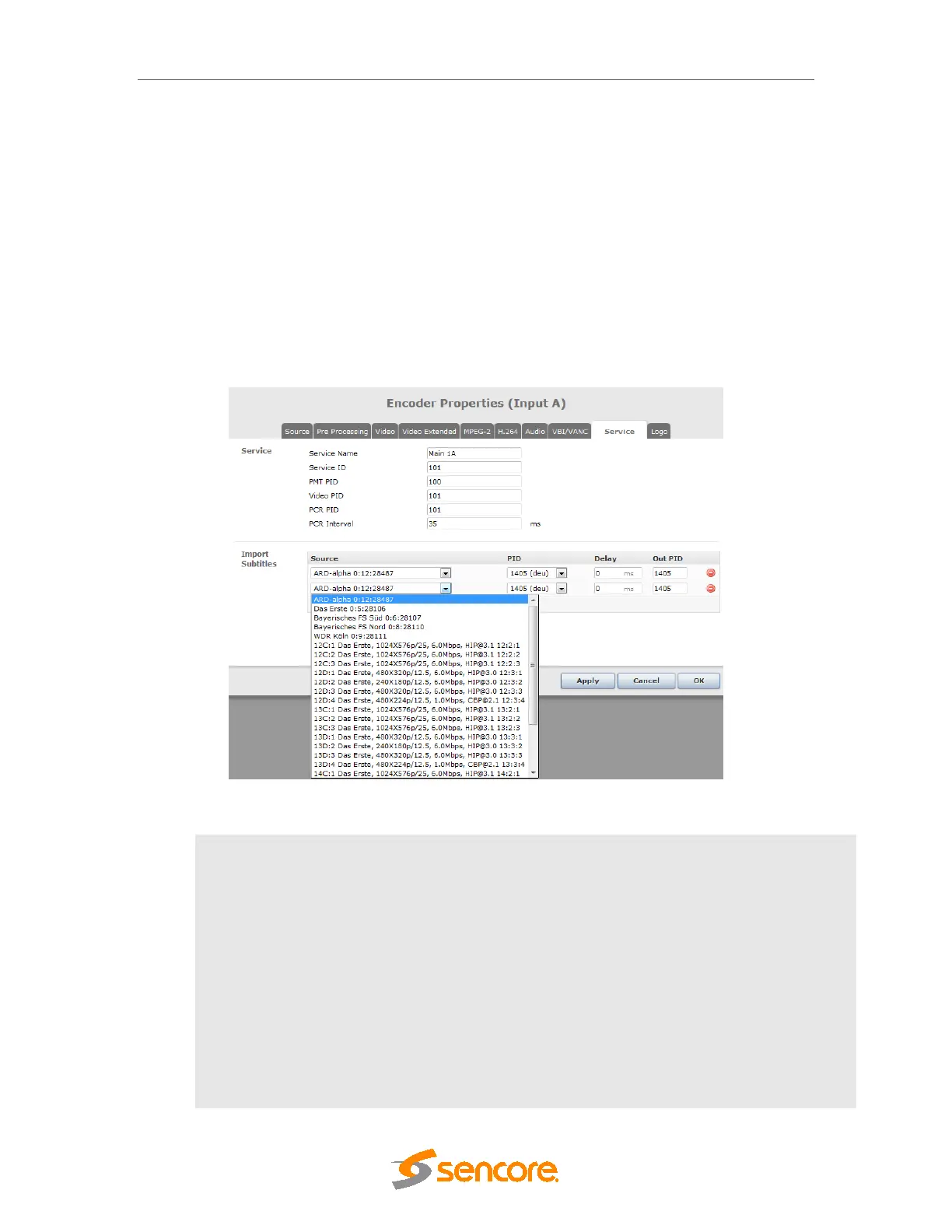

Figure 8.10 – Service name configuration for Encoders
Service Name
Service Name for the encoded stream.
Service ID
Service ID for the encoded stream.
PMT PID
Default PMT PID for the encoded stream.
Video PID
Default Video PID for the encoded stream. Rage: 32-8190
PCR PID
Default PCR PID for the encoded stream. If PCR and video PID have the
same value, PCR is embedded with the video. Rage: 32-8190
PCR Interval
PCR Interval for the encoded stream. Rage: 1-250ms.
PIP PID
Default PIP Video PID for the encoded stream. Rage: 32-8190. PCR is
