Data Source
Where in the SDI signal to receive the data from. Options: VBI, OP-47 and
SMPTE-2031.
Line Filter
Specify teletext line/s to be filtered.
Data ID
Needed for SMPTE-2031 to uniquely identify the data type as the standard
allows one data type to appear more than once.
Page
Page information used to create the teletext descriptor. Up to 6 pages can be
created.
Page Type
Type of teletext page. Options: Start and Sub-Title.
Start page for teletext defining which page the TV/Receiver shall show when
teletext is switched on.
Subtitling page specifying the page the TV/Receiver shall show when a
specific subtitling language is selected.
Page Language
Three letter language code for the start page and subtitling page. There can
be several start pages and subtitling pages in a teletext stream with different
languages.
Page Number
The page number for the start pages and the subtitling pages. Range:100-
899
Digital program insertion (DPI) receives the DPI information as ancillary data according to
SCTE-104 and converts the data into SCTE-35. The DPI data PID is added to the transport
stream.
The user can enable or disable DPI, select the PID value and select the source PID index on
the VBI/VANC page in the GUI. The SCTE-104 supports data transmission of more than one
source PID index. The list of incoming indexes is shown on the status page. This PSI/SI for
DPI is added to the output PMT.

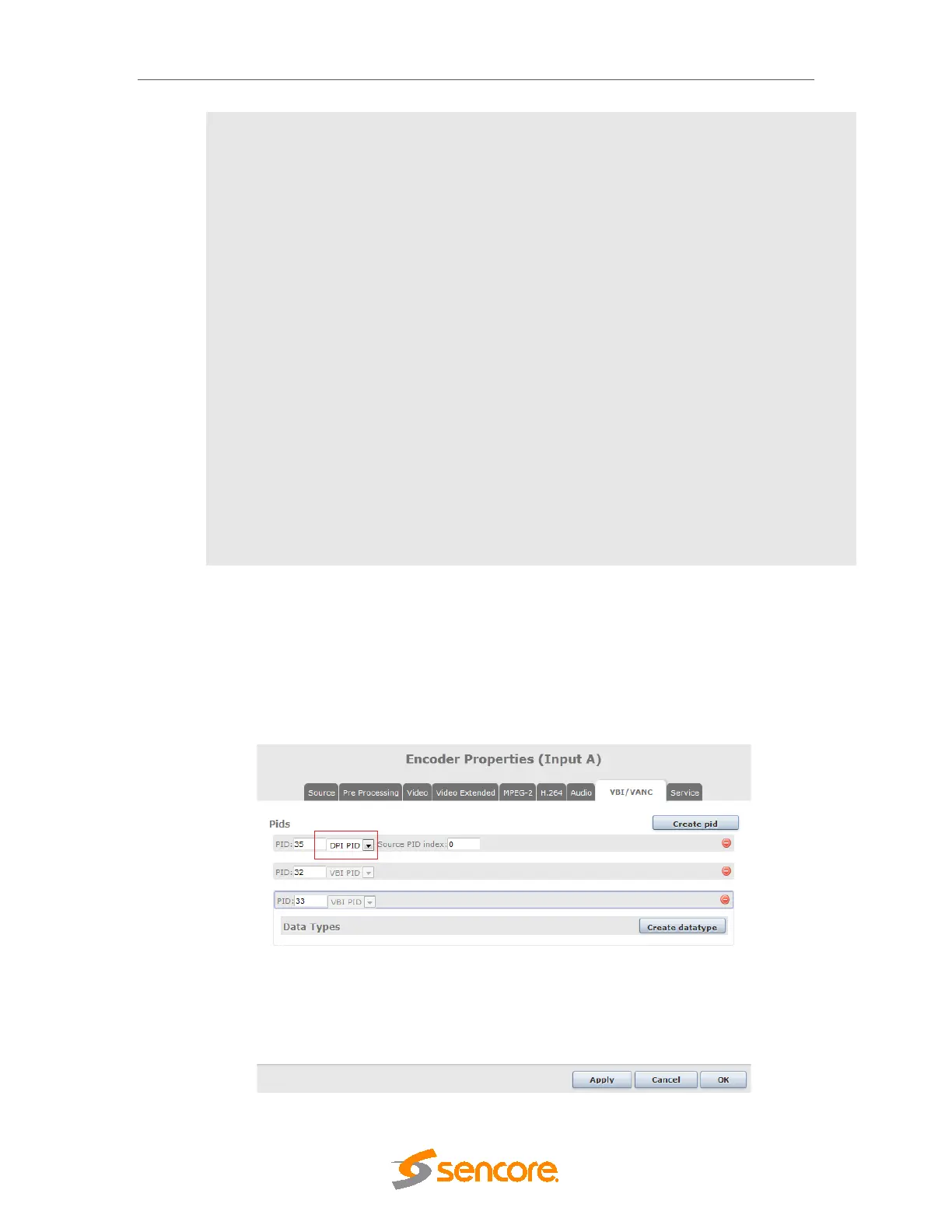

Figure 8.9- Encoder DPI settings
