DMG 3200/3100/3000 ā User Manual
Page 161 (306)
More information regarding the configuration of the T2 output module can be found in the
Terrestrial Solution Configuration Guide
7.5 Output Options
7.5.1 Enable/Disable Services in Outgoing MPTS.
It is possible to enable and disable a service in an MPTS output in addition to enable/disable the
complete MPTS.
In order to do this, use the tick box on the output of each service in a MPTS once expanded.

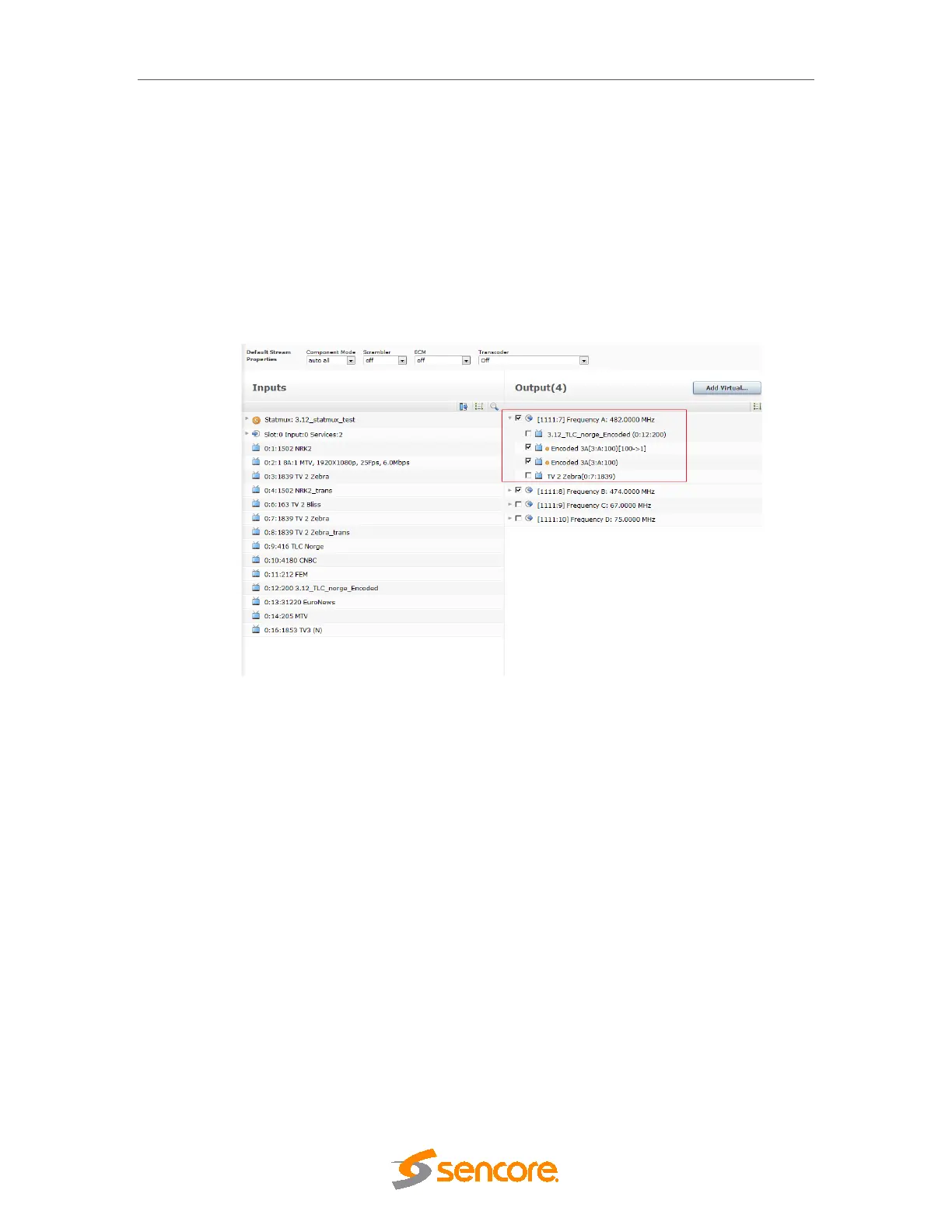

Figure 7.49 ā Enable/ Disable services in MPTS.
7.5.2 Virtual MPTS Output
This feature provides the capability to generate the NIT including Delivery System Descriptor for
MPTS outputs currently not configured by the unit. The Delivery System Descriptor is defined
as part of the MPTS setup; data inserted will be included in the NIT.
For the ASI, COFDM, or QAM output, the virtual output provides this feature. It may be added
from the Outputs page using the Add Virtual button enabling the signaling of other transports
not present in the same unit.
Clicking the Add Virtual button displays a dialog similar to the one shown below, allowing you
to insert the Network ID, TS ID in the Transport tab, followed by the QAM configuration (for
this example) in the Port Settings tab.
