DMG 3200/3100/3000 – User Manual
Page 37 (306)

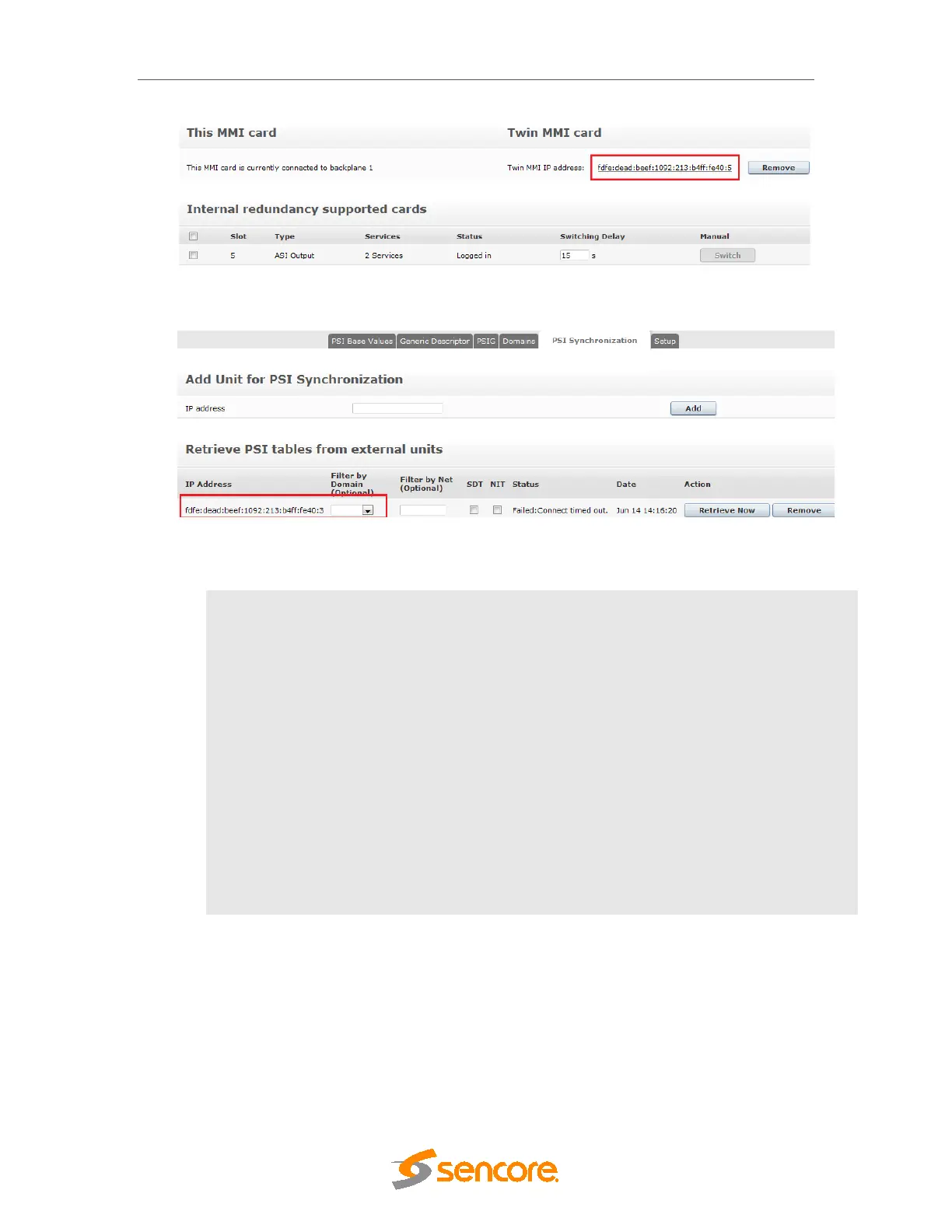

Figure 4.9 – IPv6 Internal Redundancy
Figure 4.10 – IPv6 PSI Synchronization
Default interface
Default interface for Management interface. This can be selected
between control and dataports, as well as any configured VLANs.
Auto IPv6 Address
All interfaces will automatically get an IPv6 address which is generated
based on router advertisements. The address will have a correct prefix,
and be unique on the connected network.
Manual IPv6
Address
When enabling Manual IPv6 Address, the port can be configured with a
manual IPv6 Address. Prefix length and Gateway address is also set.
IPv6 NTP server
The unit can connect to an IPv6 NTP server by inserting a valid IPv6
address in the “NTP server” field.
Internal Redundancy
The twin MMI card can use an IPv4 or IPv6 address.
PSI Synchronization
The PSI Synchronization units can use an IPv4 or IPv6 address
4.1.3 Management over IP-Data Port and VLANs
In the Admin section of the MMI card, it is now possible to set the default interface for the
Management interface. This includes the GUI, Maintenance Center and SOAP operations.
This will allow you to configure the IP dataports on the switch card, or a configured VLAN for the
default management interface.
After configuring VLANs we can see it in the drop down list in the control port refer below figure.
