DMG 3200/3100/3000 – User Manual
Page 147 (306)

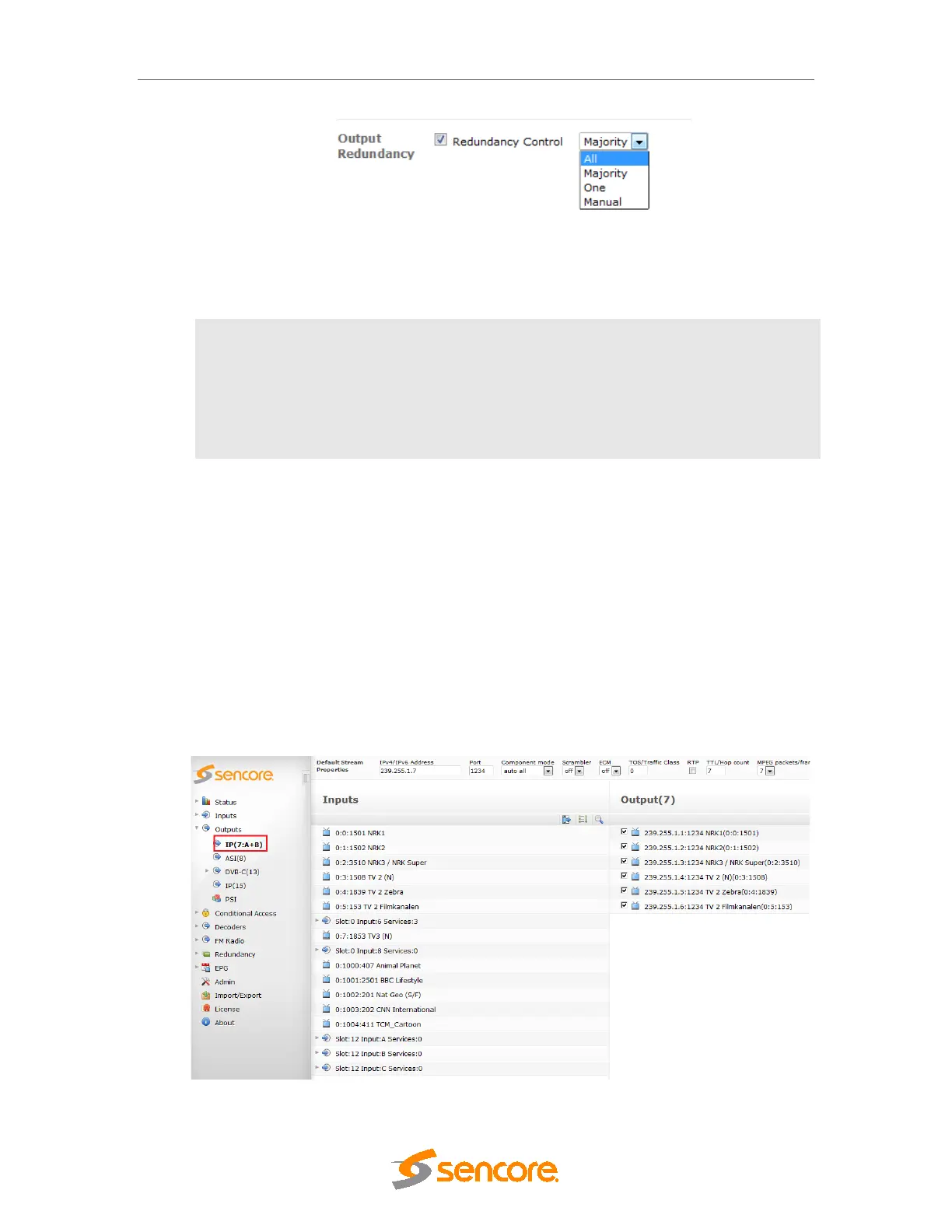

Figure 7.33 - Output Redundancy Panel for IP Modules
The following parameters are available:
Redundancy
Control
Provides the criteria for when to disable the output. Choose from:
• All – Output TS is disabled if all services are in error
• Majority - Output TS is disabled if majority of services (with high priority)
are in error
• One - Output TS is disabled if one service is in error
• None - Output TS is not automatically controlled
Please note that Source IP needs to be enabled and configured correctly if Output Redundancy
(OSPF) is enabled.
7.4.1.3 Port Settings for IPv6 output
For IP output modules with IPv6, the Port Settings tab is shown below. When using standard
IPv6 address syntax (128 bits, ‘:’ instead of ‘.’), the GUI will interpret the address as an IPv6
address.
7.4.2 Cloned IP Output Module
The Cloned IP Output module has two physical data ports which both contain the same output
represented by one internal port. Service configuration is performed to the internal data port,
and the same service is then output on both physical data ports.
Figure 7.34 – Cloned IP Output Module.
