DMG 3200/3100/3000 – User Manual
Page 145 (306)
7.4 Output Port Settings
7.4.1 IP Output module
The following parameters: IP, Port, RTP, Time to Live, Type of Service and MPEG
packets/Frame are populated based on the values given in Default Stream Properties panel
(see Section 7.3). The remaining parameters: Rate [Mbps] and Source Port are described
below.

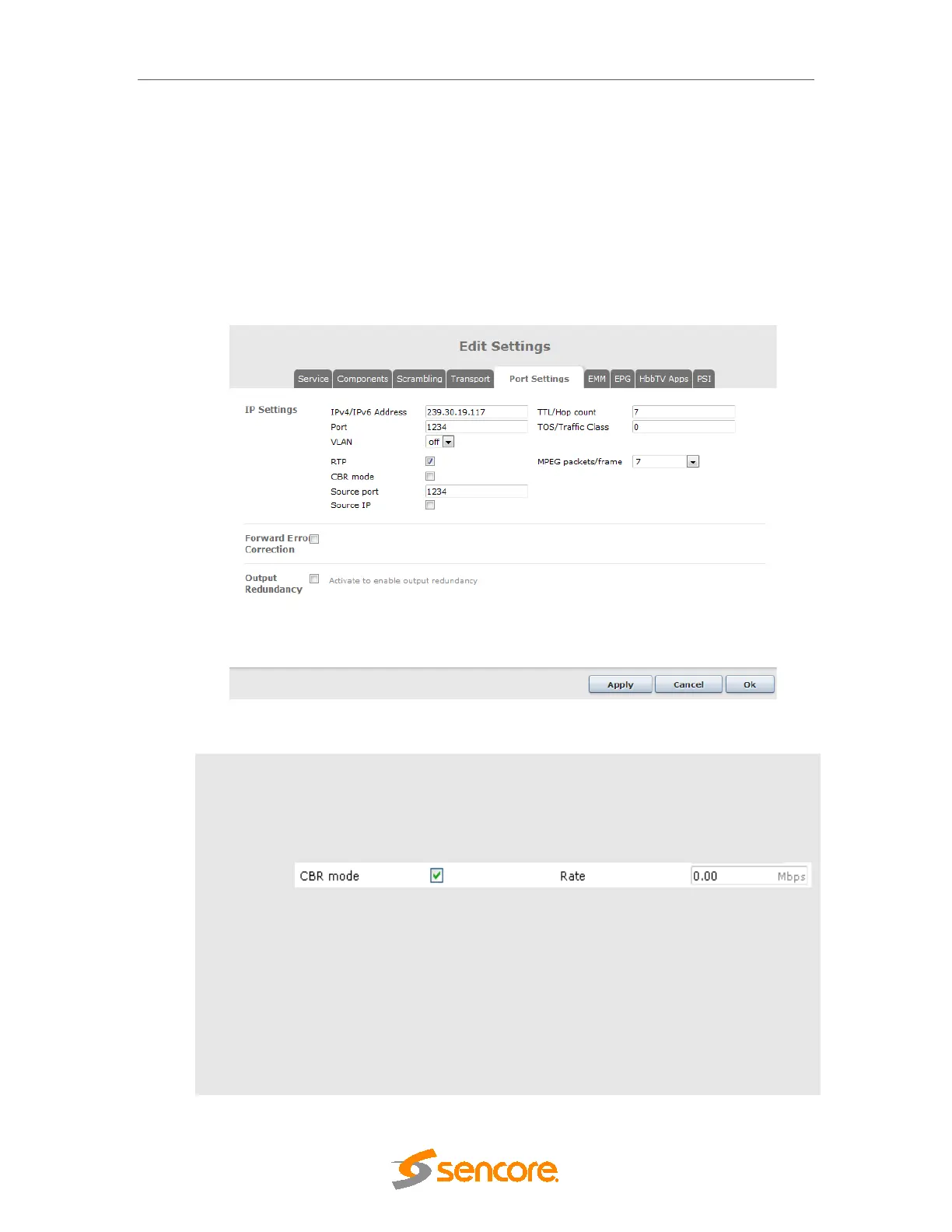

Figure 7.31 - Port Settings Tab for IP Modules
Rate
(Mbps
only)
Total CBR output rate
CBR
Mode
(SPTS
only)
Enables an SPTS output to be sent with constant bit rate.
Figure 8.32 - Enabling CBR Mode
Enter the desired output rate. If the service exceeds this rate, the system will
report an output buffer overflow alarm and drop the packets.
Source
Port
The IP source port of the output multicast. In an Output Redundancy
configuration, this value will be replaced with the virtual source address.
Source IP
The source IP address override feature allows configuration of the source
address of an IP output multicast or unicast to any IP address.
