DMG 3200/3100/3000 – User Manual
Page 129 (306)
7.3.1 Transport Settings
The generic Transport tab for all output modules contains the Network ID, Orig. Network ID
and TS ID fields as well as the Import TS PIDs checkbox. For IP and ASI output modules, the
tab holds the additional Delivery Descriptors panel as well (described in the following
subsection).

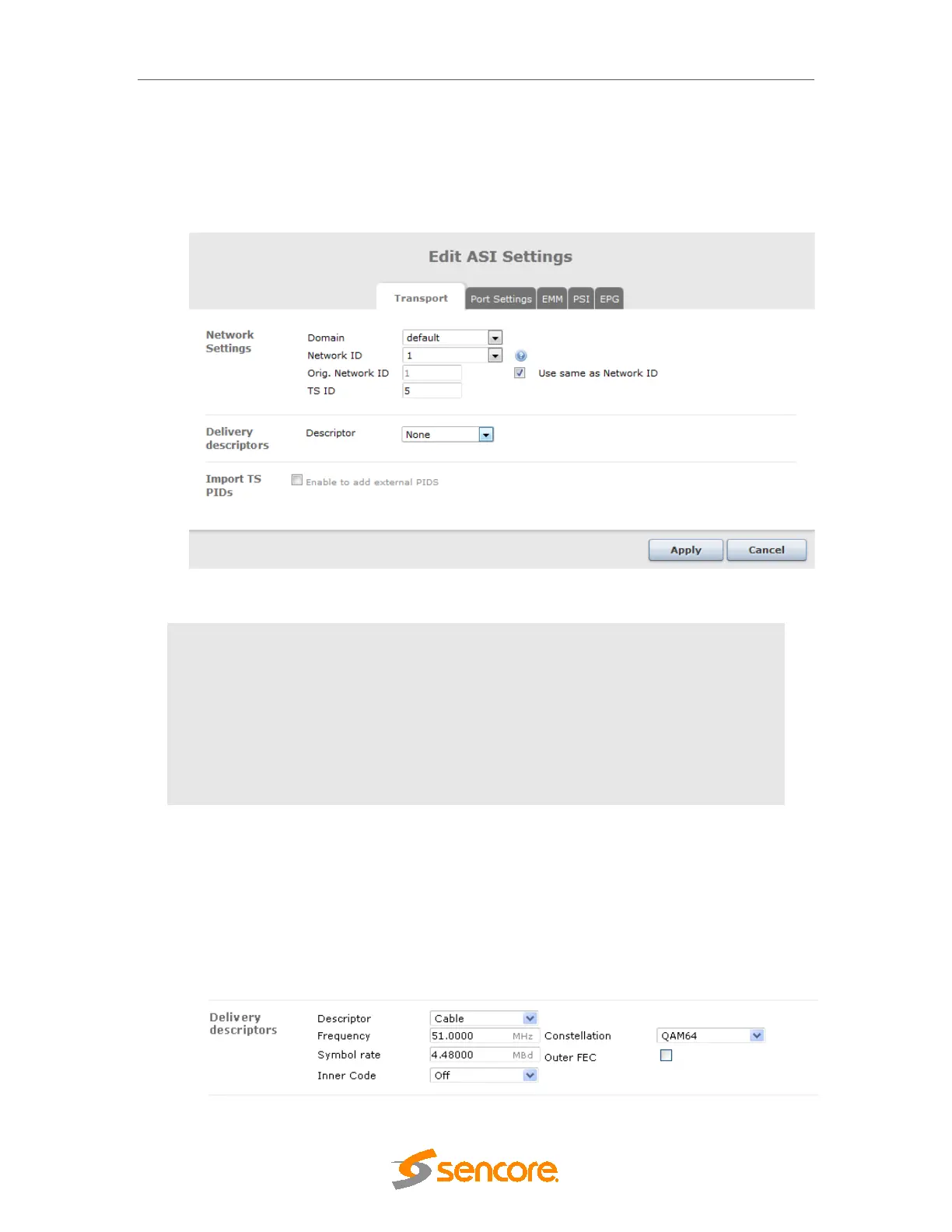

Figure 7.11- Transport Tab for ASI Modules
Domain
If a domain has been configured, an additional drop down box will be
visible. Refer to 8.6.10 for information on how to add a domain.
Network ID
Network identification selector
Orig. Network ID
Original Network identification tag. To disable, check Use same as
Network ID.
TS ID
Transport Stream identification tag
7.3.1.1 Delivery Descriptors
If the MPTS stream is to be converted to another network type modulation further down the
signal chain, it is possible to add Cable, Satellite or Terrestrial parameters, which will then be
added into the NIT. Select one of the three options under Delivery Descriptors from the
Descriptor drop down box and enter the required parameters.
Figure 8.13, Figure 8.14, and
Figure 8.15 illustrate the differences between the three options; correct values for these
parameters can be obtained from respective network operators.
