DMG 3200/3100/3000 – User Manual
Page 160 (306)
7.4.8 DVB-T2 Output Module
For DVB-T2 output modules, the Port Settings tab is shown below:

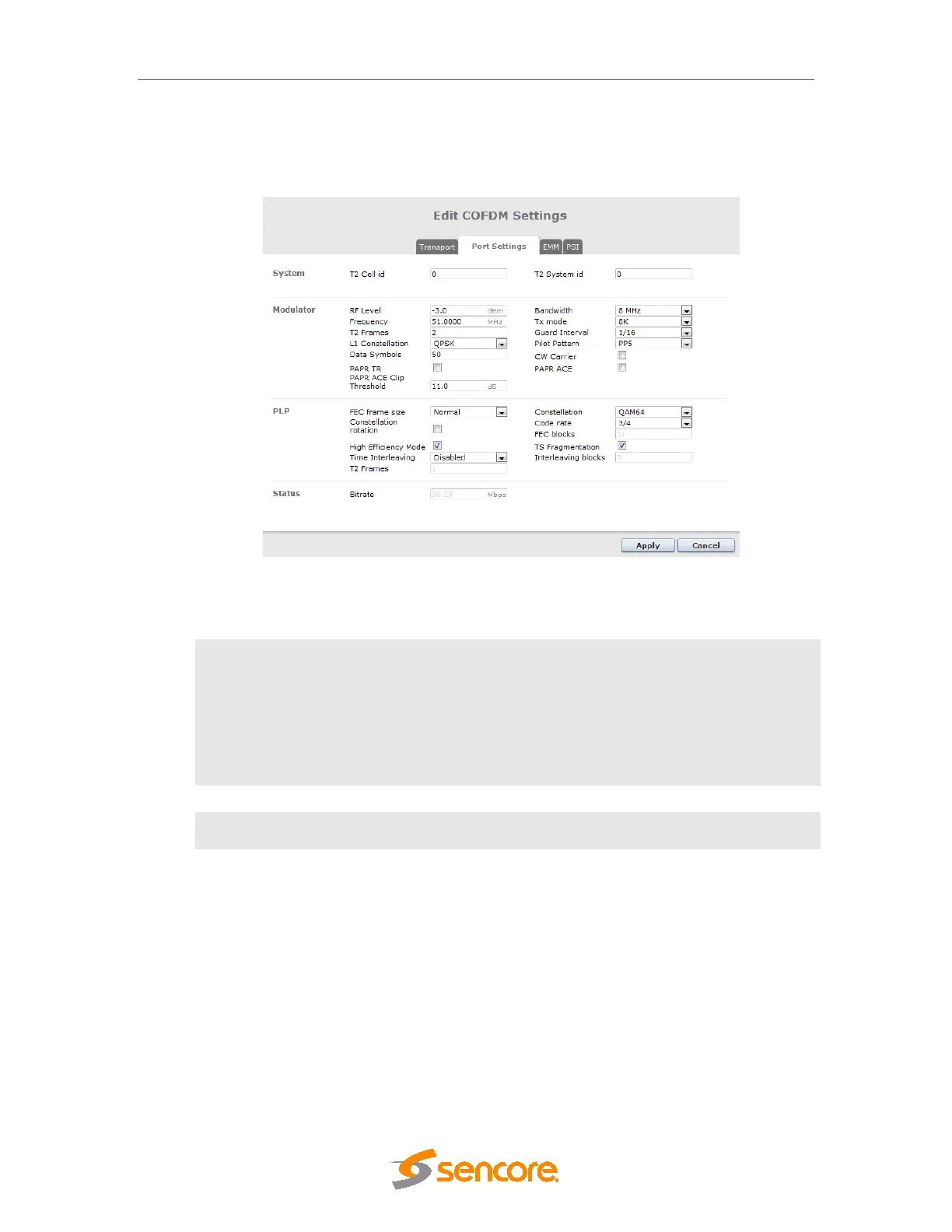

Figure 7.48- DVB-T2 Output – Port Setting Configuration
Modulator
RF Level
RF level measured in dBmV
Frequency
Currently tuned frequency in MHz
Bandwidth
Bandwidth of the currently tuned channel
CW Carrier
Enables continuous wave signal (For test only).
Status
Shows the current effective bitrate of the output port
The available configuration parameters in the GUI will not be documented in detail. The
parameters are according to the DVB-T2 specification, ETSI EN 302 755 v. 1.2.1 (2010-10).
The configuration of a DVB-T2 transmitter requires a good working knowledge of this
specification as well as the DVB-T2 implementation guidelines, ETSI TS 102 831. Chapters 4
through 6 of the implementation guidelines is a good place to start with regard to a high level
understanding of the parameters involved.
The user interface attempts to verify that the chosen combination of parameters is valid. Invalid
entries will be highlighted in red and “Apply” will not work unless errors have been corrected.
The “FEC blocks” and “Bitrate” are status parameters that indicate the expected payload
carrying capacity of the chosen parameters.
