Figure 5.45 – QAM-B Status View
The following information is displayed:
Sync
MPEG sync number: 188 or 204
Effective Bitrate
Effective bitrate of the input stream
Total Bitrate
Total bitrate of the input stream
Lock Status
Lock status of the tuner
Level
RF level measured in dBmV
MER
Modulation Error Radio in dB - a typical good reading is between 30
and 40 (the higher the better).
5.4.10 DVB-T2 Input
The DVB-T2 input module can receive up to four individual Frequencies. It comes in two
different HW configurations. One version has a single input connector that is distributed to the 4
demodulators internally while the second version has 4 input connectors; one for each tuner. To
configure the module:
• Switch to the Inputs node in the Navigation Pane
• Select the DVB-T2 module you want to configure to display the module configuration (see
Figure below). Services available on all four DVB-T2 input ports will be listed in this view for
each port type.
• Supports PLP input selection. Note that in multi PLP environment it can only tune one PLP at a
time.

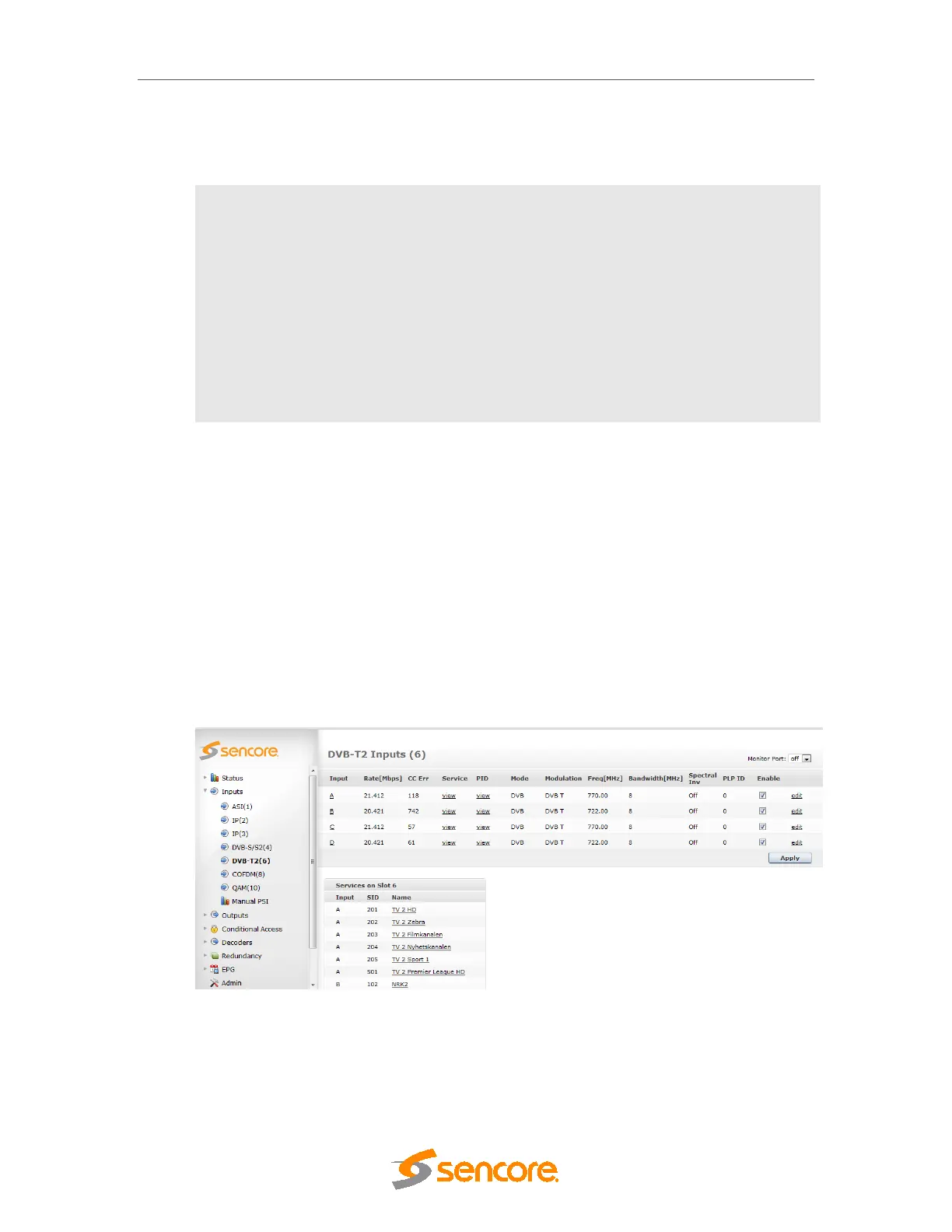

Figure 5.46- DVB-T2 Input
The DVB-T/T2 mode shows all major configuration settings as well as the current bitrate and
service information. The following parameters are available:
