• PID display – listing all input PIDs for each input, with implicit highlighting of CC errors,
PCR flag and scrambling bits (odd/even)
This information is accessible by expanding the Inputs view in the Navigation Pane. The
following example (Figure 5.2) is based on a DVB-S/S2 input module, but the same applies to
all input modules.

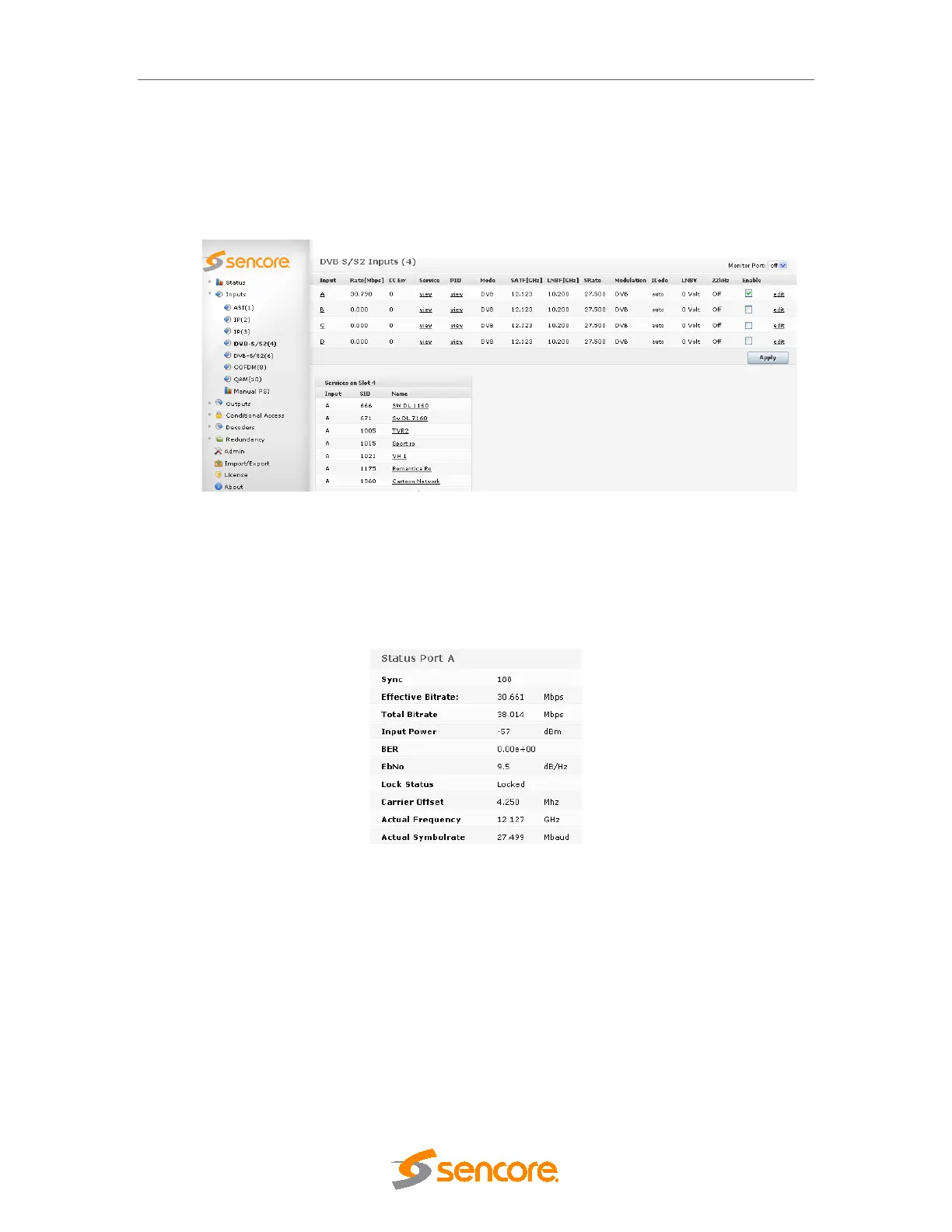

Figure 5.2- Example of DVB-S/S2 Inputs
5.2.1 Input Port Analysis
Within the Inputs node, it is possible to access lower level information, e.g. port specific
information. To obtain port specific information for input modules with demodulators, click on the
port letter in the Input column.
Figure 5.3 - DVB-S/S2 Port Detailed View
For more details on actual parameters, refer to the configuration section for the respective input
type in this chapter.
