DMG 3200/3100/3000 – User Manual
Page 183 (306)

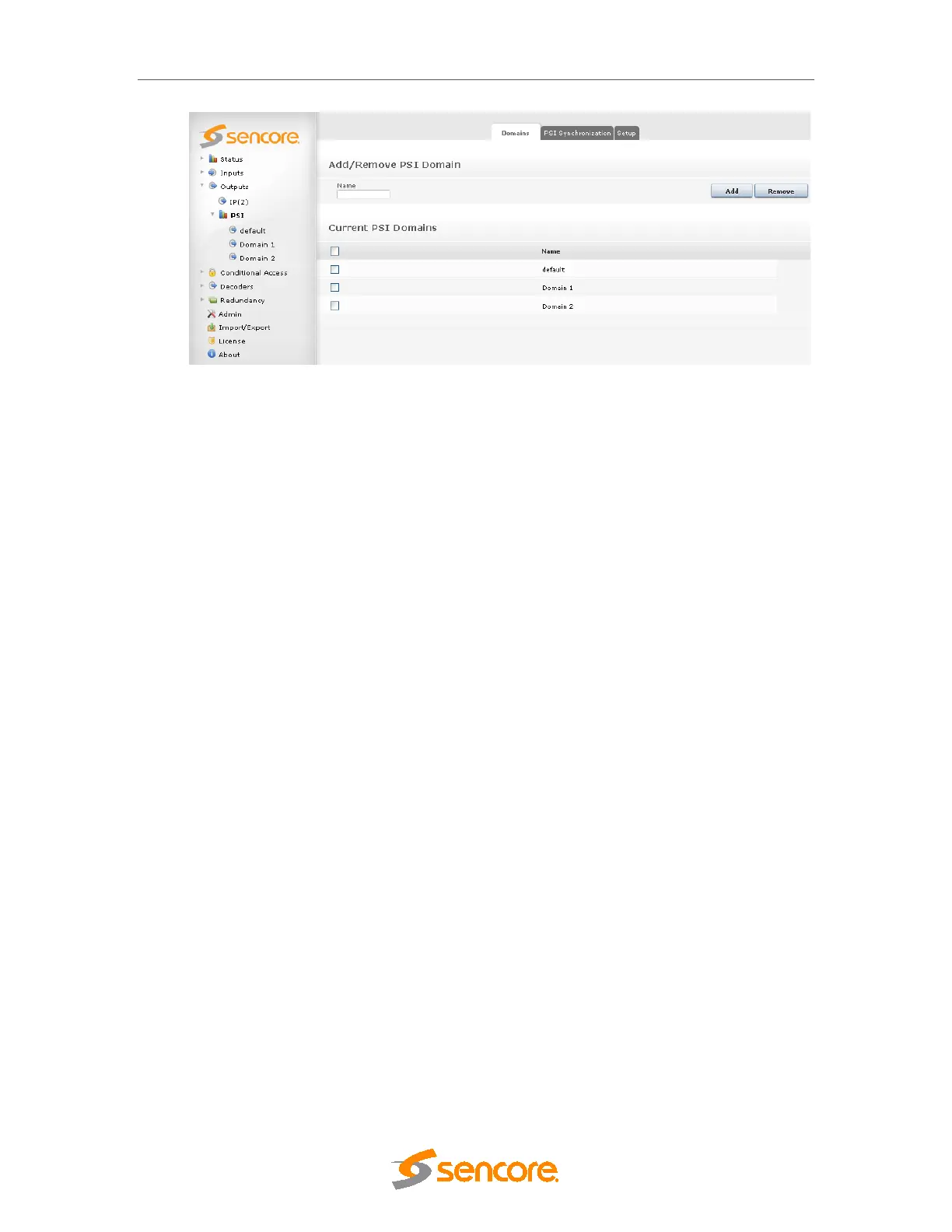

Figure 7.70- PSI Domains
This feature is not visible unless an additional output domain has been created. To create a
domain, select Outputs
PSI
Domains. Then, enter an appropriate name for your domain
in the Name field and click Add.
Once a new domain is created, the domain parameter will appear on the Transport tab (8.3.1).
It is possible to add multiple output domains.
8 Encoder and Transcoder Configuration
8.1 General information
In the Sencore platform, there are three types of Coder modules available. The encoder
module takes uncompressed digital signals from SDI input ports while the transcoder and
multiscreen transcoder modules take compressed digital signals from the input cards. The
output from all module types are compressed digital signals than can be routed to any of the
output cards in the unit.
Encoding capabilities (HD/SD and the number of channels) of the encoder and transcoder
modules can be changed via options and licenses. These modules are configured separately
but have the same video encoding parameters. The common parameters for the encoder and
transcoder are described in section 8.4 while section 8.6 covers the multiscreen transcoder
module and its specific configuration parameters.
The Coders view in the Navigation Pane gives a summary of the encoders and transcoders
present.
