DMG 3200/3100/3000 – User Manual
Page 217 (306)
Inverse Telecine
Detection
Check box for enable/disable of Inverse Telecine Detection.
PCR PID
PCR PID can be selected from below options
• As Source
• Video
• Separate (auto)
8.5.3 Video Parameters
The following parameters are available for video configuration:

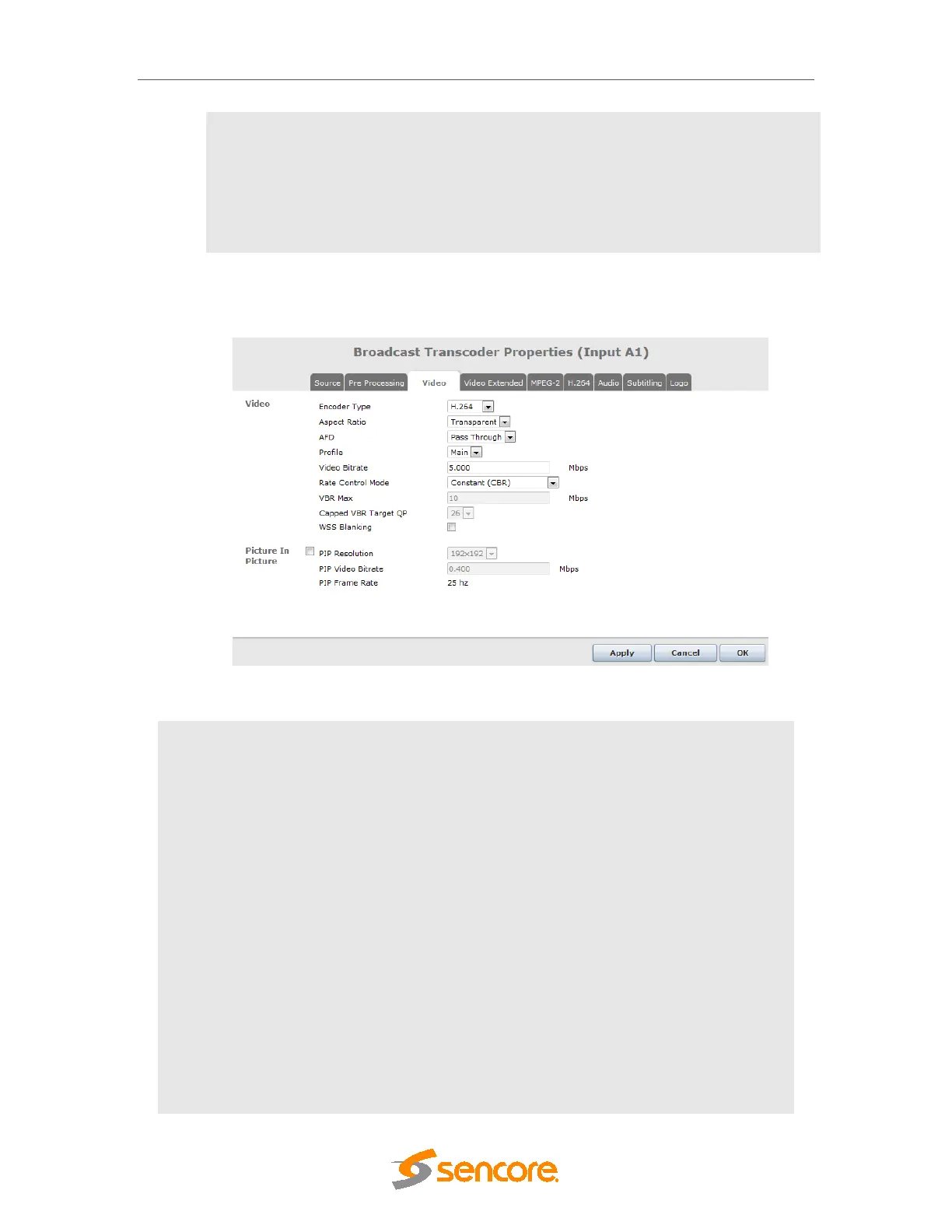

Figure 8.31 -
Universal Transcoder- dense broadcast video parameters
Encoder Type
Selects compression standard to use. Available options are: H.264
or MPEG-2.
Aspect Ratio
Selects the aspect ratio to be signalled in the output video:
• 16x9
• 14x9
• 4x3
• Transparent
AFD
AFD codes has below options:
• Pass through: Incoming AFD codes are not applied, but
passed through to video output stream.
• Apply: Incoming AFD codes are applied to video output
stream.
• Remove: Incoming AFD codes are not applied and
removed from the video output stream.
Profile
Selects the encoder profile to be used. The profile determines the
range of tools from the codec “toolkit” that the encoder is allowed to
