DMG 3200/3100/3000 – User Manual
Page 137 (306)

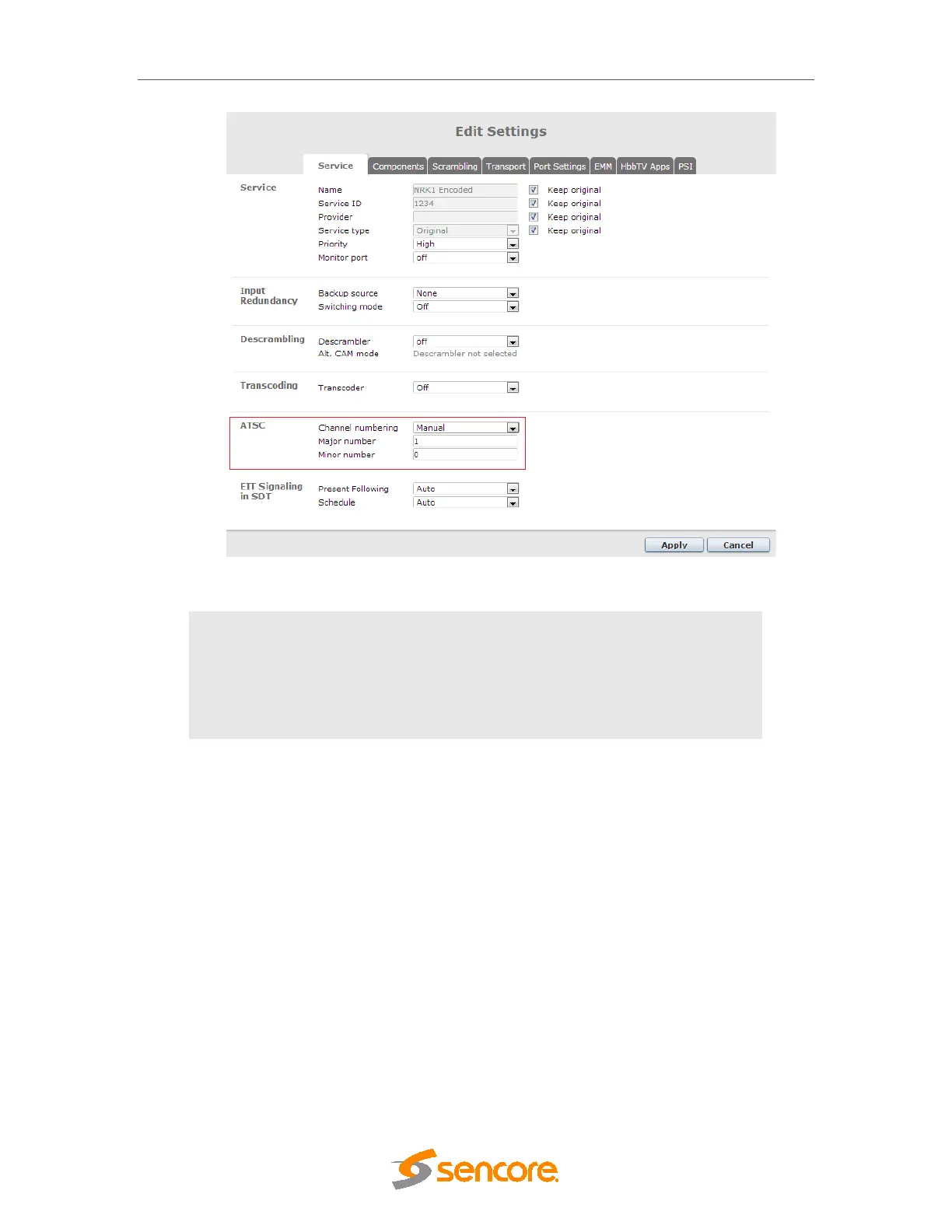

Figure 7.23 - ASTC Specific Service Parameters
Channel
numbering
Choose either Auto or Manual
Major number
The major number must be in the range [1, 1023]
Minor number
The minor number must be in the range [0, 999]
7.3.8 Components
The Components tab allows for the mapping of components through the unit, i.e. video, audio,
etc. This mapping includes manual and automatic modes. The Components Tab is identical for
both MPTS and SPTS.
