DMG 3200/3100/3000 – User Manual
Page 295 (306)

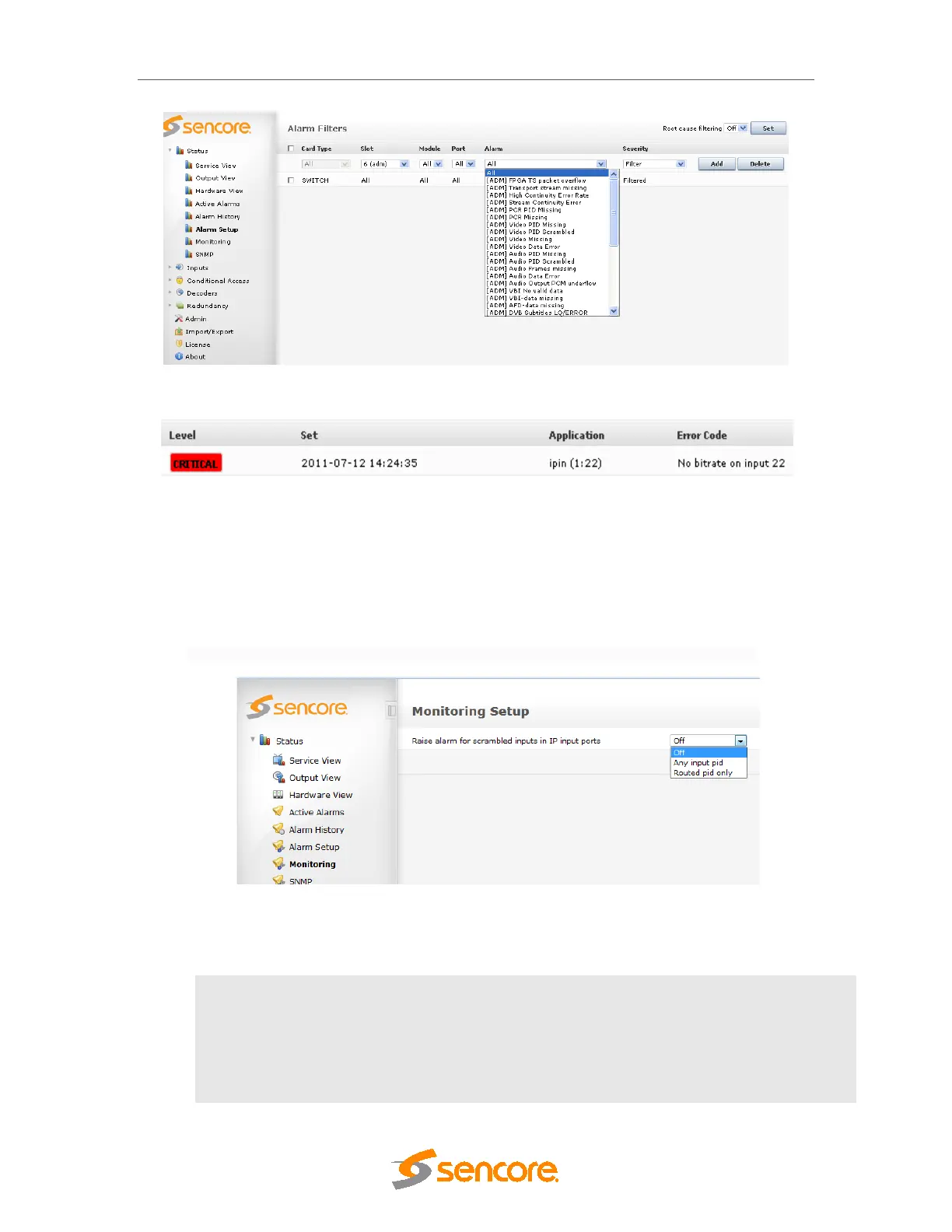

Figure 11.9 - Registered Alarms
Figure 11.10 – An alarm with specific alarm description
11.1.7 Root Cause Filter
The root cause filter removes alarms which are caused by alarms earlier in the streams, hence
eliminating distracting alarms. It is turned on and off in the Alarm Setup page.
11.1.8 Monitoring Setup
Raise alarm for scrambled inputs in IP input ports in below of following condition selected by user.
Figure 11.11– Monitoring Setup page
These are the following options supported:
Off
Never raise the alarm
Any input PID
Raise alarm if any of the PIDs are scrambled at the input
Routed PID only
Rise alarm if any of the PIDs are scrambled at the input
