DMG 3200/3100/3000 – User Manual
Page 155 (306)
7.4.6 COFDM Output Module
For COFDM modules, the Port Settings tab is shown below:
-

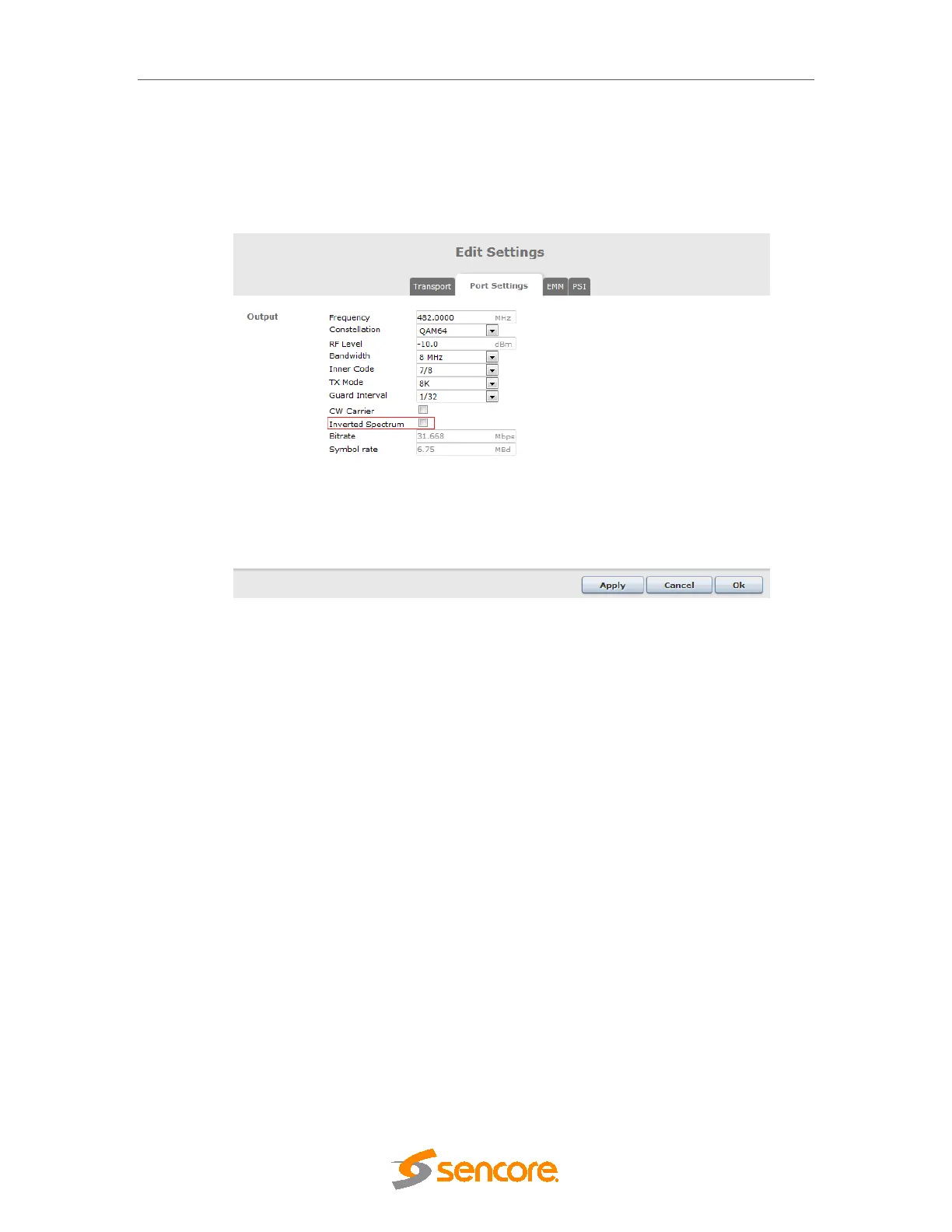

Figure 7.45 - Port Settings Tab for COFDM Modules
The COFDM output module outputs four modulated channels carrying one MPTS each. The
module is equipped with two physical RF connectors: the first two channels A and B, output on
the port marked as A+B; the last two channels C and D output on the port marked as C+D.
The Port Settings tab for a COFDM module allows for modulation settings of each individual
channel to be modified.
