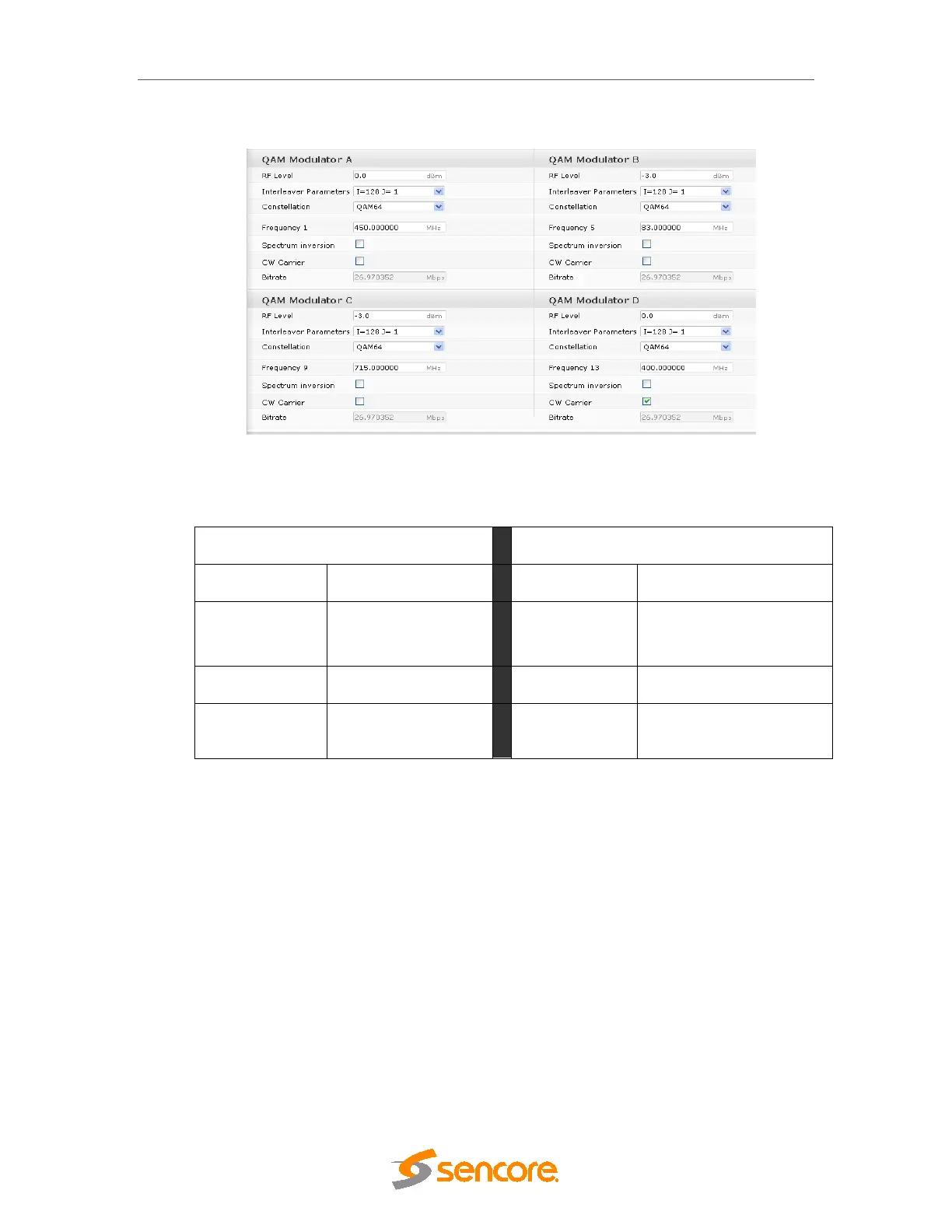

Figure 7.43- 16QAM Annex A/C Setup
Figure 7.44- 16QAM Annex B Setup
Listed below are the parameter limit-values for the QAM Output Module:
Annex A/C
Annex B
Symbol rate
4.7  7.0 MBd
RF Level
-12  +2.2dBm
RF Level
-12  +2.2 dBm
Interleaver
I
max
= 128
J
max
= 16
Constellation
QAM16  QAM256
Constellation
QAM64 & QAM256
Channel
spacing
5  8 MHz
