Sencore DMG 3200 - Analog Encoder Configuration

DMG 3200/3100/3000 – User Manual
Page 195 (306)
8.2.6 Analog Encoder Configuration
The Analog encoder status and configuration page is accessed by clicking on an encoder
module in Navigation Pane. The number listed here refers to the slot that the module is installed
in.

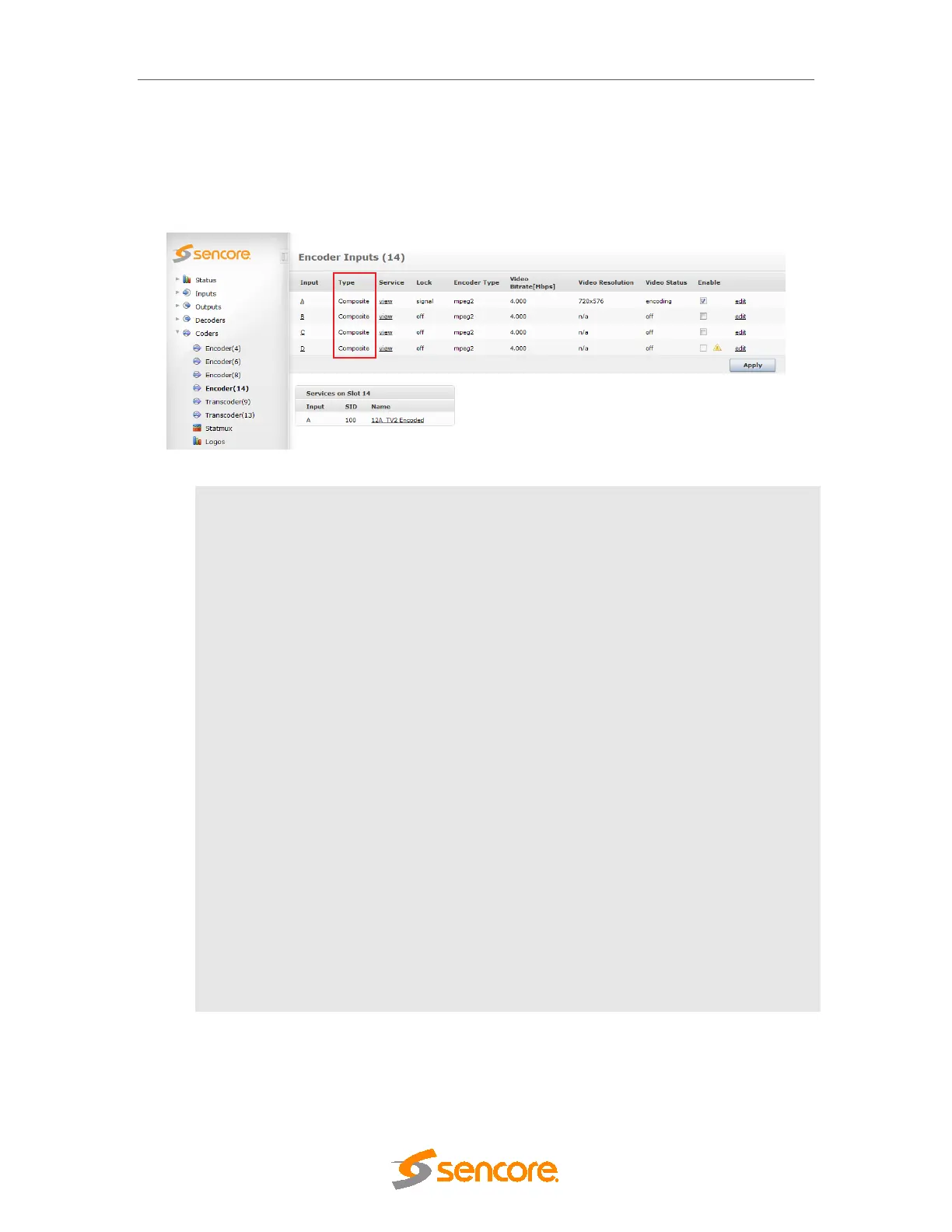

Figure 8.11: Analog Encoder status and configuration
Input
Port corresponding to Composite input. Detailed status can be
displayed by clicking on the Port.
Type
Signal Type : Composite
Service
Lists all services generated by the encoder channel, including the
service IDs and the service names.
Lock
Lock status on incoming composite. If locked, the received video
format is shown. The configured Video Format and Frame Rate must
match the incoming composite video format.
Encoder Type
Configured video encoder standard; available standards are MPEG-2
or H264 (MPEG-4 part 10)
Video Bitrate
[Mbps]
Configured video bit-rate.
Video Resolution
Encoded video resolution; Depends on the configured video format
and horizontal rescaling. Horizontal Resolution x Vertical Resolution.
Video Status
Video encoder status:
encoding – normal operation
stopped – error (also status during reconfiguration
off – encoder is disabled
Enable
Enable or disable the encoder.
Edit
Edit option to change the encoder parameters.
