5.4.4 COFDM / DVB-T Input
The COFDM / DVB-T input module can receive up to four individual COFDM frequencies. The
COFDM / DVB-T input modules comes in 2 HW versions; a 2 slot version referred to as
COFDM input and a 1 slot version referred to as DVB-T input. To configure the module:
• Switch to the Inputs node in the Navigation Pane
• Select the COFDM module you want to configure and the module configuration window
will be displayed. Services available on all four COFDM input frequencies will be listed
in this view.

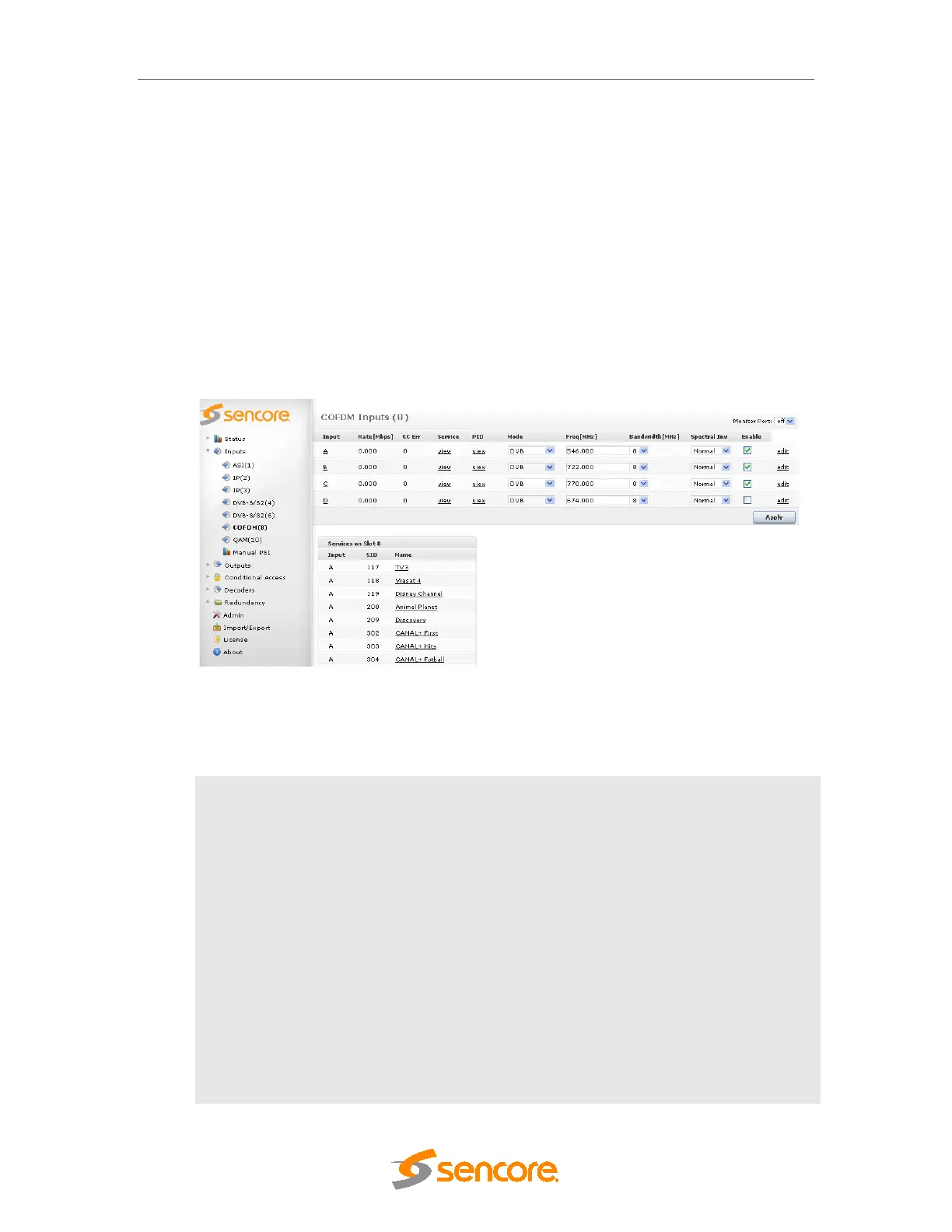

Figure 5.25 - COFDM Input
The COFDM / DVB-T input window shows all configurable settings as well as the current bitrate
and service information. The following parameters are available:
Input
Port on the COFDM input module
Rate [Mbps]
Incoming data rate
CC Err
Continuity Counter Error – indicates that one or more packets are lost
RF Freq [MHz]
Specify the COFDM frequency in MHz, valid range is 47 – 862Mhz.
Bandwidth [MHz]
Specify the bandwidth, select from 6, 7, or 8MHz
Spectral Inv
Specify the Spectral Inversion, choose from Auto, Normal, or Inverted
Mode
Select one of the following modes:
o DVB
o DVB (SDT)
o MPEG
