Input
Port on the DVB-T2 input module
Rate [Mbps]
Incoming data rate
CC Error
Number of Continuity Counter (CC) errors detected on all input ports
since last reset.
CC errors indicate that one or more packets are lost.
Service
Number of services present in the transport stream
PID
Listing all input PIDs for each input.
Mode
The mode of the input stream , either:
o DVB
o MPEG
o ATSC
o DVB (SDT)
o OFF
Modulation
Select any of the following modes.
• DVB-T
•
DVB-T2
Frequency
Specify the DVB-T/T2 frequency in MHz, valid range is 42 – 870Mhz.
Bandwidth [MHz]
Specify the bandwidth, select from 6, 7, or 8MHz
New T2 Module can specify the bandwidth 5, 6, 7, or 8 Mhz.
Spectral Inv.
Checking this check box activates the spectral Inversion.
PLP ID
Specify the PLP from the input.
Enable
Enable the corresponding input port.

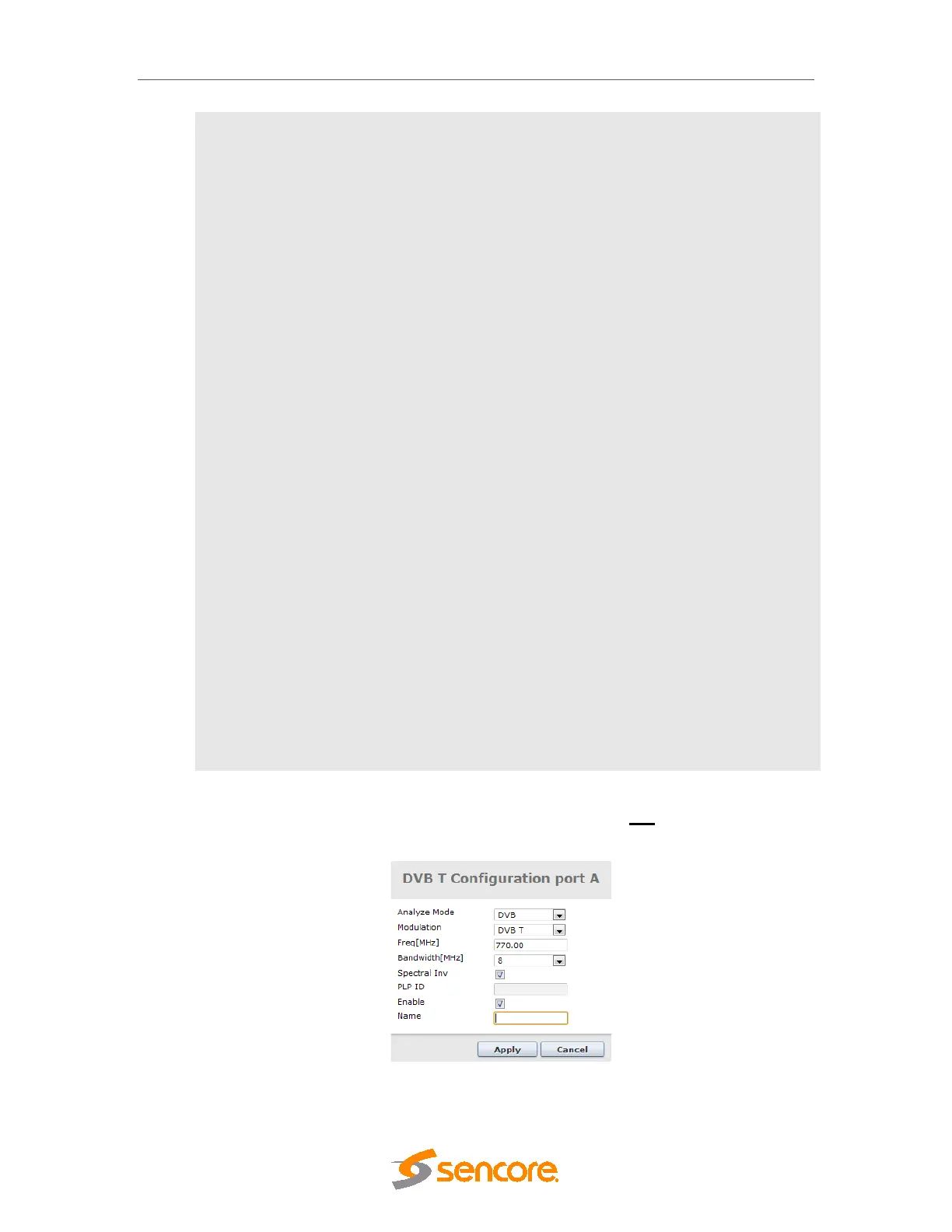

The above list of parameters can be configured by clicking on the edit link to the right of each
input. The pop up dialog below will be displayed:
