DMG 3200/3100/3000 – User Manual
Page 90 (306)
Figure 5.47 – DVB-T/ Input Port Configuration
Name
This parameter allows for each port in a module to be labeled. This label is
visible as a tooltip when the mouse cursor hovers over the port. Port
names are shown in the alarms when a non-empty string is set as the
name..
The status parameters for the DVB-T/T2 module are shown in the figure below. Click on the
letter representing the input channel (A, B, C or D) to display the status parameters for the
specific input port.

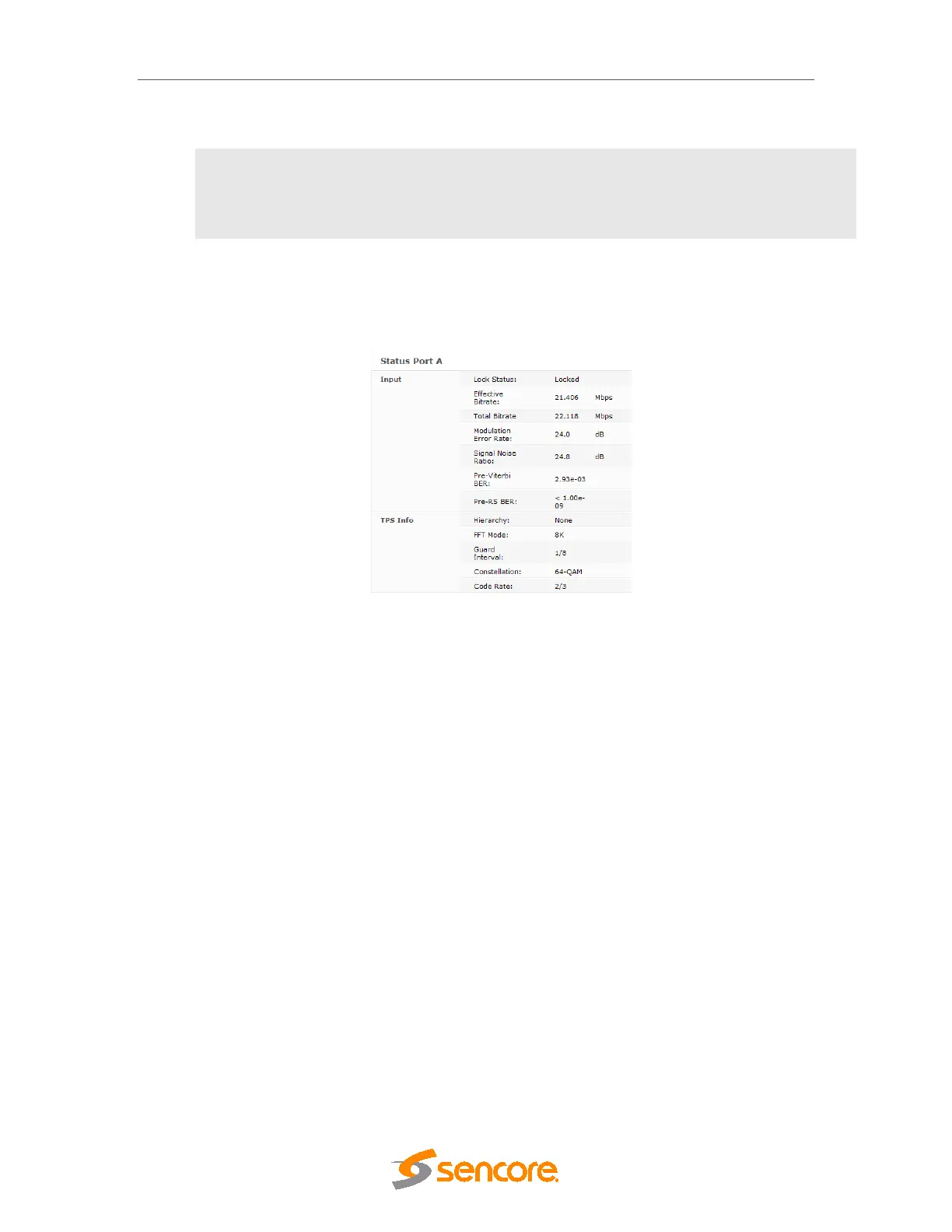

Figure 5.48 – DVB-T Status Parameter view
