DMG 3200/3100/3000 – User Manual
Page 133 (306)
The PSI tab allows the base values defined in the Outputs->PSI node to be overwritten for
each specific output stream. The list in the table reflects the currently selected mode: MPEG,
DVB, ATSC or Default.

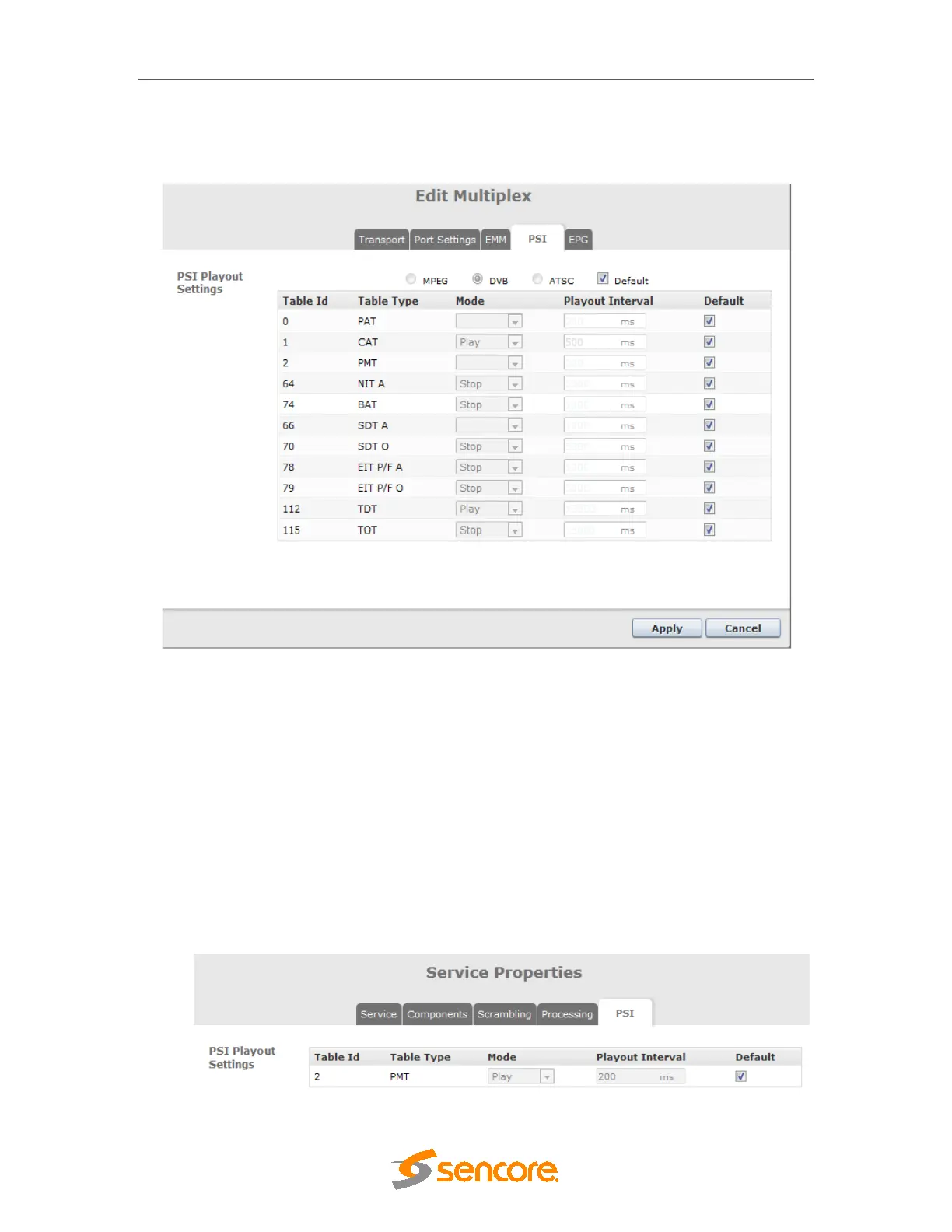

Figure 7.19- PSI Tab for IP Modules
To modify any of the base values (default values), disable Default and set the values as
needed.
If the change in base value is applicable to all outputs, it is simpler and neater to change it from
the PSI node in the Navigation Pane, where the base values are configured. A change in the
base value from this page will automatically propagate to all outputs applicable.
The PSI tab is identical for both MPTS and SPTS.
7.3.5.1 PSI configuration for services in an MPTS
Individual services within an MPTS have a PSI tab that allows for the PMT’s Mode and Playout
Interval to be modified.
