2.1.4.4 4RU chassis with 400W DC (-48Volt) Power supply
The chassis can be hold two power supplier for redundancy and has independent power inlets
for the two supplies.

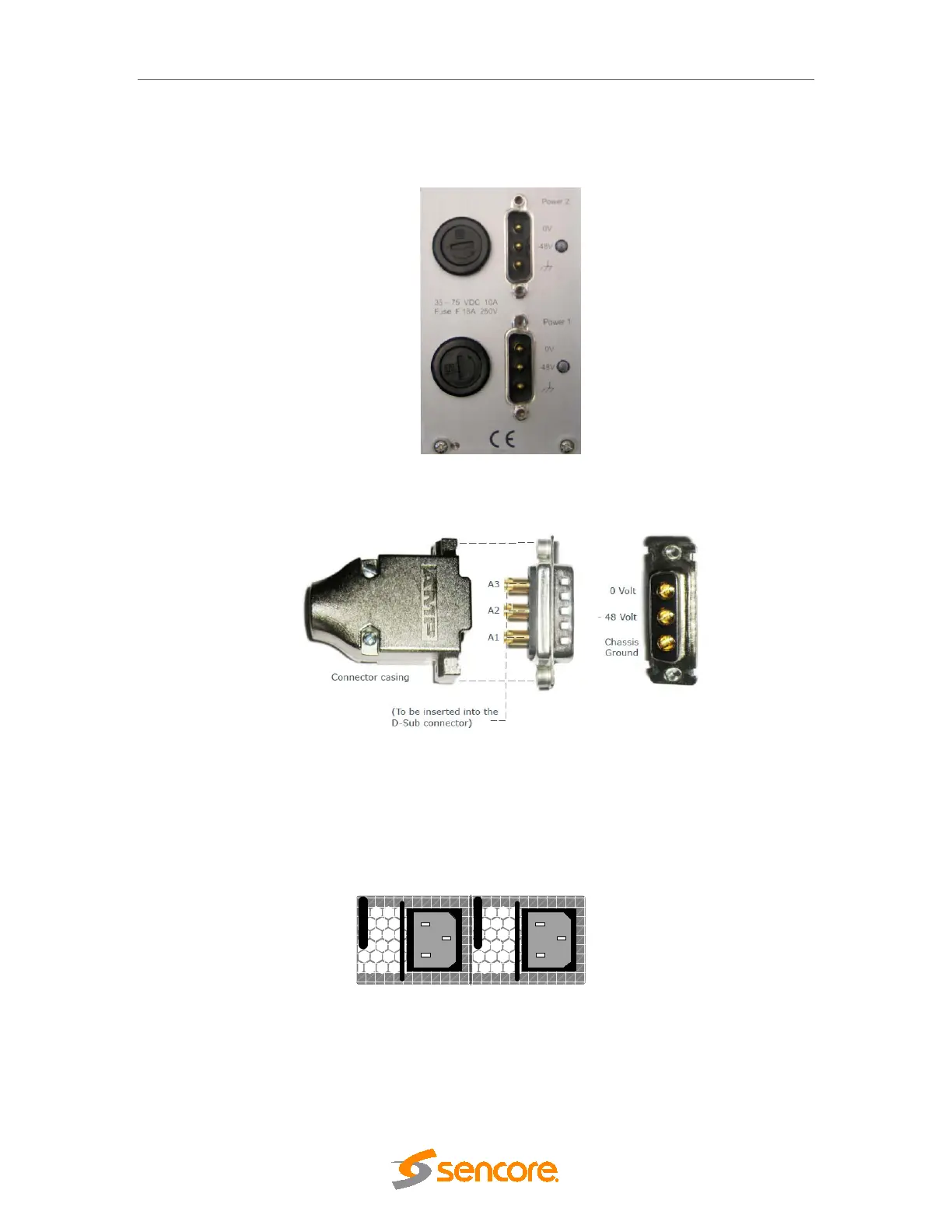

Figure 2.8– Front plate of dual 48V Power Supply in a DMG 3000
Figure 2.9 - Layout of 48V DC Power Supply Connector
2.1.4.5 1RU chassis Product model DMG 3200 with AC power
The power input connectors are located at the back of the unit.
Figure 2.10 Power Input Connector for 1RU Chassis, product models DMG 3200 with AC power
