In order to assign a transcoder resource to a stream, you will first need to configure an output
service. Transcoding is then enabled by selecting an available transcoder channel on the
Service tab of the Service Properties page.
The parameters for the Transcoder channel as described in 9.3 can be configured before or
after the Transcoder is selected on an output.
The Name, Service ID, Service type and PID values of the input stream are all kept
unchanged unless it is changed in the Service Properties page. The PSI/SI will be changed for
the PIDs that are changed by the Transcoder.

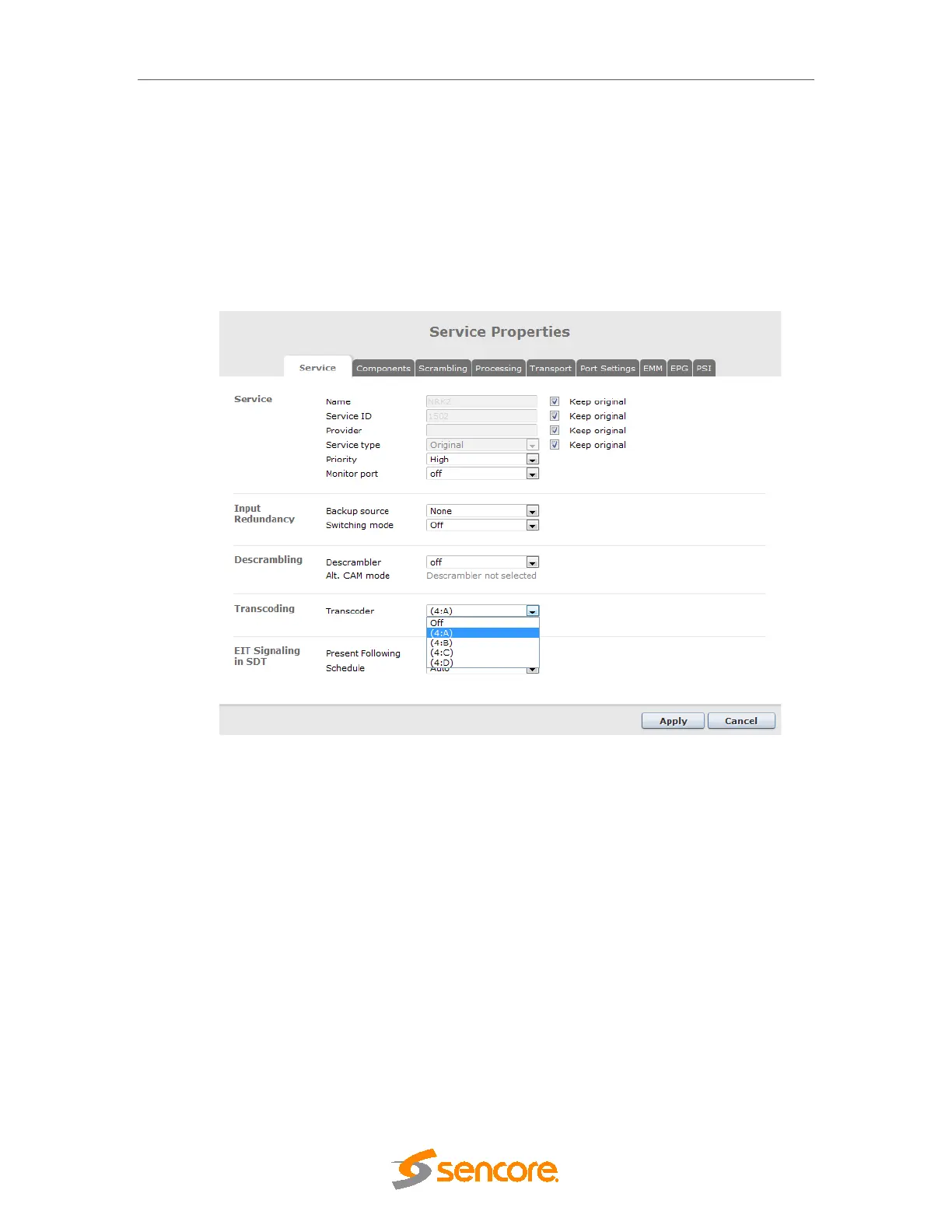

Figure -8.20 ā Assigning a transcoder to an output service
