DMG 3200/3100/3000 – User Manual
Page 213 (306)
Block A
Block B
Block C
Block D
Any of these Block can be configured from below configurations
• Off
• 1xHD->HD+PIP (HD/SD input to HD/SD output + PIP)
• 1xSD->HD+PIP (SD input to HD/SD output + PIP)
• 1xHD->SD+PIP (HD input to SD output + PIP)
• 3xSD->SD+PIP(3 SD inputs to 3 SD outputs + 3 PIP)
• 4xSD->SD (4 SD inputs to 4 SD outputs). Requires Dense SD
license
The HD modes support SD inputs and outputs with horizontal resolution from 704 to 720. For
SD video with lower horizontal resolutions than 704, use one of the SD modes.

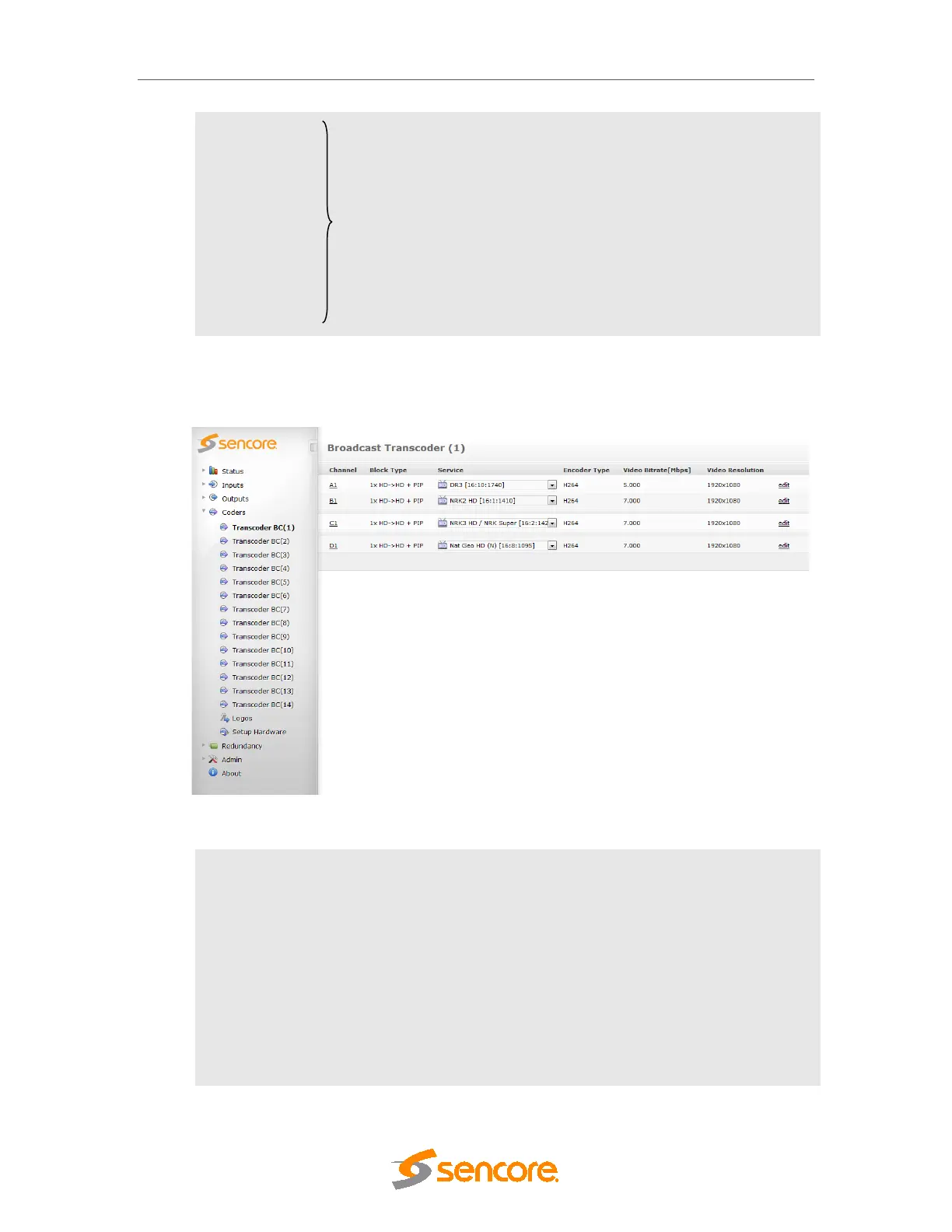

Figure 8.28 -
Universal Transcoder- dense broadcast status configuration
Channel
Channel number. Detailed status can be displayed by clicking on the
Port
Block Type
Block Type. Detailed status comes from setup hardware setting
Service
The service name of the service routed to the Transcoder. There is
drop down option to service the service.
Encoder Type
Configured encoder standard; available standards are MPEG-2 or
H264
Video Bitrate
Configured video bit-rate of the transcoded video.
