DMG 3200/3100/3000 – User Manual
Page 243 (306)

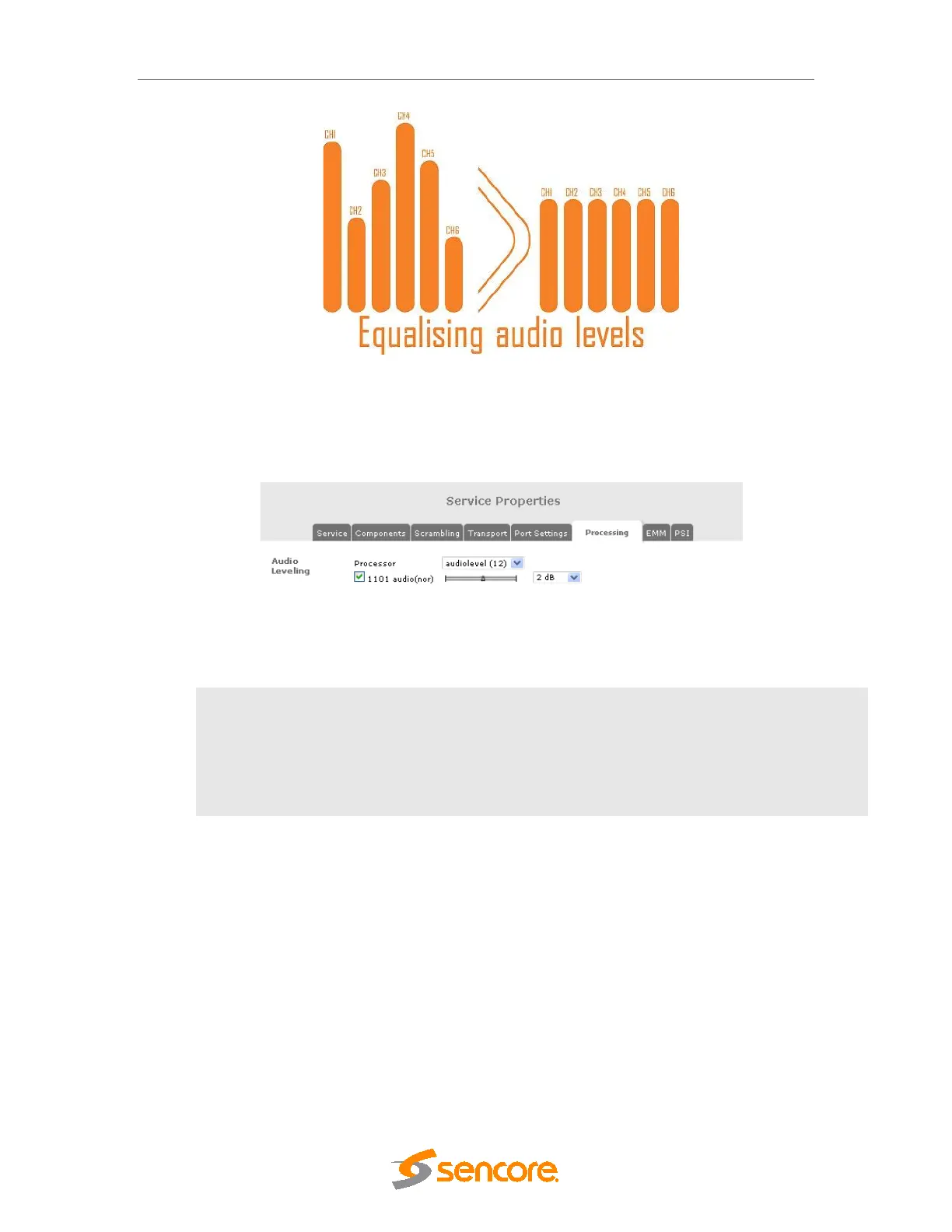

Figure 9.1 - Audio Leveling Effect
The audio leveling card is intended to be used with all available outputs.
The audio leveling parameters are configured as part of the service output setup.
Figure 9.2 – Setting up Audio Leveling
The following parameters are available:
Processor
Select the audio leveling card to route the input stream through – the
unit supports multiple cards per chassis.
Check box
Enable the audio leveling algorithm
Slider/Dropdown box
Adjustment level – the range is +/- 30dB, in steps of 2dB
