DMG 3200/3100/3000 – User Manual
Page 275 (306)

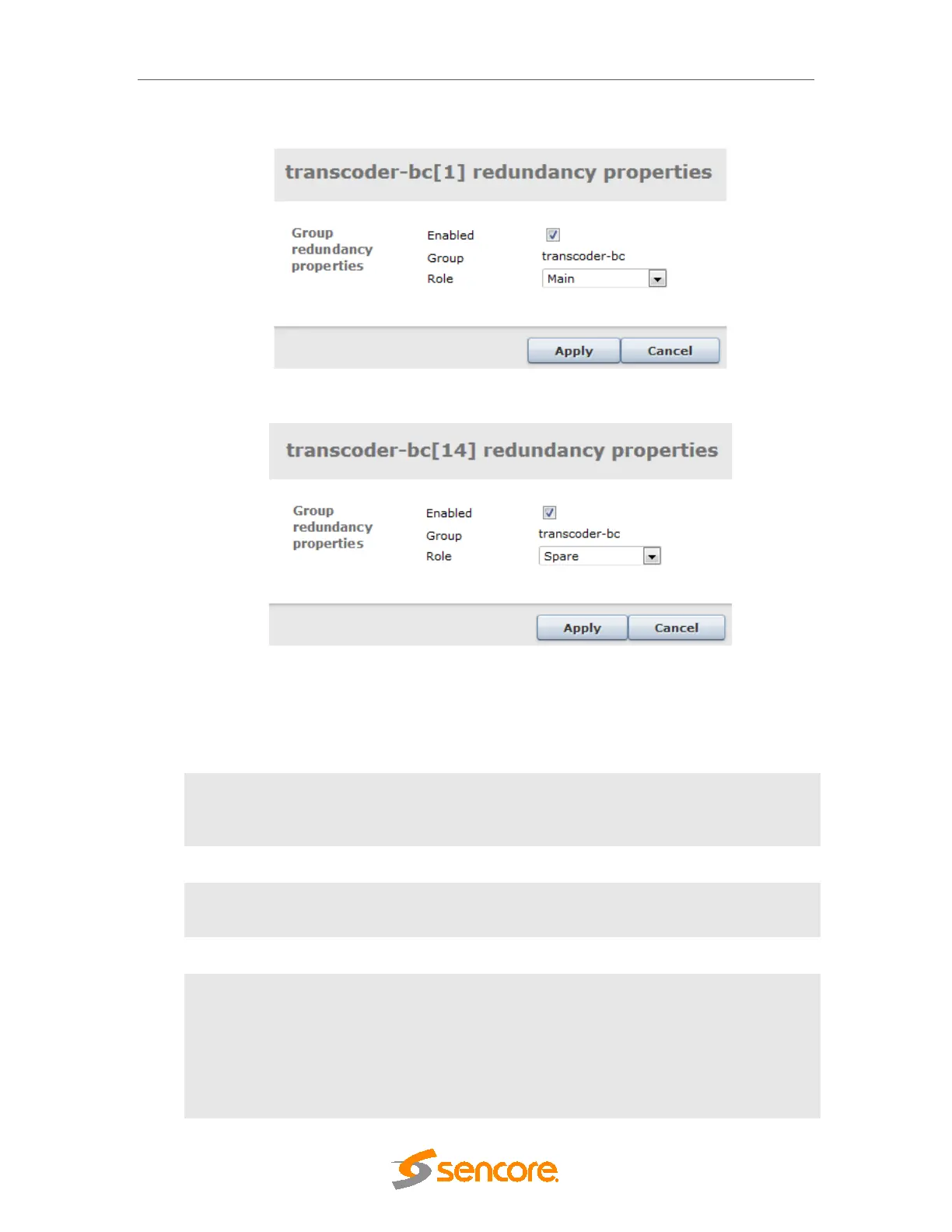

Figure 10.25 – Redundancy group properties-MAIN Universal Transcoder- Broadcast
Figure 10.26 – Redundancy group properties-SPARE Universal Transcoder- Broadcast
Following parameters are present under redundancy properties.
Group redundancy properties-
Enabled
When checked this card is part of the redundancy group.
Role Either of one: Main/Spare
Input switch properties for Main Card-
Channel A/B
This defines which input port on the switch receives the same
signal as this port on the card.
Input switch properties for Spare Card-
Connected to
This is the output port of the switch which is connected to the
input port of the spare encoder.
Default input
This is the source port that will be routed to the encoder port
when the encoder is not being actively used due to a system
redundancy switch. By changing this setting it is possible to
route a test signal to the encoder while not in use.
