DMG 3200/3100/3000 – User Manual
Page 31 (306)
The following screen will appear though the exact configuration of the unit will vary.

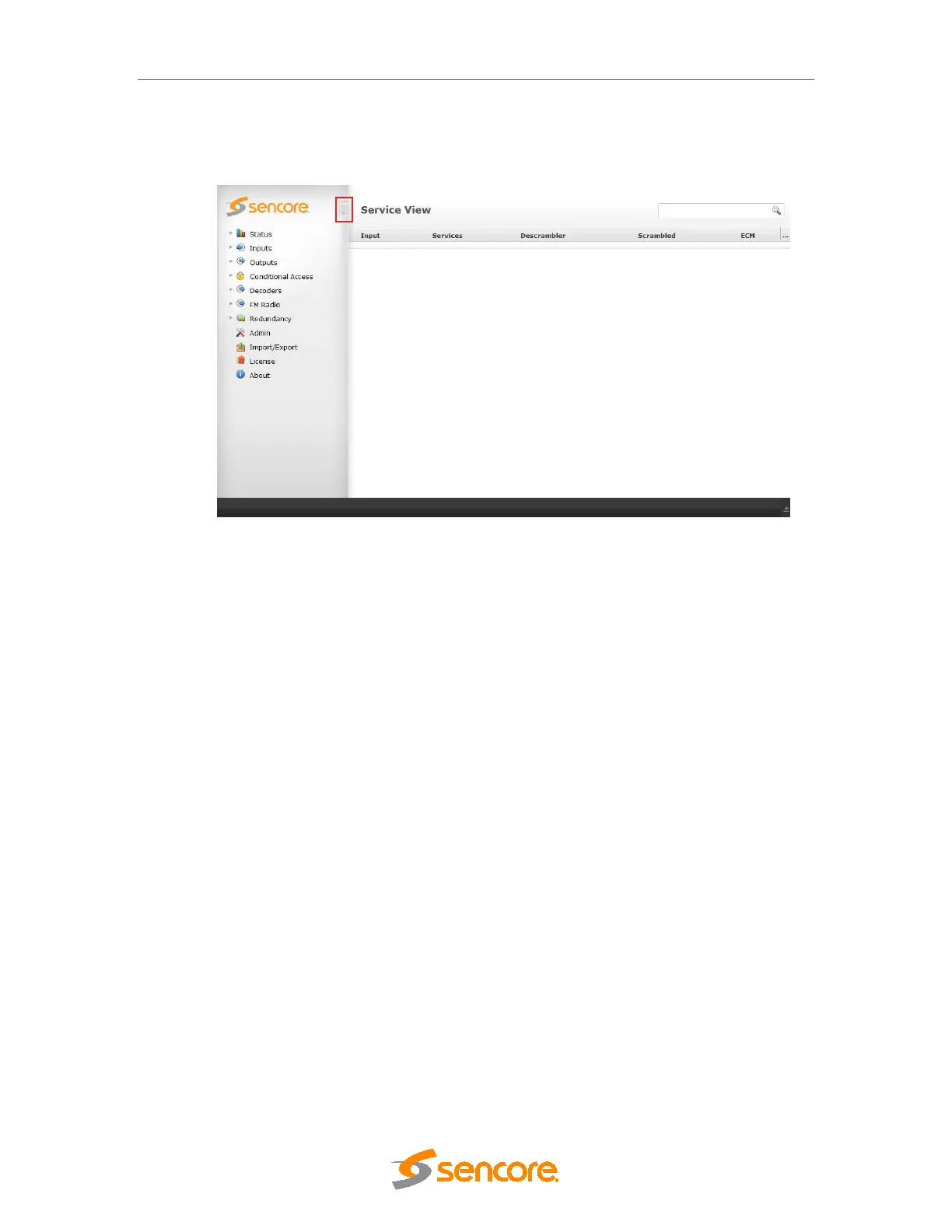

Figure 4.1 - Web Home Page
The screen area is divided into several sub-areas: a Navigation Pane on the left, a main
display page on the right and footer at the bottom of the page. The Navigation Pane is used to
access various nodes, while the footer displays alarms. Please note that the alarm area can be
expanded by clicking on the arrow in the right bottom corner.
The button highlighted in the above figure toggles between the auto-hiding and always visible
Navigation Pane modes. In auto-hide mode, the Navigation Pane frees up the space for the
main pane. This is useful not only for devices with smaller screens such as netbooks but also
for viewing large tables of data on the main pane.
By default, this feature is disabled, and the Navigation Pane is always visible.
