Symbol Rate
[MBd]
Specify the Symbol Rate in MBd, valid range is 0.452 – 7.23 MBd
Modulation
Specify the type of modulation, select from one of the following:
o QAM16
o QAM32
o QAM64
o QAM128
o QAM256
Spectral Inv
Specify the Spectral Inversion, choose from Auto, Normal, or Inverted
Enable
Enable the corresponding input port
Clicking the edit link on the right displays the dialog below, allowing for the Mode, Freq [MHz],
Symbol Rate [MBd], Modulation, Spectral Inv, Name, and Enable parameters to be edited.

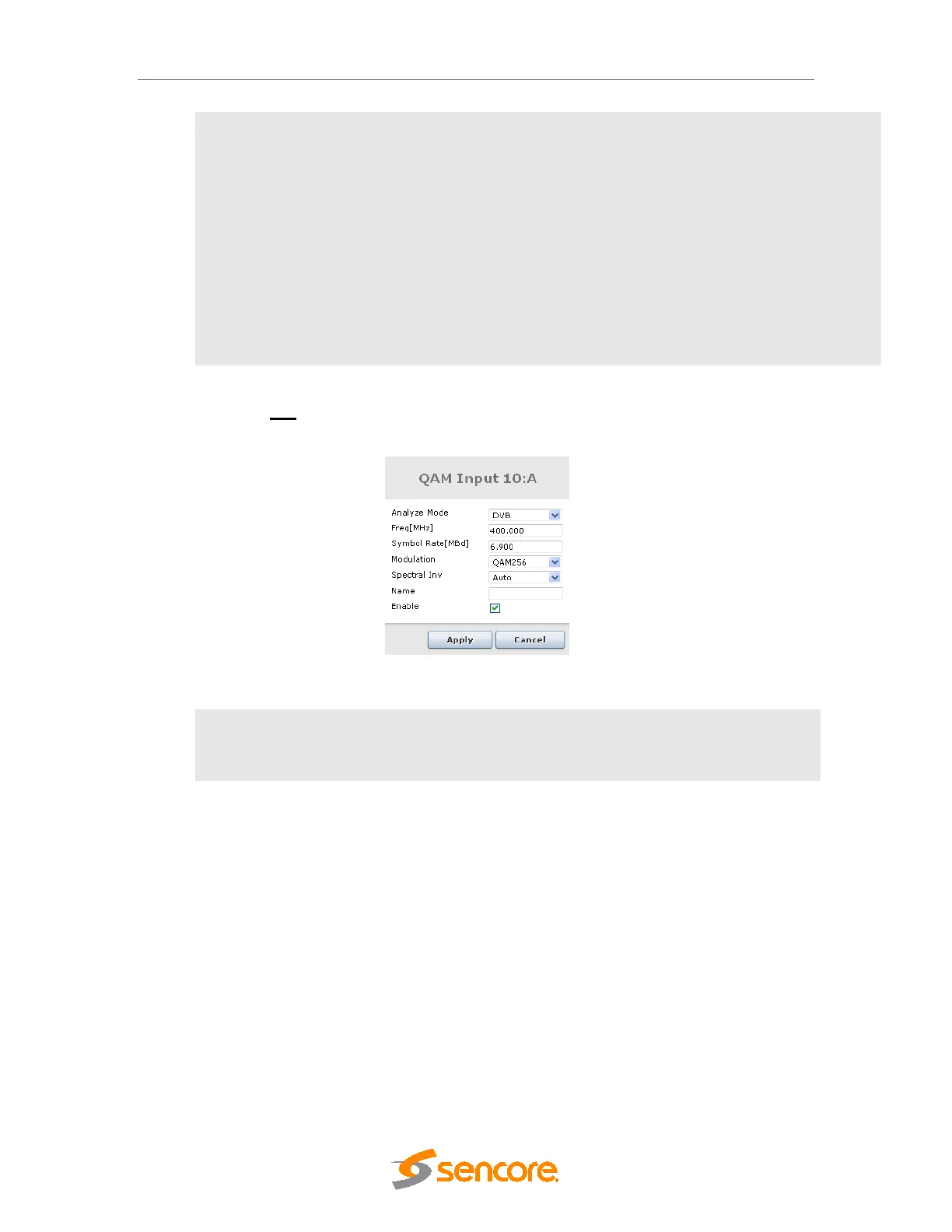

Figure 5.23 - QAM Edit Dialog
Name
This parameter allows for each port in a module to be labeled. This label is
visible as a tooltip when the mouse cursor hovers over the port. Port names
are shown in the alarms when a non-empty string is set as the name..
The status parameters for the QAM module are shown in the figure below. Click on the letter
representing the input channel (A, B, C or D) to display the status parameters for the specific
input port.
