ECDIS-E User Guide Charts
65934012 4-19
Export 7Cs Hardware ID
To export a 7Cs Hardware ID file do the following:
1. Insert an external device, such as a USB memory stick, the USB
port at the front of the trackball.

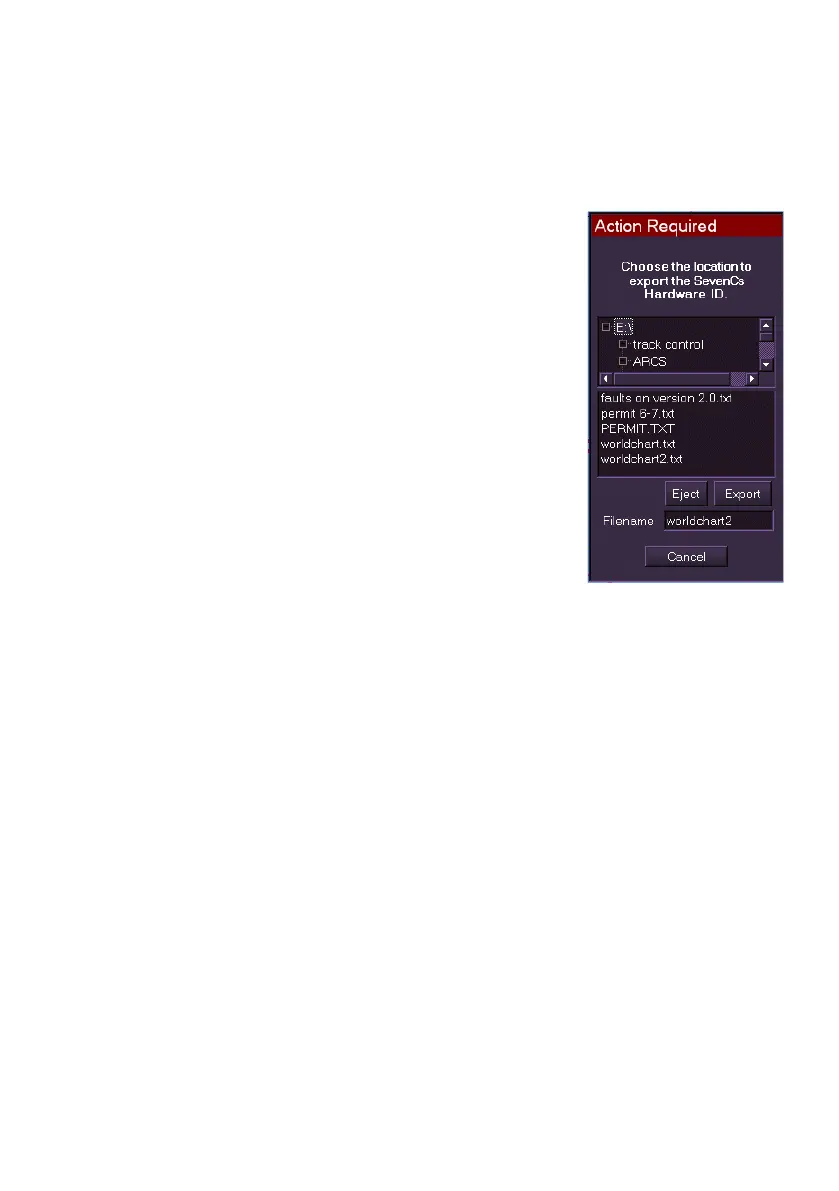

2. Click on the Export 7Cs Hardware ID
button. The subsequent window displays the
external disk drive and prompts to choose
the location to export the hardware ID file.
3. Navigate to the location where you want the
file exported to by clicking on the
+ button to
the left of the directory folder.
4. To enter a name for the hardware ID file click
in the Filename field and enter a name using
the screen keypad.
5. With the export location highlighted and a
name entered click the Export button, the file
is exported to the location as a .txt file. If
successful a temporary prompt is displayed
confirming that the file has been exported
with the selected location detailed in the prompt.
6. To cancel the export operation click the Cancel button. The Tools
menu re-appears.
7. When the file has been exported, select the route directory (i.e.
E:\), click the Eject button and remove the external device from the
PC.
