Charts ECDIS-E User Guide
4-20 65934012
Export ARCS User Permit
To export an ARCS User Permit do the following:
1. Insert an external device, such as a USB memory stick, the USB
port at the front of the trackball.

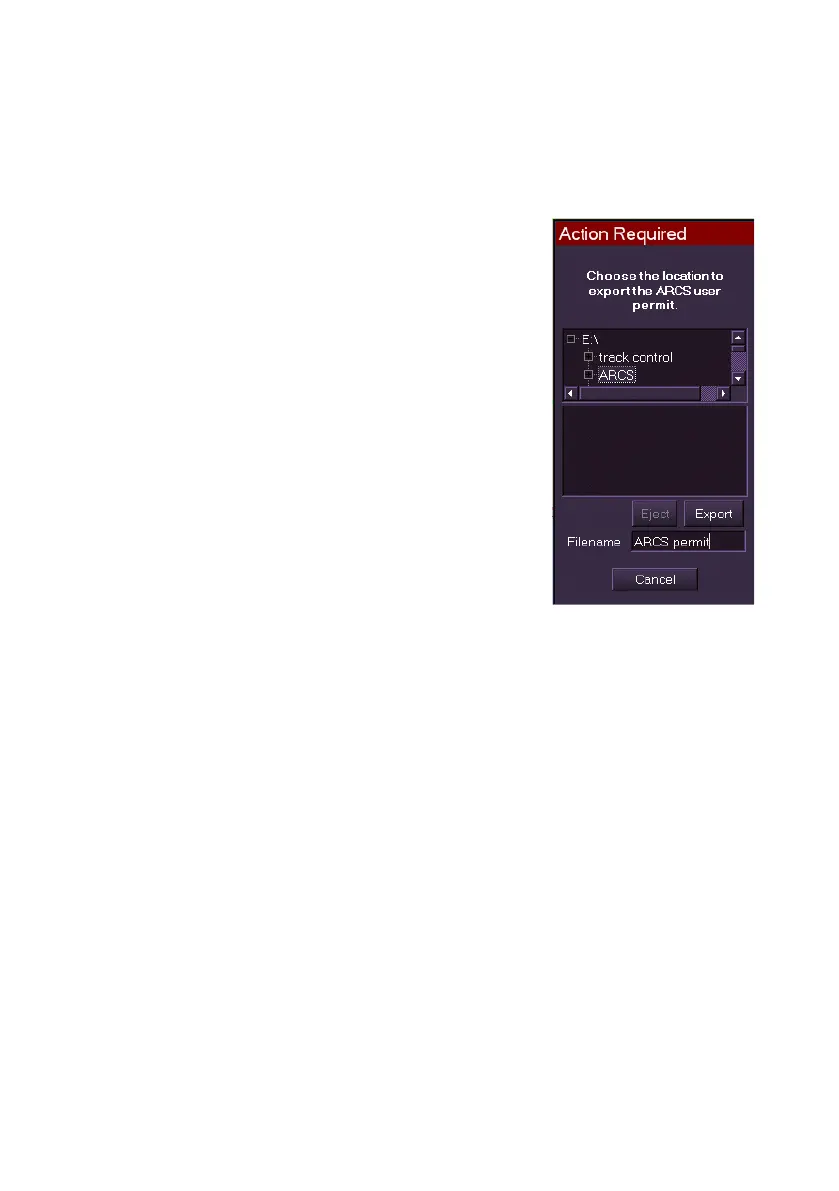

2. Click on the Export ARCS User Permit
button. The subsequent window displays the
external disk drive and prompts to choose
the location to export the permit file.
3. Navigate to the location where you want the
file exported to by clicking on the
+ button to
the left of the directory folder.
4. To enter a name for the hardware ID file
click in the Filename field and enter a name
using the screen keypad.
5. With the export location highlighted and a
name entered click the Export button, The
ARCS user permit is generated based on
information in the Sperry security block. The
user permit is a 16 character text file.
If successful a temporary prompt is
displayed confirming that the file has been exported with the
selected location detailed in the prompt.
6. To cancel the export operation click the Cancel button. The Tools
menu re-appears.
7. When the file has been exported, select the route directory (i.e.
E:\), click the Eject button and remove the external device from the
PC.
