RM0440 General-purpose timers (TIM15/TIM16/TIM17)
1445

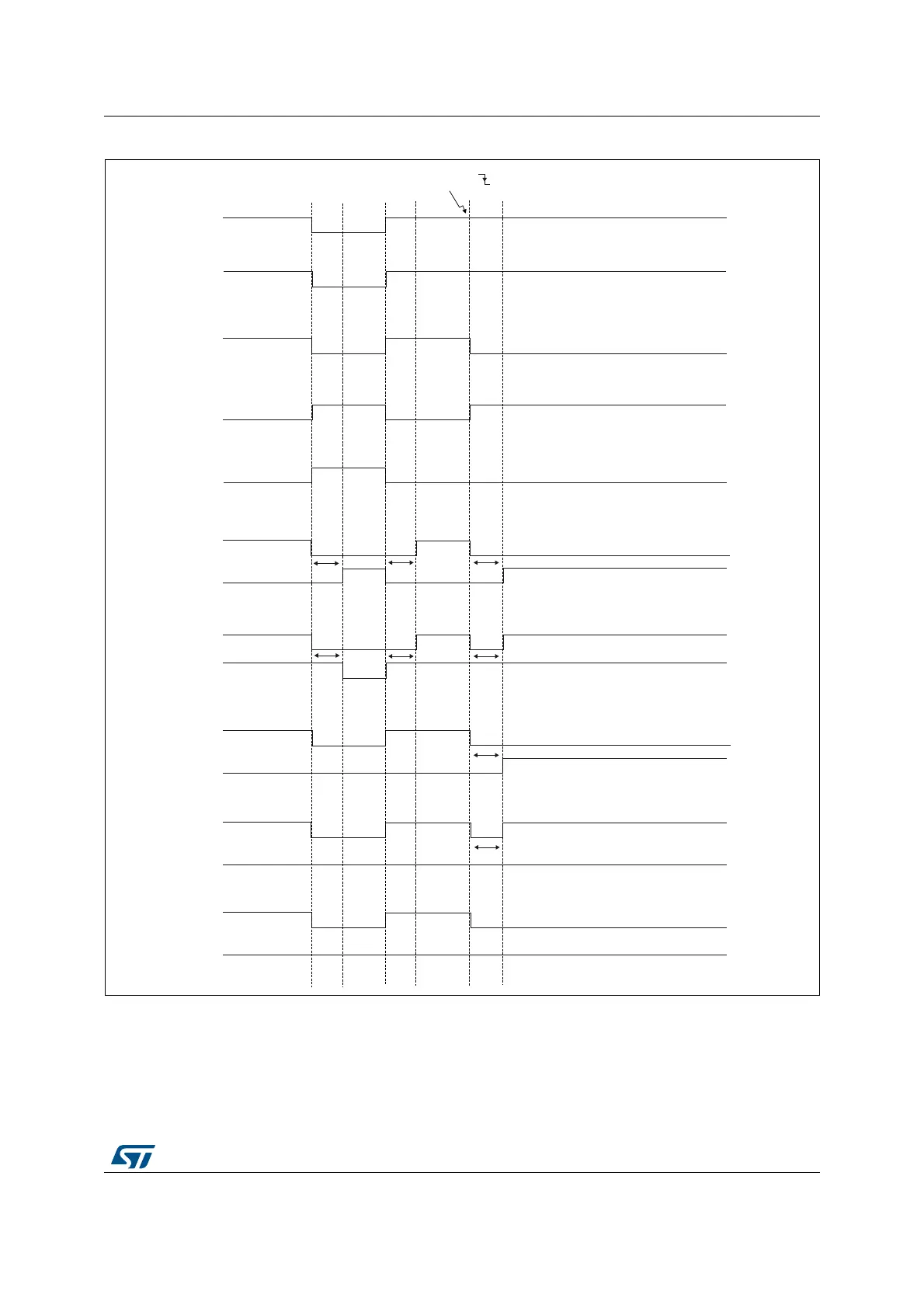

Figure 470. Output behavior in response to a break event on tim_brk
30.4.16 Bidirectional break input
The TIM15/TIM16/TIM17 are featuring bidirectional break I/Os, as represented on
Figure 471.
MSv62337V1
delay delay delay
delay delay delay
delay
delay
tim_ocxref
tim_ocx
(tim_ocxn not implemented, CCxP=0, OISx=1)
tim_ocx
(tim_ocxn not implemented, CCxP=0, OISx=0)
tim_ocx
(tim_ocxn not implemented, CCxP=1, OISx=1)
tim_ocx
(tim_ocxn not implemented, CCxP=1, OISx=0)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, OISx=0, CCxNE=1, CCxNP=0, OISxN=1)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, OISx=1, CCxNE=1, CCxNP=1, OISxN=1)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, OISx=0, CCxNE=0, CCxNP=0, OISxN=1)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, OISx=1, CCxNE=0, CCxNP=0, OISxN=0)
tim_ocx
tim_ocxn
(CCxE=1, CCxP=0, CCxNE=0, CCxNP=0, OISx=OISxN=0 or OISx=OISxN=1)
BREAK (MOE )
