RM0440 Rev 4 1381/2126
RM0440 General-purpose timers (TIM15/TIM16/TIM17)
1445
The following procedure must be followed to re-arm the protection after a break event:
• The BKDSRM bit must be set to release the output control
• The software must wait until the system break condition disappears (if any) and clear
the SBIF status flag (or clear it systematically before re-arming)
• The software must poll the BKDSRM bit until it is cleared by hardware (when the
application break condition disappears)
From this point, the break circuitry is armed and active, and the MOE bit can be set to re-
enable the PWM outputs.

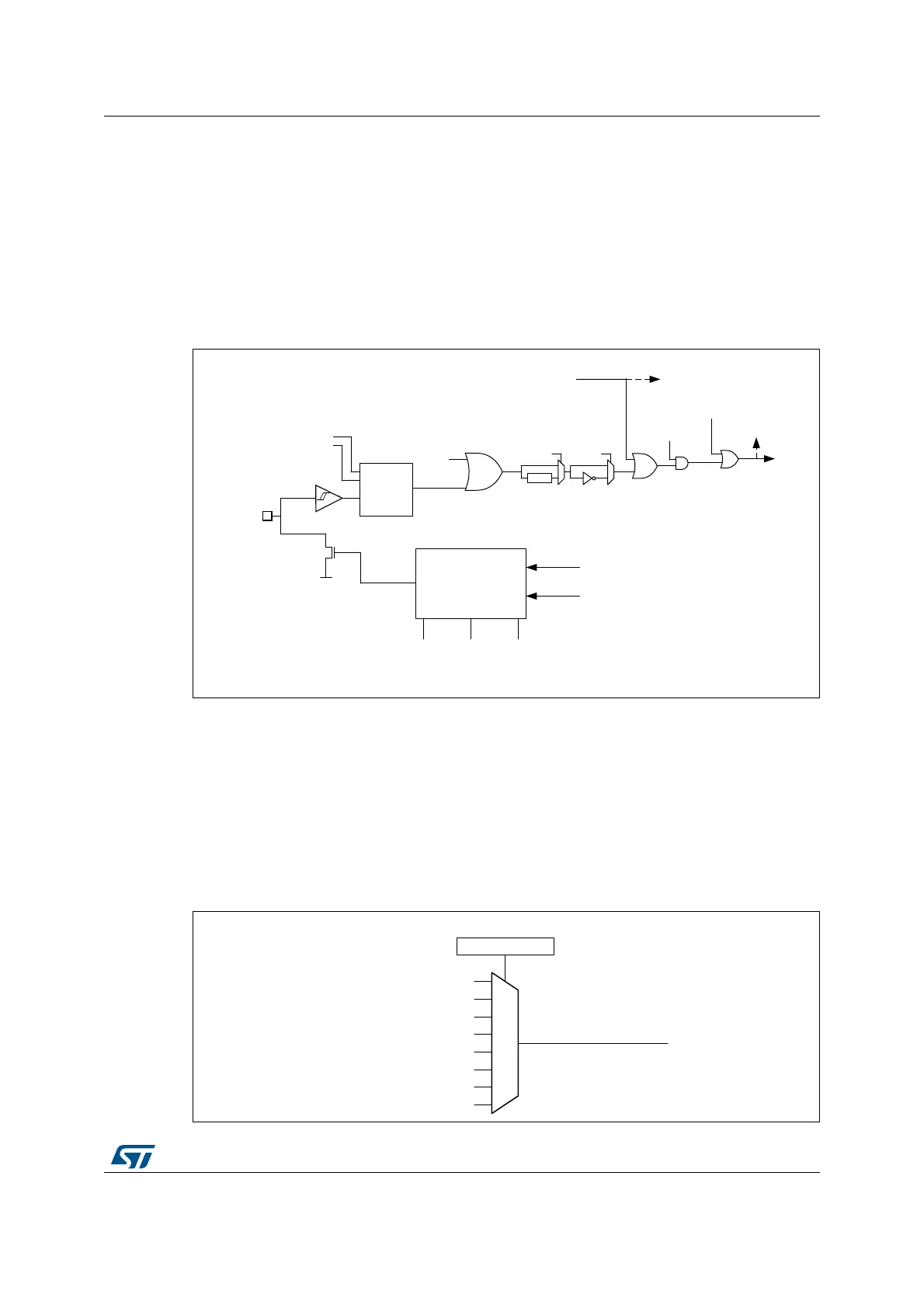

Figure 471. Output redirection
30.4.17 Clearing the tim_ocxref signal on an external event
The tim_ocxref signal of a given channel can be cleared when a high level is applied on the
tim_ocref_clr_int input (OCxCE enable bit in the corresponding TIMx_CCMRx register set to
1). tim_ocxref remains low until the next update event (UEV) occurs. This function can only
be used in Output compare and PWM modes. It does not work in Forced mode.
The tim_ocref_clr_int input can be selected among several inputs, as shown on Figure 472
below.
Figure 472. tim_ocref_clr input selection multiplexer
MSv62340V1
BKIN inputs from
AF controller
BKF[3:0]
Filter
BKP
BKE
BRK
request
BIF flag
SBIF flag
tim_sys_brk
tim_brk_cmp1..7
AF
controller
mode control logic
MOE BKBID BKBDSRM
tim_brk request
System break request
Bidirectional
Break I/O
TIM_BKIN
Other break inputs
Application break requests
Vss
Bidirectional
AF input
(active low)
AF output
(open drain)
Software break
requests: BG
tim_brk
MSv62369V1
OCRSEL[2:0]
TIMx_AF2
tim_ocref_clr7
tim_ocref_clr0
tim_ocref_clr1
tim_ocref_clr2
tim_ocref_clr3
tim_ocref_clr4
tim_ocref_clr5
tim_ocref_clr6
tim_ocref_clr_int
