High-resolution timer
(HRTIM)
RM0440
940/2126
RM0440 Rev 4
The
ADC post-scaler programming re
g
ister are prel
oaded and can
be updated on-the-fly
without stopping the timers.

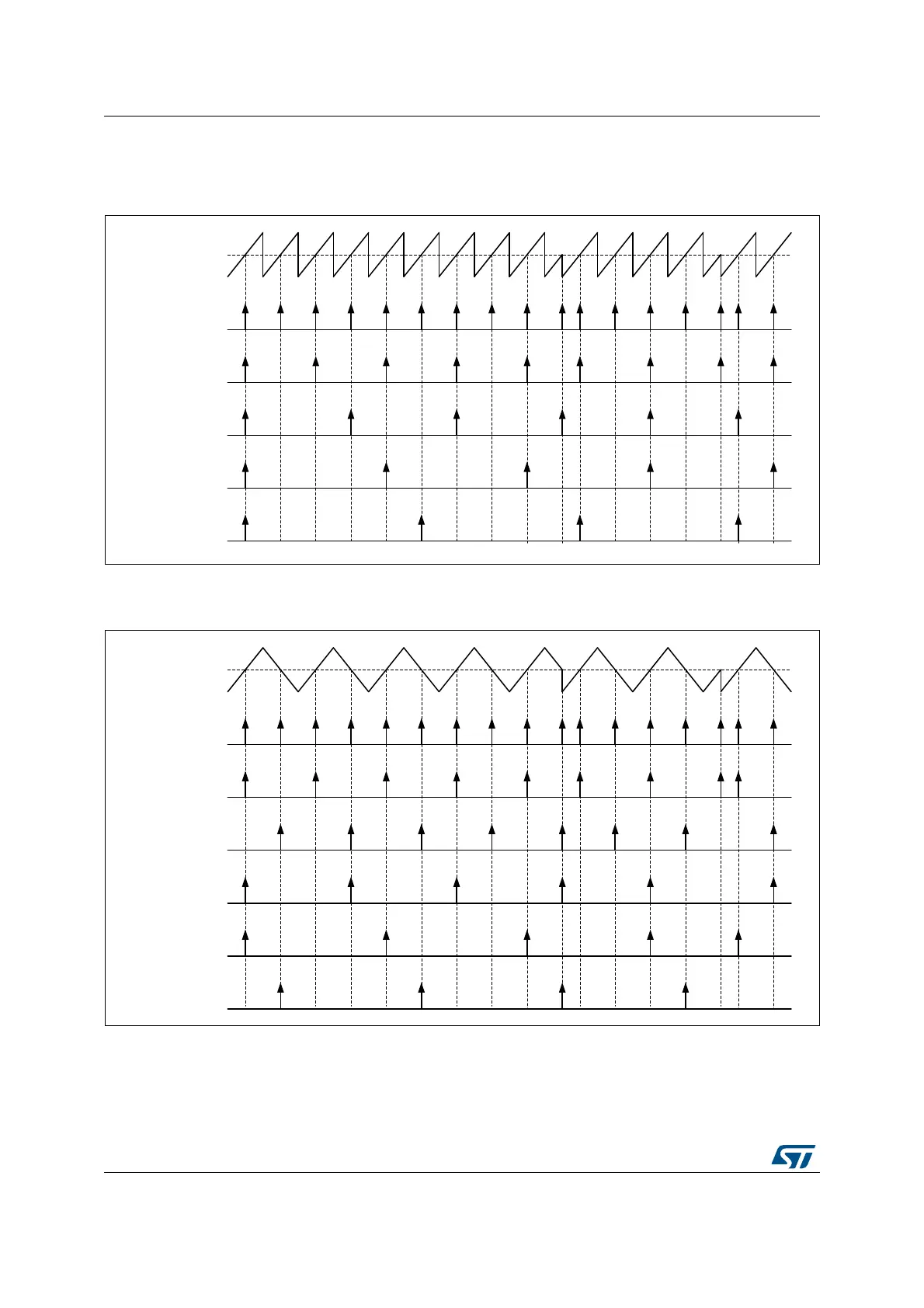

Figure 253. ADC trigger post
-scaling in up-
counting mode
Figure 254. ADC trigge
r post-scaling in
up/down count
ing mode
MSv47427V1
ADCxPSC[4:0]=0
Counter
ADCxPSC[4:0]=1
ADCxPSC[4:0]=2
ADCxPSC[4:0]=3
ADCxPSC[4:0]=4
MSv47428V1
ADCxPSC[4:0]=0
ADROM[1:0]=00
Counter
ADCxPSC[4:0]=1
ADROM[1:0]=01
ADCxPSC[4:0]=1
ADROM[1:0]=10
ADCxPSC[4:0]=3
ADROM[1:0]=00
ADCxPSC[4:0]=4
ADROM[1:0]=01
ADCxPSC[4:0]=4
ADROM[1:0]=10
