RM0440 Rev 4 1301/2126
RM0440 General-purpose timers (TIM2/TIM3/TIM4/TIM5)
1343

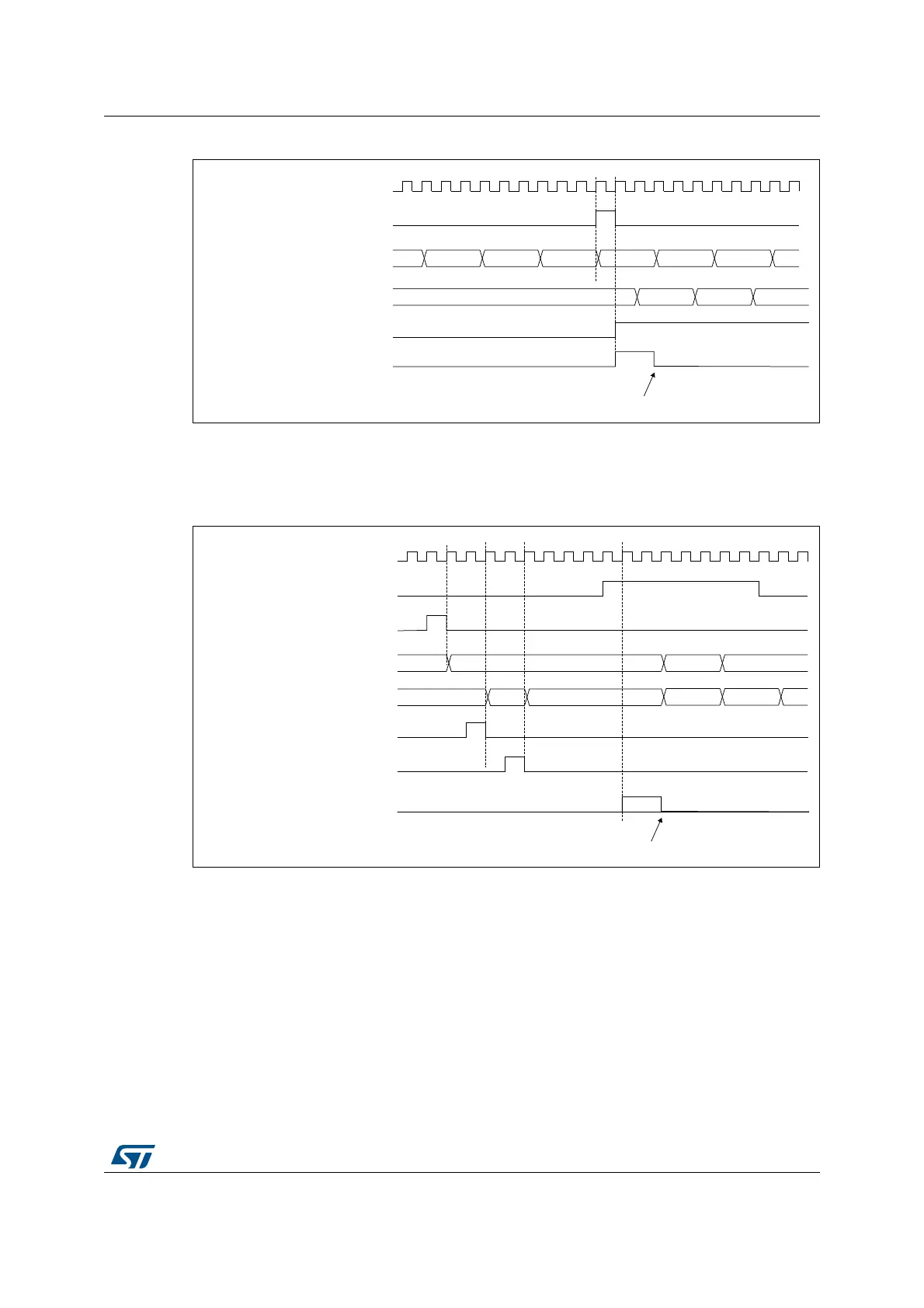

Figure 436. Triggering TIM_slv with update of TIM_mstr
As in the previous example, both counters can be initialized before starting counting.
Figure 437 shows the behavior with the same configuration as in Figure 436 but in trigger
mode instead of gated mode (SMS=110 in the TIM_slv_SMCR register).
Figure 437. Triggering TIM_slv with Enable of TIM_mstr
Starting 2 timers synchronously in response to an external trigger
In this example, we set the enable of TIM_mstr when its tim_ti1 input rises, and the enable
of TIM_slv with the enable of TIM_mstr. Refer to Figure 432 for connections. To ensure the
counters are aligned, TIM_mstr must be configured in Master/Slave mode (slave with
respect to tim_ti1, master with respect to TIM_slv):
MSv62378V1
tim_ker_ck
tim_slv_CNT
FD
tim_mst_CNT
Write TIF = 0
TIM_slv counter enable (CEN bit)
tim_slv TIF bit
FE FF 00 01 02
46 47 4845
tim_mstr UEV
event
MSv62379V1
tim_ker_ck
tim_slv_CNT
tim_mstr_CNT reset
Write TIF = 0
TIM_mst counter enable (CEN bit)
tim_slv TIF bit
E7
0200 01
E9
75
CD 00 E8 EA
tim_mstr_CNT
tim_slv_CNT reset
Tim_slv_CNT write
