STC8A8K64D4 Series Manual

- 688 -

6. During the simulation process, the viewing of the register

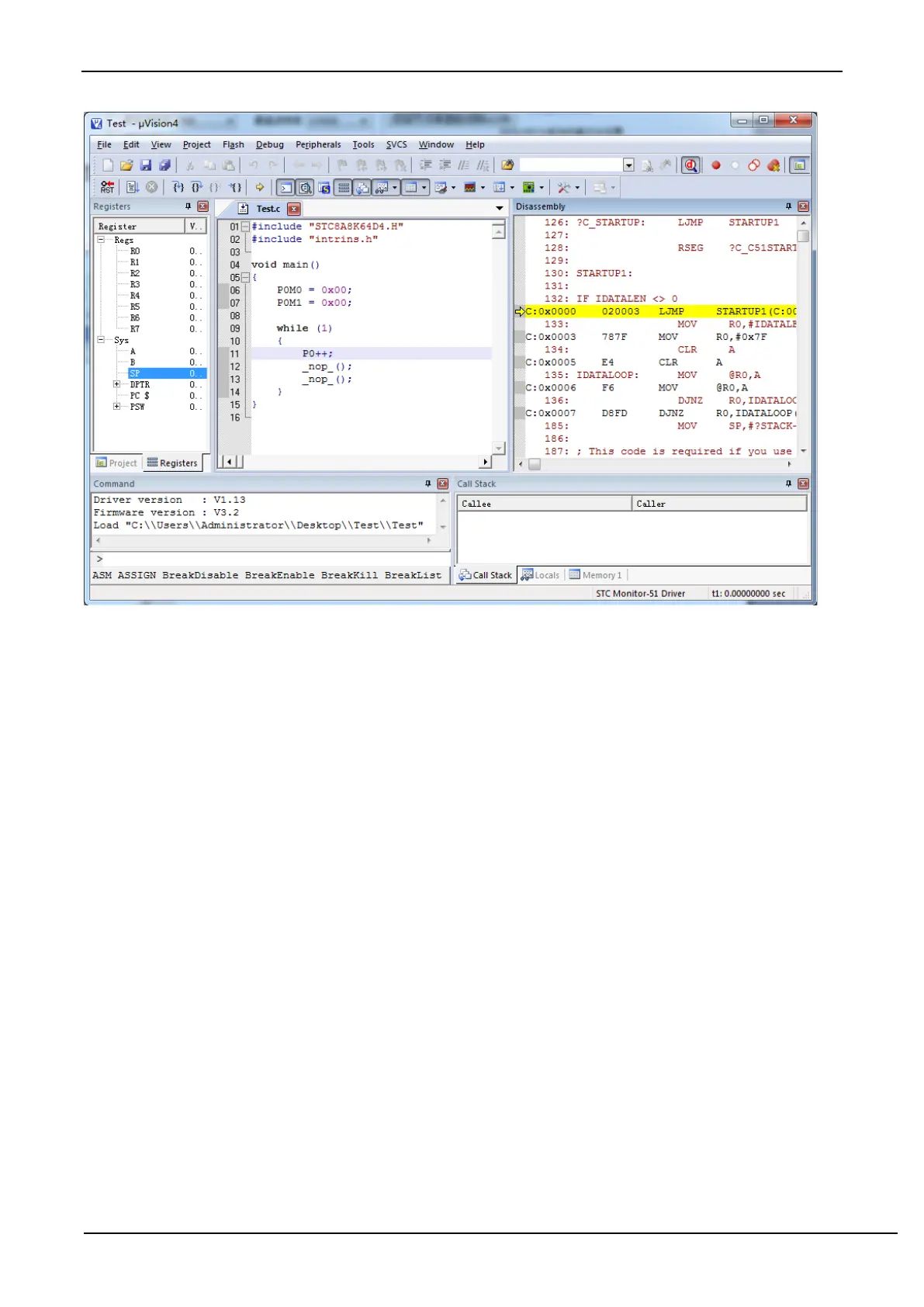

During the simulation process, you can view the MCU-related registers. All registers are listed at the bottom of the

"Debug" menu. As shown below:
