175
4 Adjusting knitting machine
4.2 Advanced adjustments
6. Form a "needle cross".
For that purpose slide several needles of the front needle bed upward,
slide also the opposite needles of the rear needle bed upward.
The needles form the so-called "needle cross".
7. Check the position of the yarn carrier tip.
For that purpose move the yarn carrier manually into the "needle cross"
and check the adjustment.
8. The adjustment is correct if the yarn carrier tip is located exactly
vertically above the crossing point of the front and rear needles.
- or -
➜ If this is not the case, you must center the yarn carrier tip [ 176].

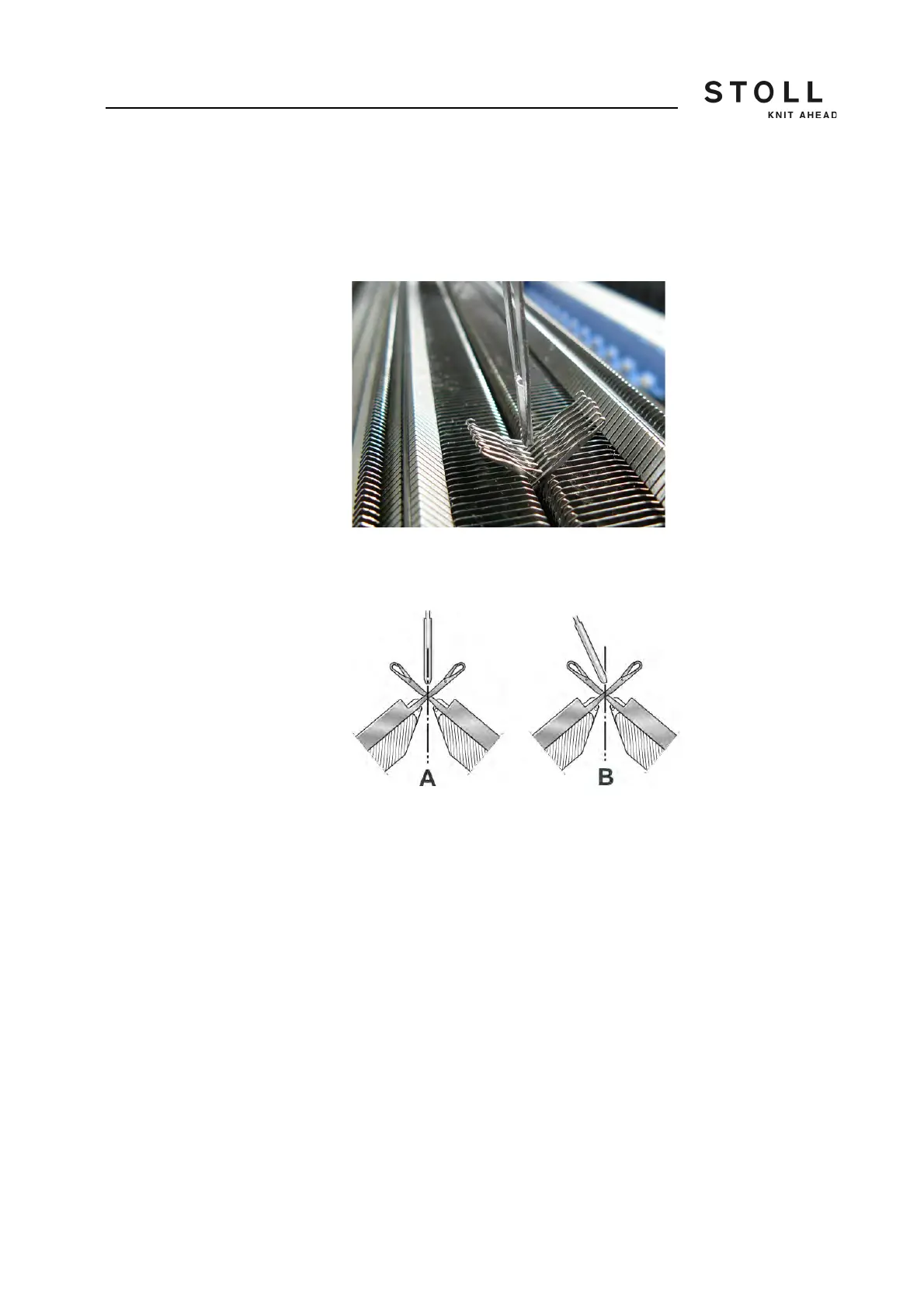

Position of the yarn carrier tip:
A Inner yarn carrier (track 7, 8 or 9)
B Outer yarn carrier (track 1, 2, 15 or 16)
